Anticlastic Shells Configuration Based on Support Polygon Attributes

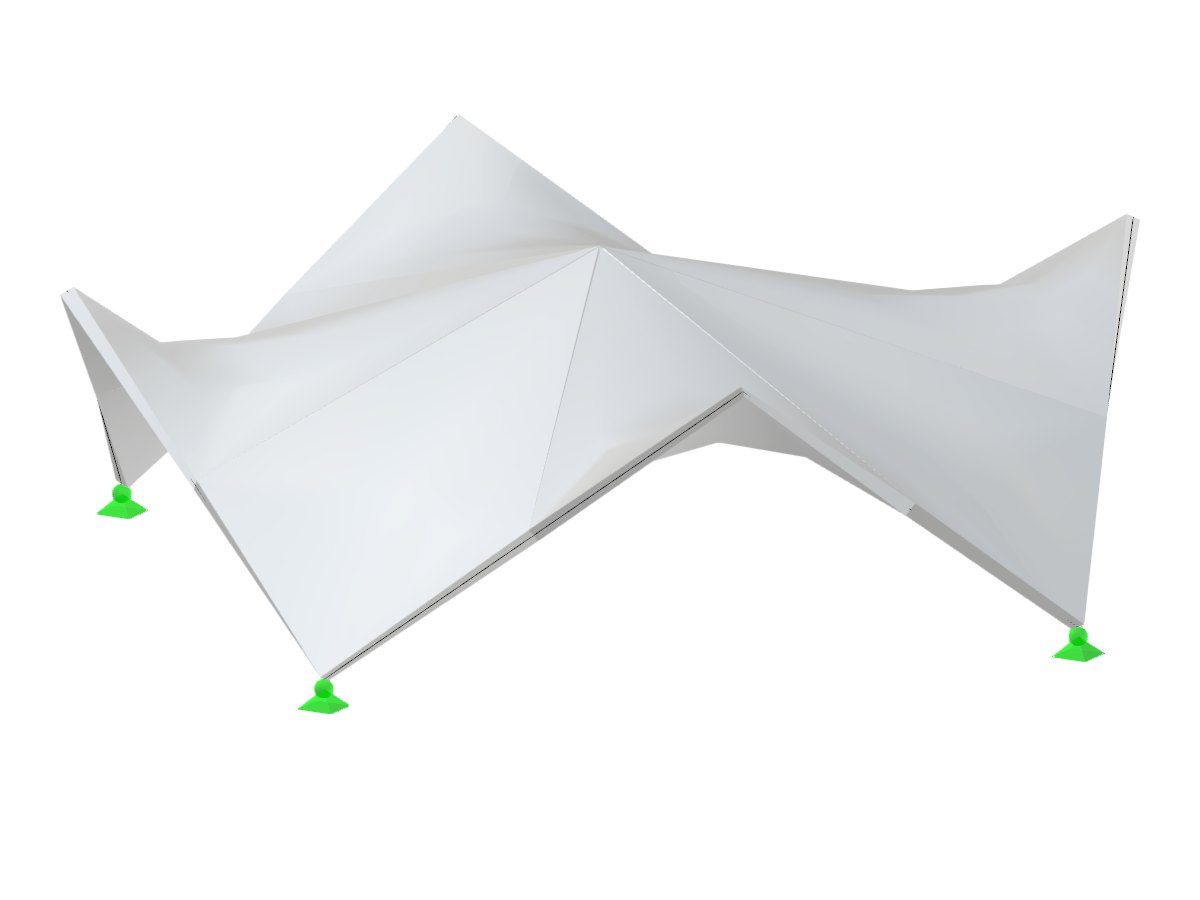

Anticlastic shells are shown with configurations based on the number of polygon sides, length, and height adjustments.
The image illustrates anticlastic shell structures characterized by their input parameters: the number of sides of the support polygon, its length, and height. This configuration method allows for varying geometrical setups, providing a unique approach to designing these structures.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 17 |
| Number of Lines | 24 |
| Number of Members | 0 |
| Number of Surfaces | 8 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 10.005 tons |
| Dimensions (Metric) | 7.071 x 2.000 x 7.071 m |
| Dimensions (Imperial) | 23.2 x 6.56 x 23.2 feet |
