Parametric Modeling Triangular Prism
3D model of a triangular prism with adjustable parameters using JavaScript, featuring angle or offset-based inputs.

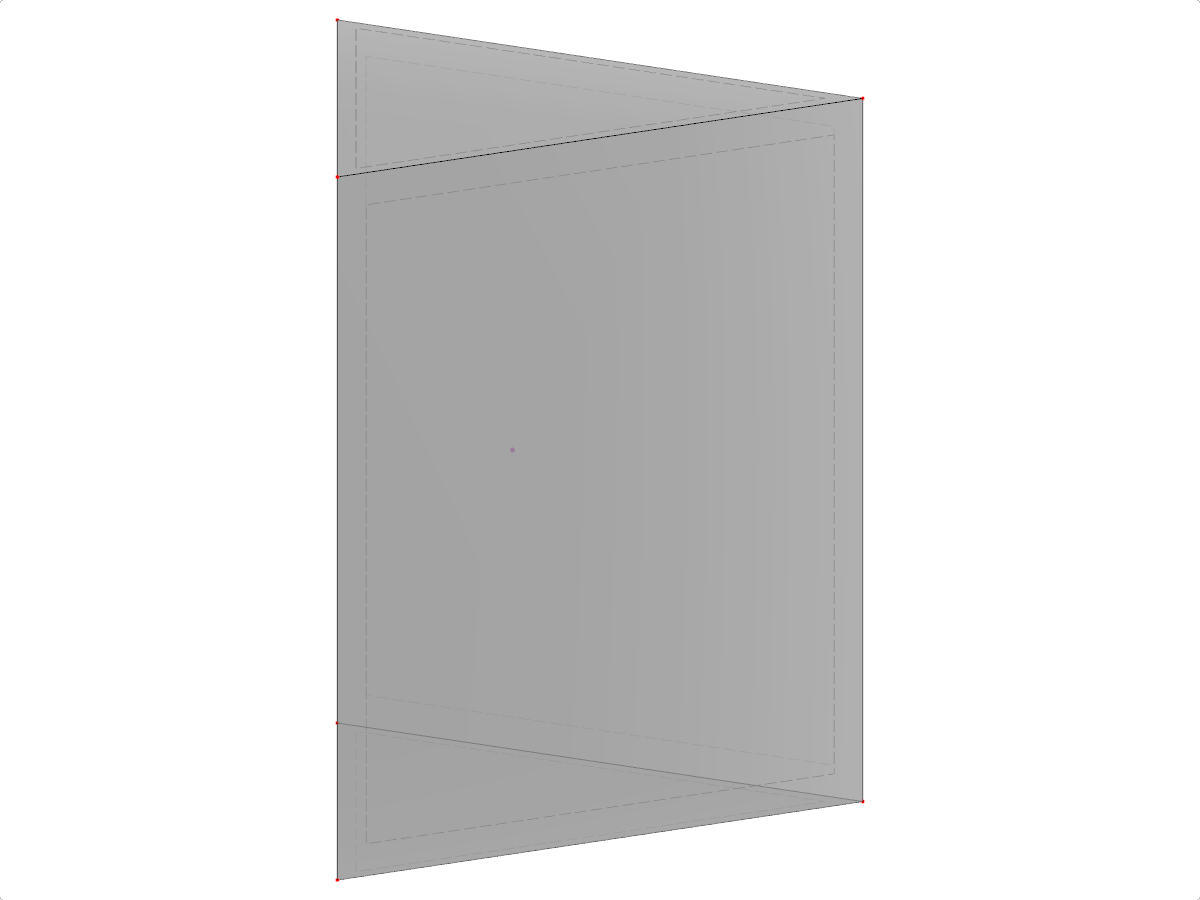

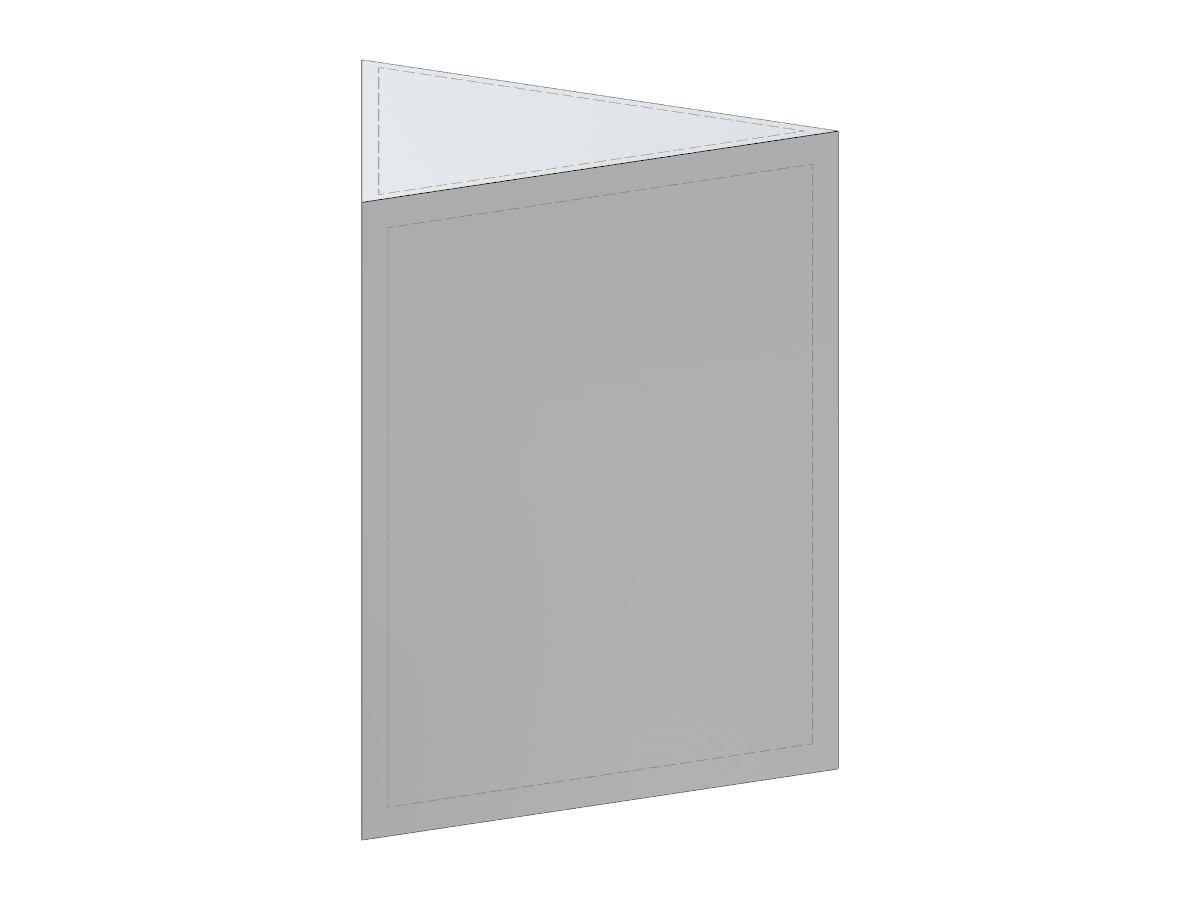

The image shows a 3D model of a triangular prism that includes a parametric JavaScript block for input adjustments. The model allows for modifications based on angle or offset parameters, enabling precise geometric configurations.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 9 |
| Number of Members | 0 |
| Number of Surfaces | 5 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 162.380 tons |
| Dimensions (Metric) | 5.000 x 6.000 x 4.330 m |
| Dimensions (Imperial) | 16.4 x 19.69 x 14.21 feet |
