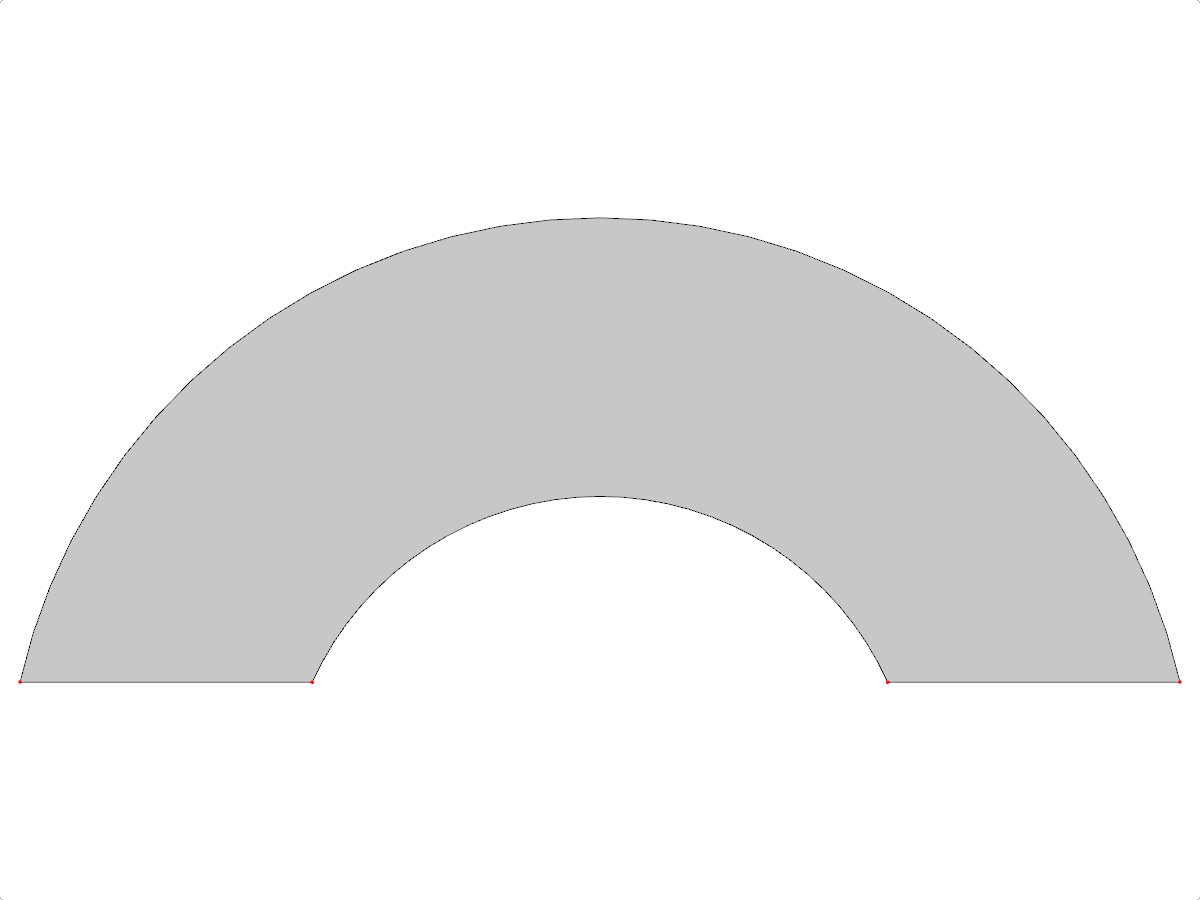

Circular Arch Segment Surface
Circular arch segment with highlighted surface geometry and structural analysis data.
The image displays a circular arch segment with detailed visualization of its surface geometry and structural properties. The focus is on the analysis of the curved structure, showcasing its application in engineering design. The portrayal includes both graphical elements and numerical data relevant to structural integrity and performance assessment. This serves as a demonstrative model for conceptual and computational understanding in architectural and engineering contexts.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 4 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.353 tons |
| Dimensions (Metric) | 6.245 x 0.000 x 2.500 m |
| Dimensions (Imperial) | 20.49 x 0 x 8.2 feet |
