Rectangular Slab with Circular Cutout Design
Analysis of a rectangular concrete slab featuring a central circular opening to study structural behavior and stress distribution.

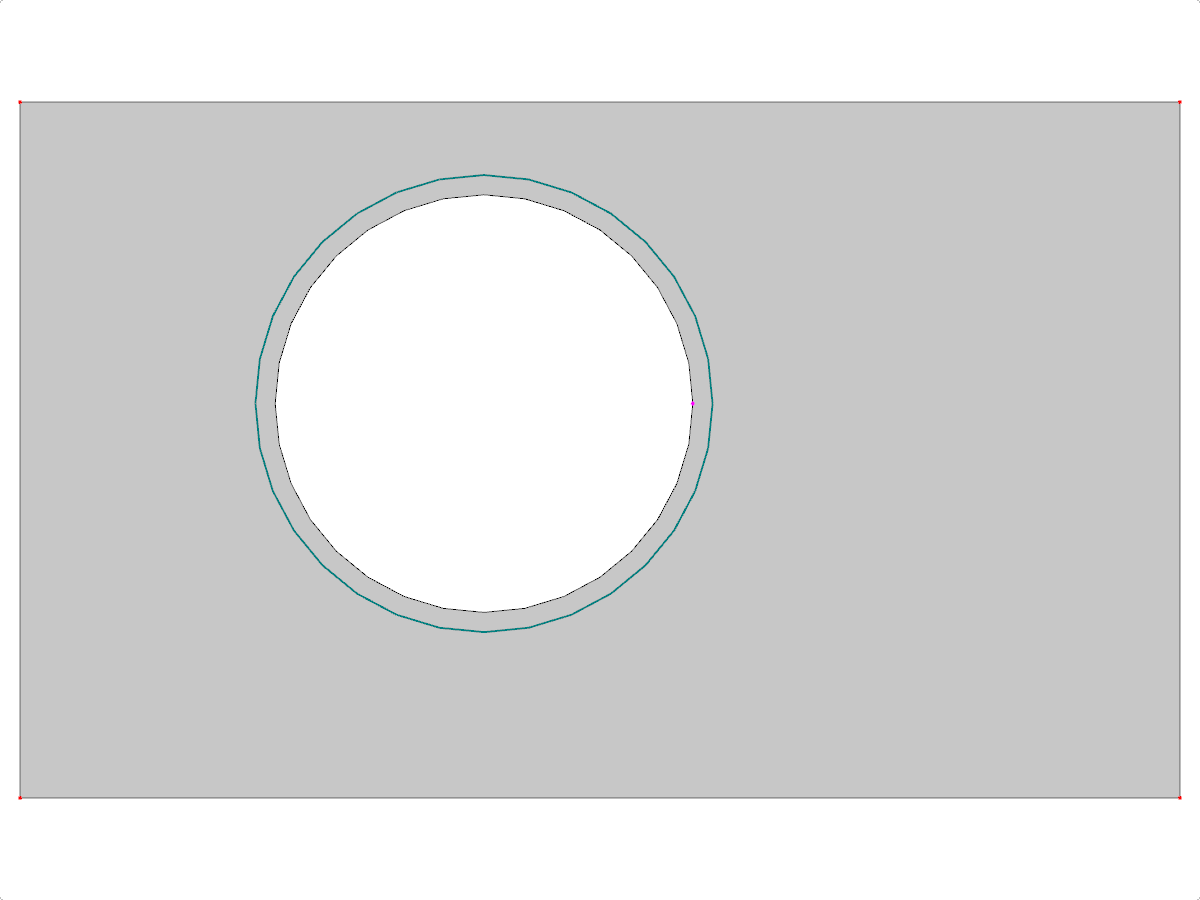

The image depicts a rectangular concrete slab with a central circular opening. The slab's structure is analyzed for stress distribution and load-bearing capacity. This type of configuration is typically used to accommodate utilities or mechanical installations in construction.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 5 |
| Number of Lines | 5 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3.114 tons |
| Dimensions (Metric) | 5.000 x 0.000 x 3.000 m |
| Dimensions (Imperial) | 16.4 x 0 x 9.84 feet |
