Rectangular Slab with Elliptical Opening Design
Rectangular slab featuring an elliptical opening designed for optimal structural performance and innovative architecture.

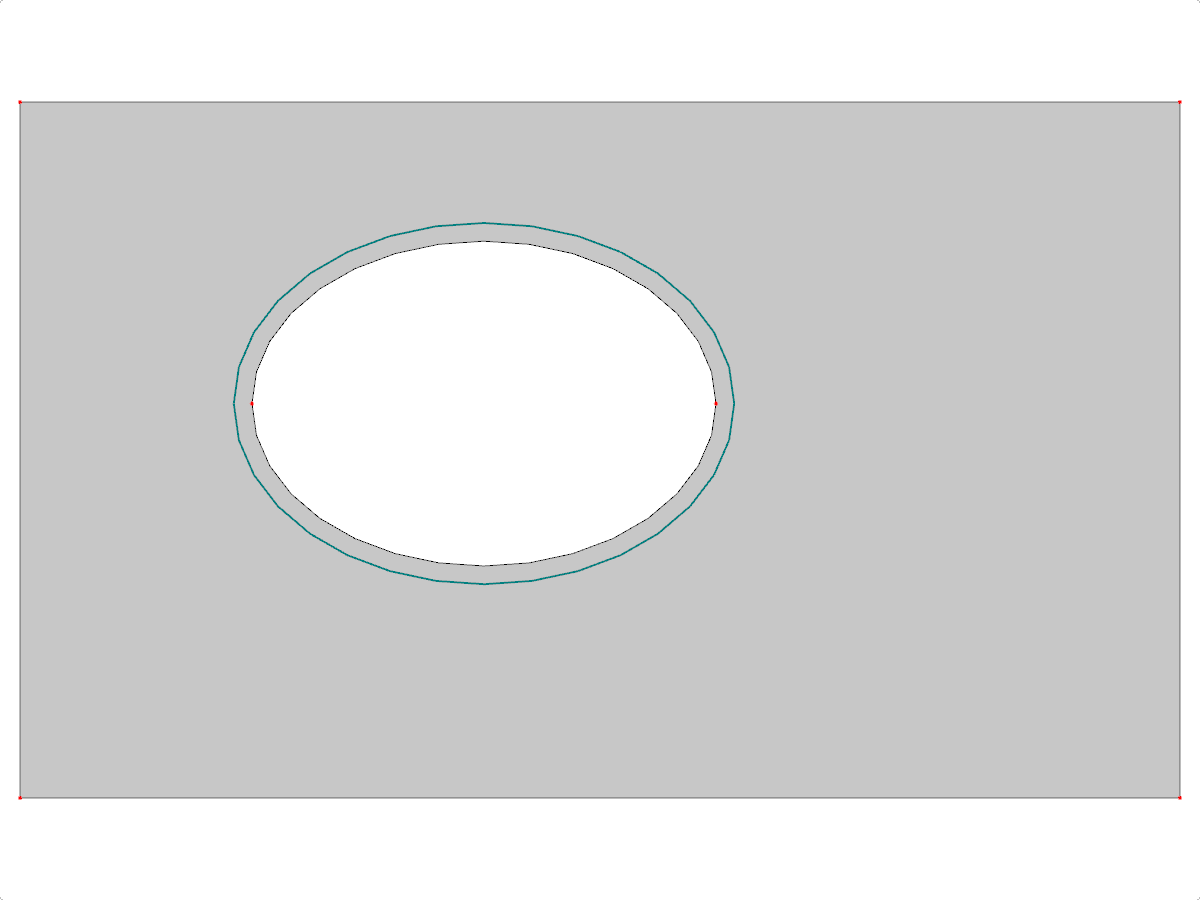

The image shows a rectangular slab with a notable elliptical opening. This design may be used in applications requiring specific architectural aesthetics or certain light and airflow characteristics, posing unique structural challenges. Such designs are often implemented using advanced modeling for accurate stress analysis and load distribution.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3.200 tons |
| Dimensions (Metric) | 5.000 x 0.000 x 3.000 m |
| Dimensions (Imperial) | 16.4 x 0 x 9.84 feet |
