Steel Silo with Spherical Cap Roof

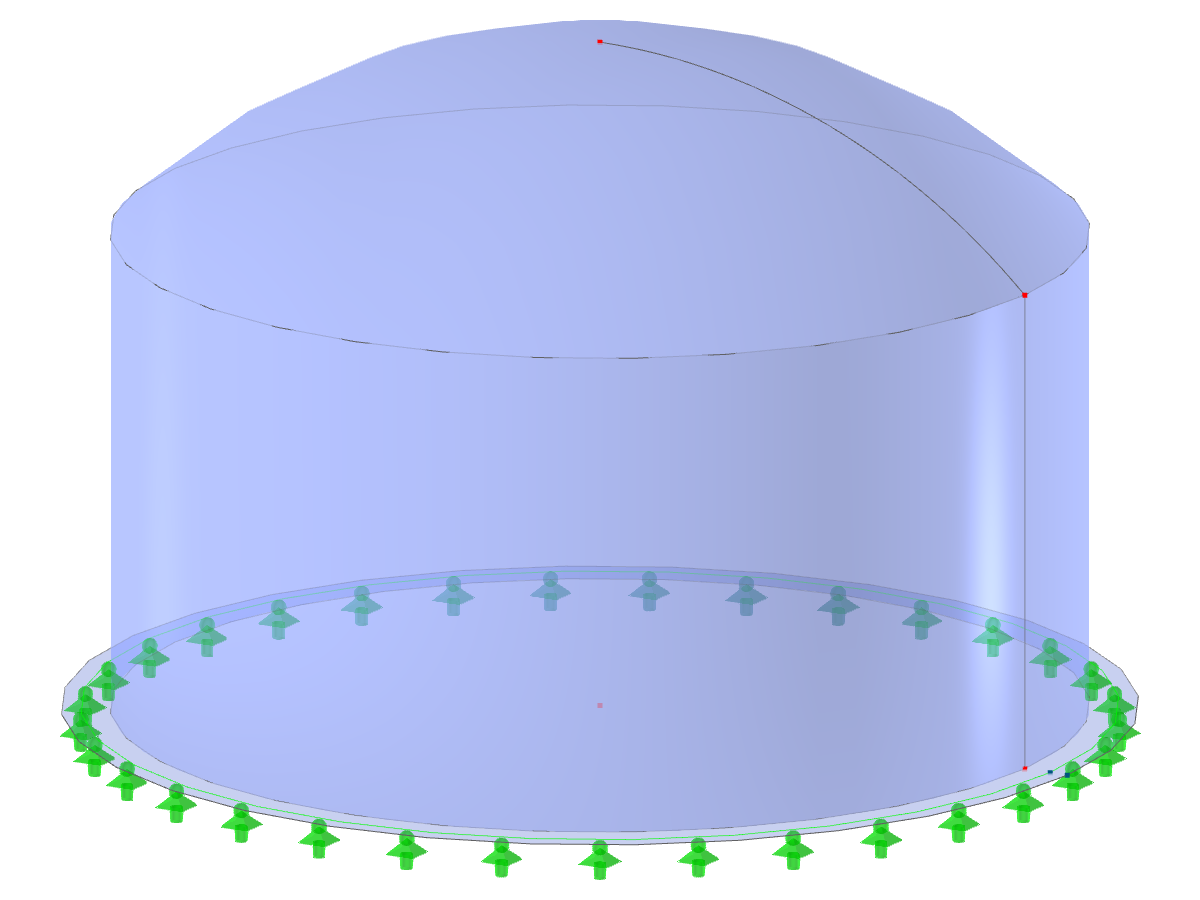

Steel silo with a circular plan and a spherical cap roof, showcasing structural design and engineering details.

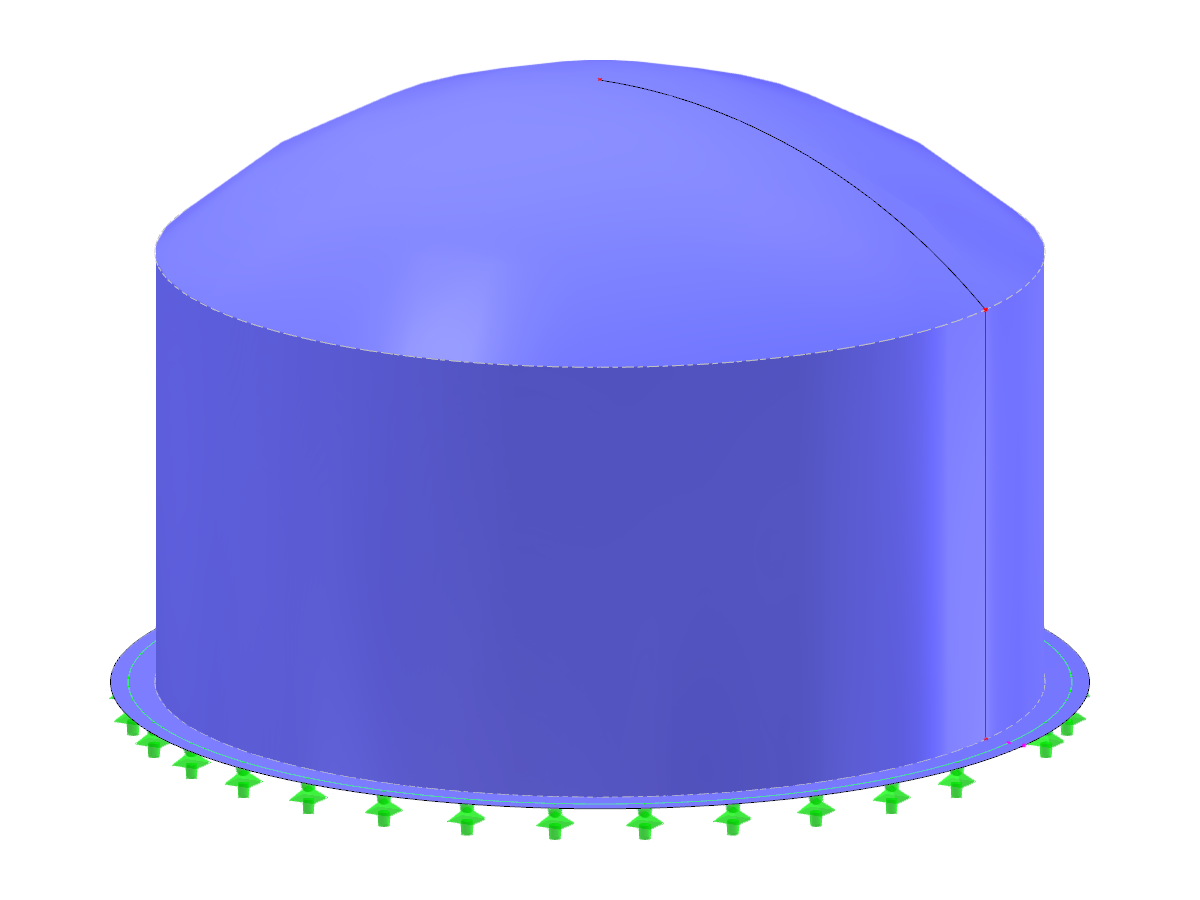

The image depicts a steel silo characterized by its circular plan and a spherical cap roof. This design showcases its use in storage applications possibly for bulk materials, emphasizing the importance of its structural integrity. The spherical cap roof is key to efficient load distribution and design aesthetics in industrial buildings.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 6 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 73.985 tons |
| Dimensions (Metric) | 11.000 x 7.000 x 11.000 m |
| Dimensions (Imperial) | 36.09 x 22.97 x 36.09 feet |
