IBB011 | Inverted Bowstring Beam

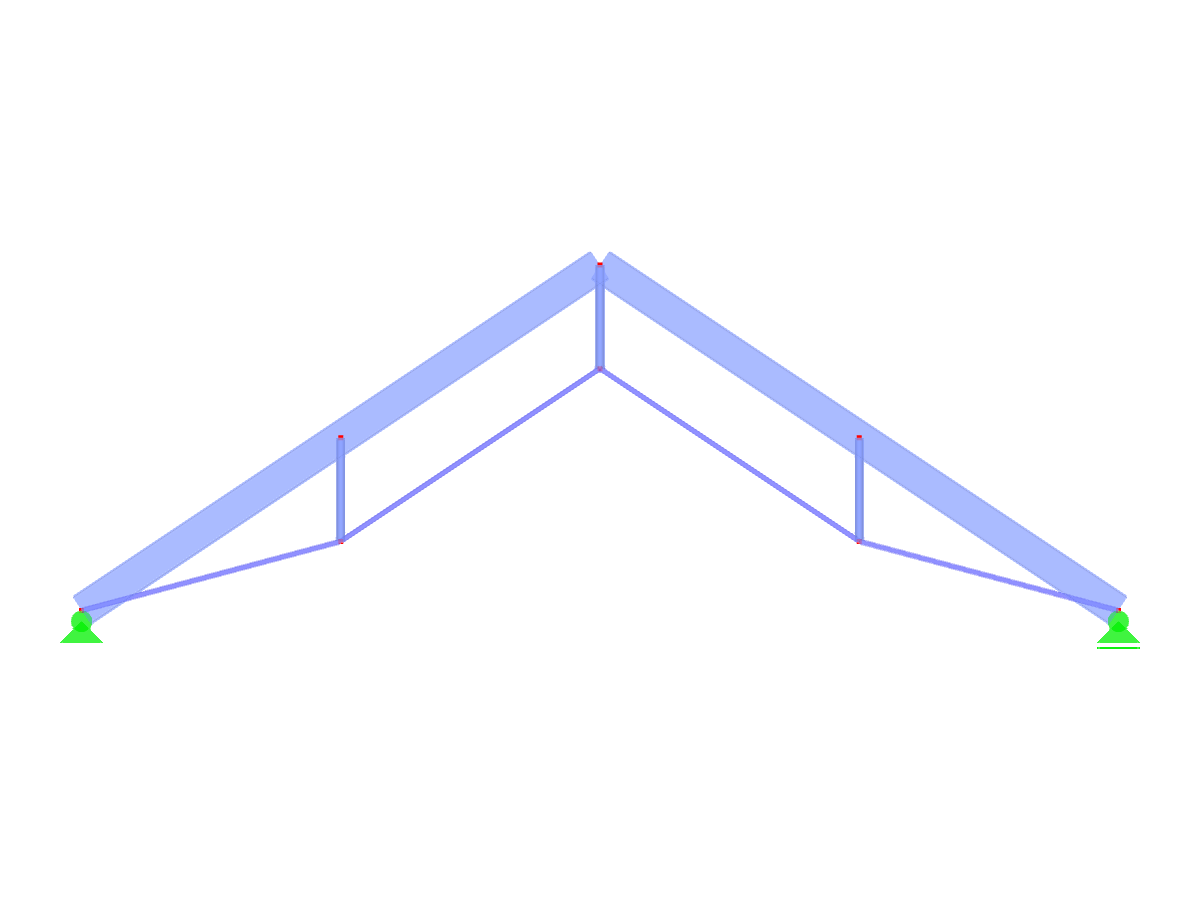

Model ID 2844 | IBB011 | Inverted Bowstring Beam
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 11 |
| Number of Members | 11 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.193 tons |
| Dimensions (Metric) | 6,000 x 2,000 x 0,000 m |
| Dimensions (Imperial) | 19.69 x 6.56 x 0 feet |
