ARS001p | Arched Beam | Intersecting | Parabolic

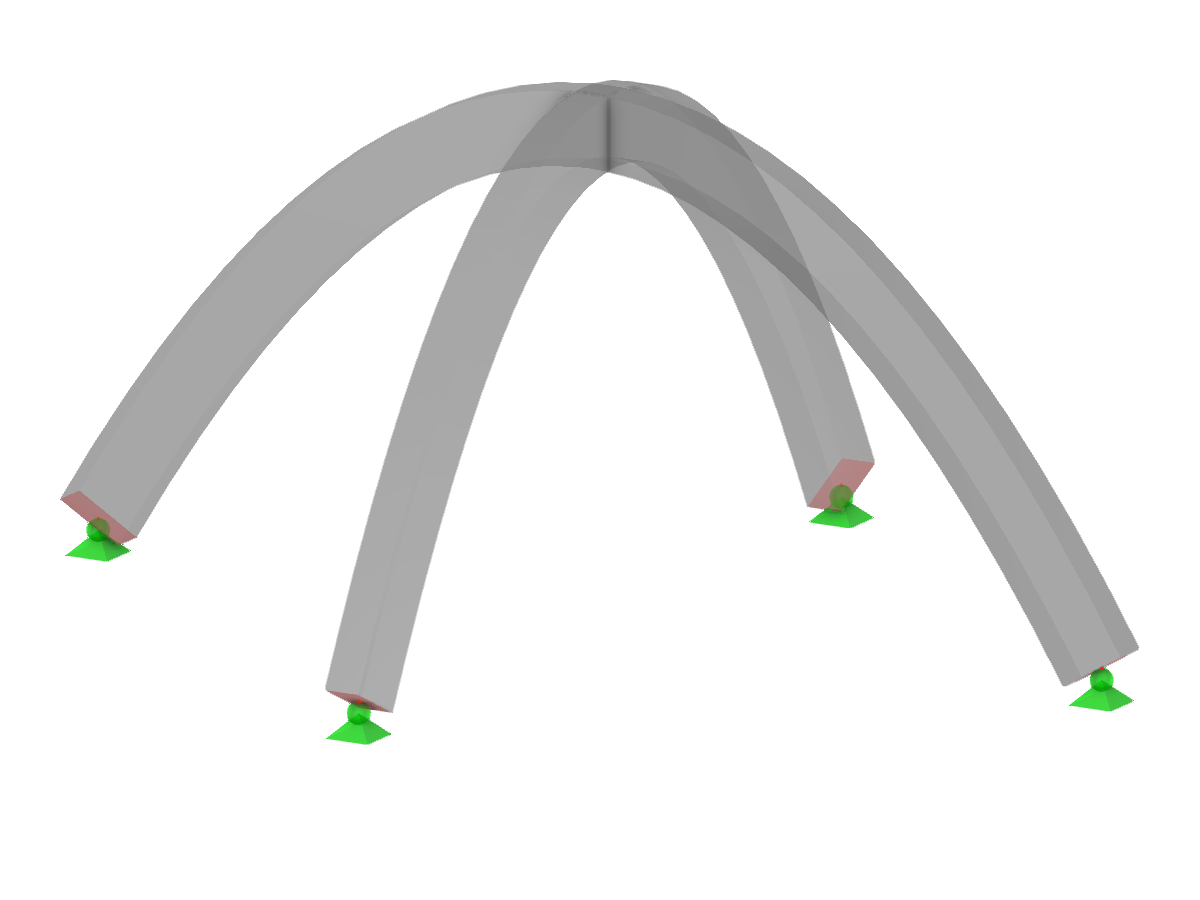

Model ID 3210 | ARS001p | Arched Beam | Intersecting | Parabolic
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3.107 tons |
| Dimensions (Metric) | 6,000 x 2,500 x 5,000 m |
| Dimensions (Imperial) | 19.69 x 8.2 x 16.4 feet |
