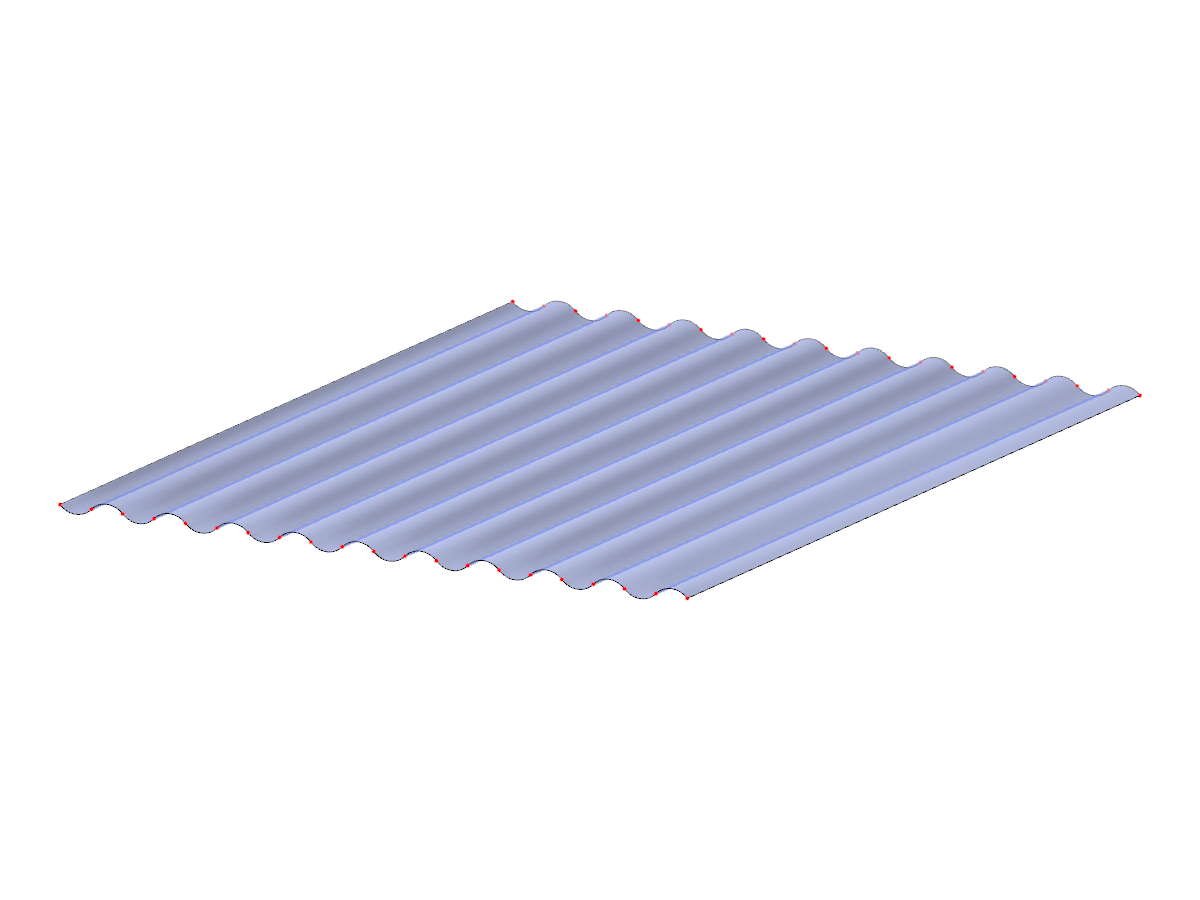

Corrugated Metal Sheet with Arc Design

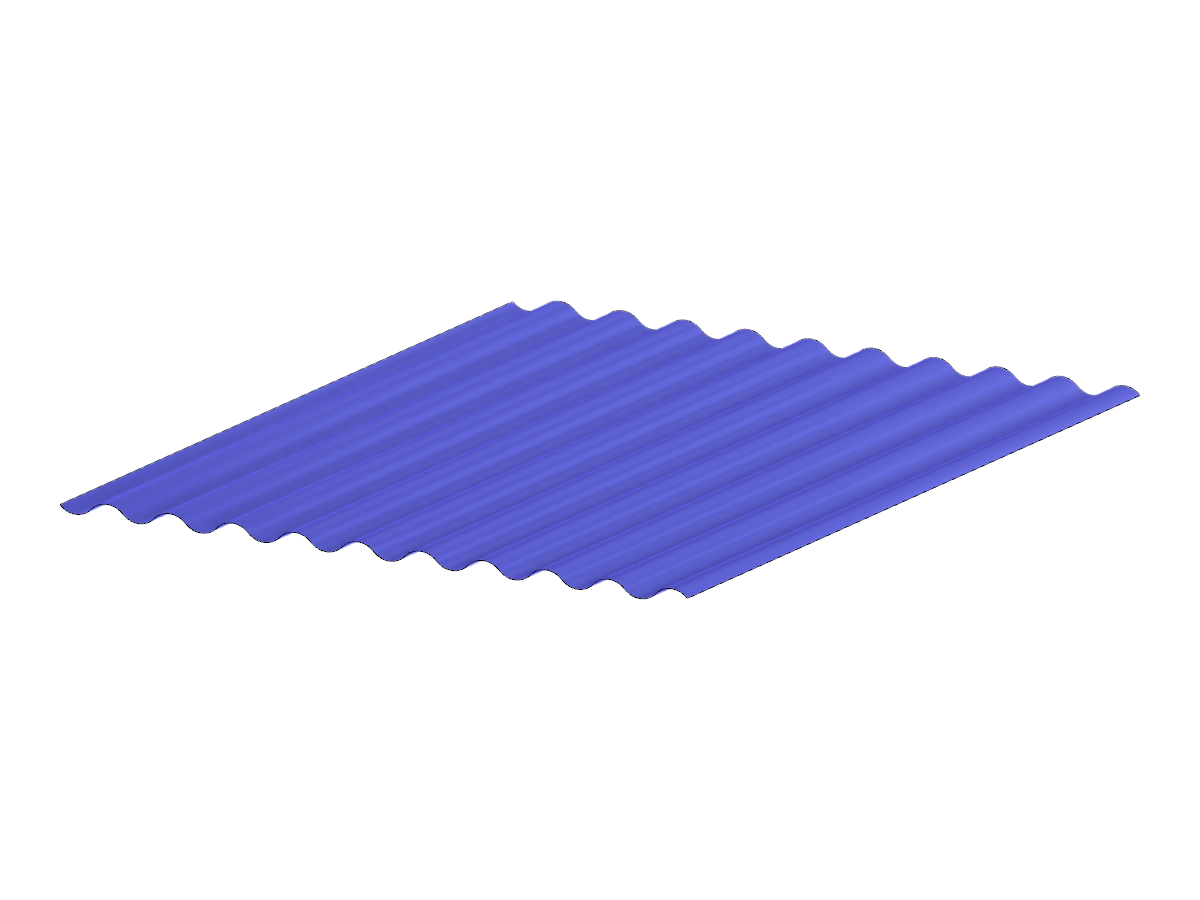

Corrugated metal sheet featuring an architectural design with curves created by arcs.
The image shows a corrugated metal sheet characterized by an architectural pattern of curves formed by arcs. This design presents a visually dynamic and structurally efficient configuration, commonly used in modern construction for roofing and wall panels.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 42 |
| Number of Lines | 42 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.063 tons |
| Dimensions (Metric) | 2.400 x 0.050 x 3.000 m |
| Dimensions (Imperial) | 7.87 x 0.16 x 9.84 feet |
