Concrete Slab Divided into Nine Segments

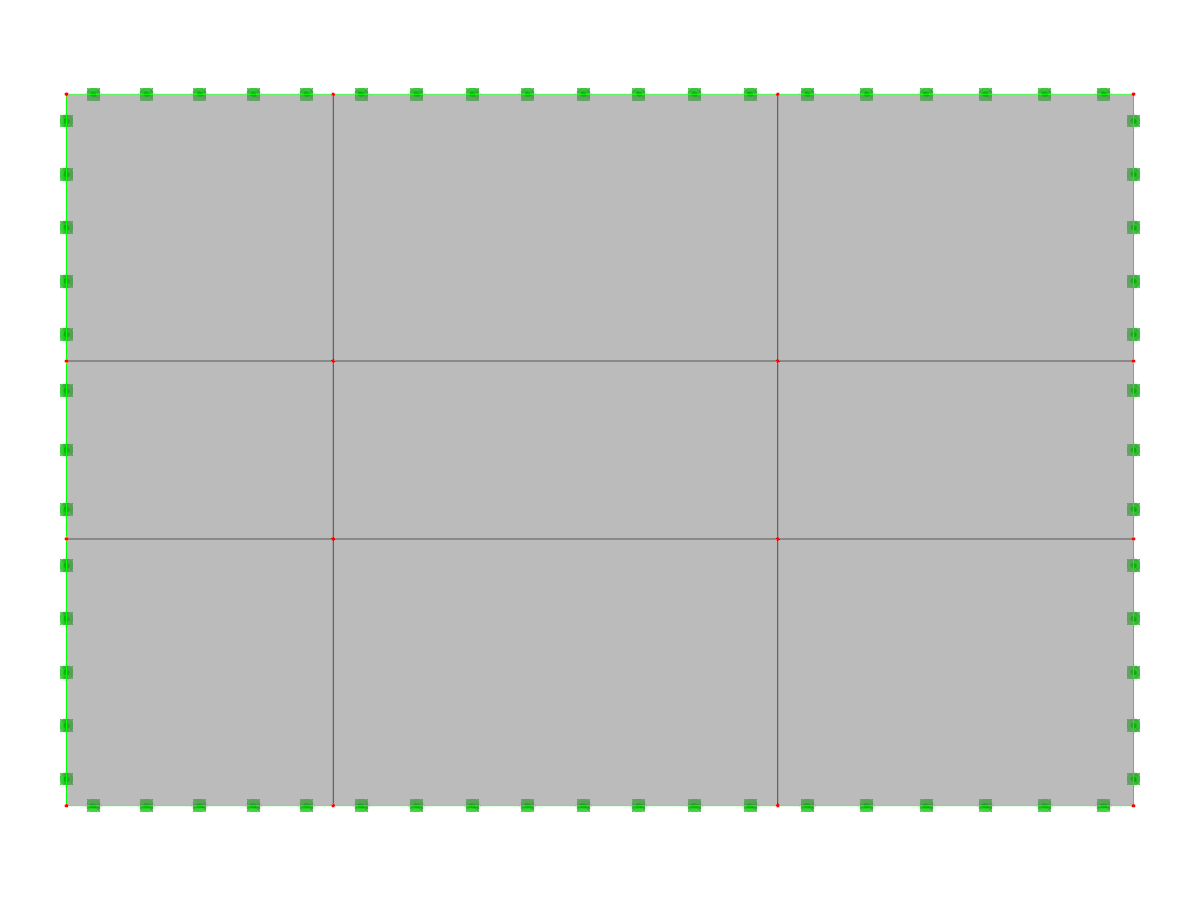

This image shows a concrete slab divided into nine distinct parts, possibly part of a construction analysis or design evaluation.
The image depicts a concrete slab divided into nine separate sections. Each part may represent a subdivided area in structural analysis. The uniform segmentation suggests a methodical approach to structural design evaluation. The layout assists in understanding load distribution and stress points in the construction process.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 16 |
| Number of Lines | 24 |
| Number of Members | 0 |
| Number of Surfaces | 9 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 24.000 tons |
| Dimensions (Metric) | 12.000 x 0.000 x 8.000 m |
| Dimensions (Imperial) | 39.37 x 0 x 26.25 feet |
