Parametric Single-Cell Box Girder Section
A parametric single-cell box girder section defined as a block in RSECTION for structural analysis and design.

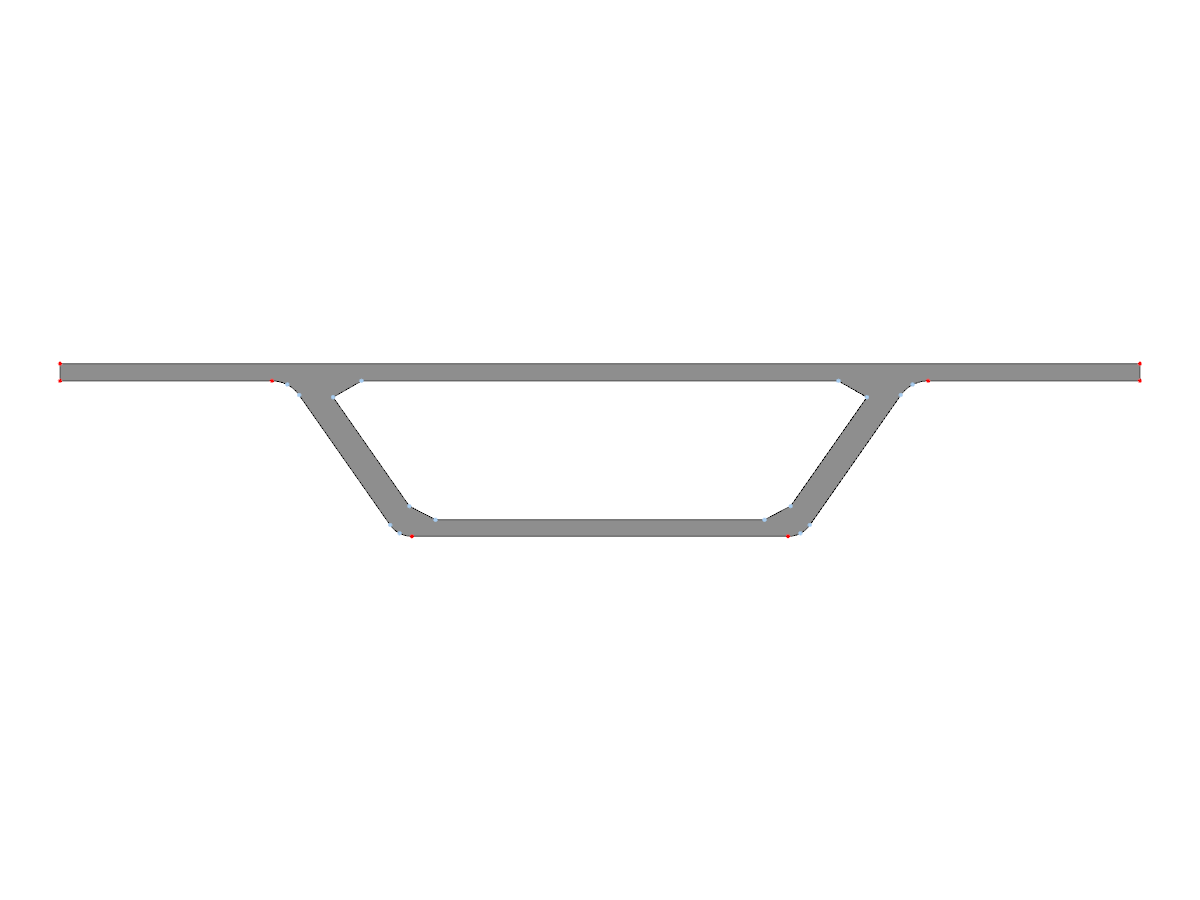

The image displays a parametric model of a single-cell box girder cross-section. This geometry is created using the "Parametric Block" feature in the RSECTION application. RSECTION allows users to define arbitrary thin-walled or solid cross-sections by specifying the coordinates of key points. The software automatically calculates all relevant section properties required for structural analysis in RFEM or RSTAB.
