BG005 | Beam Grillage

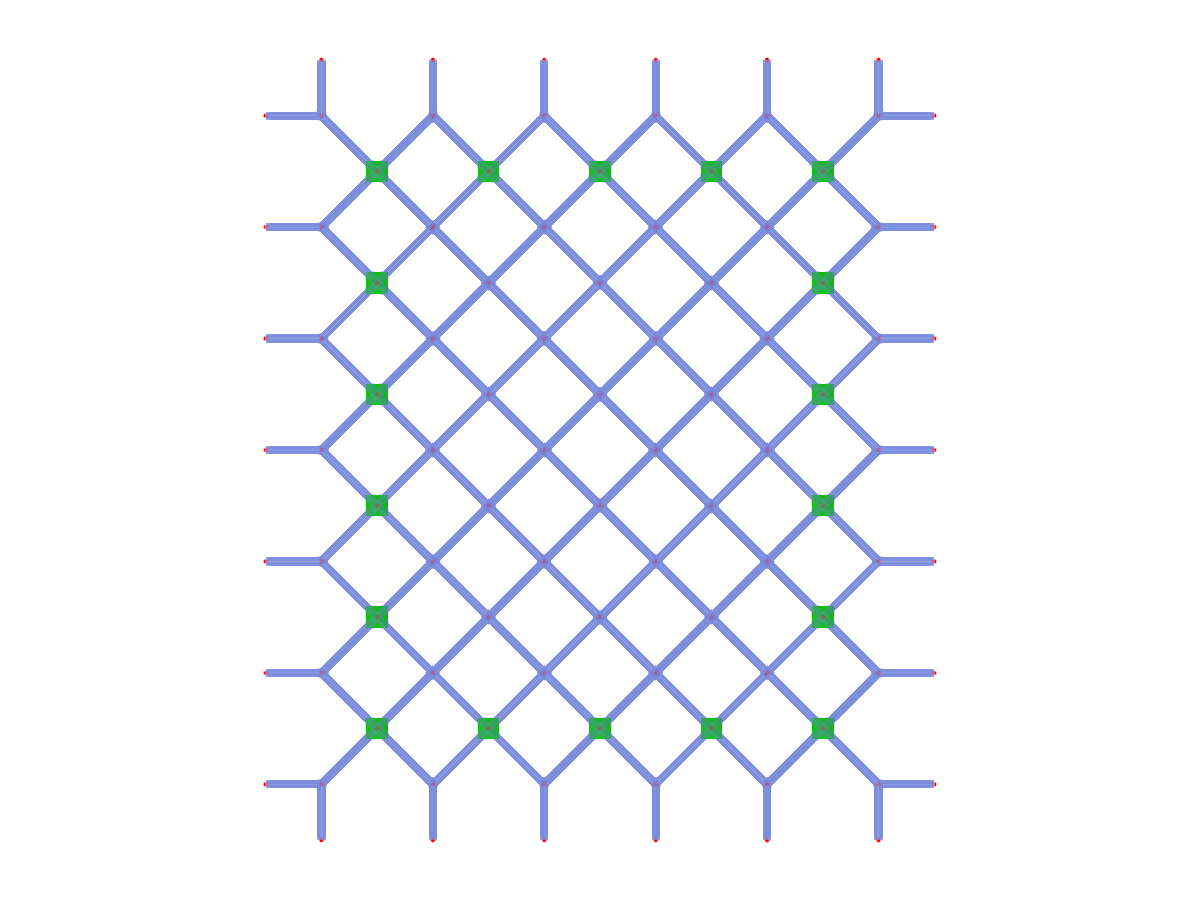

Model ID 3257 | BG005 | Beam Grillage
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 98 |
| Number of Lines | 146 |
| Number of Members | 146 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 8.265 tons |
| Dimensions (Metric) | 12,000 x 0,000 x 14,000 m |
| Dimensions (Imperial) | 39.37 x 0 x 45.93 feet |
