FTS008 | Cantilevered Free-Span Structure | Trusses with Cantilevered Ends

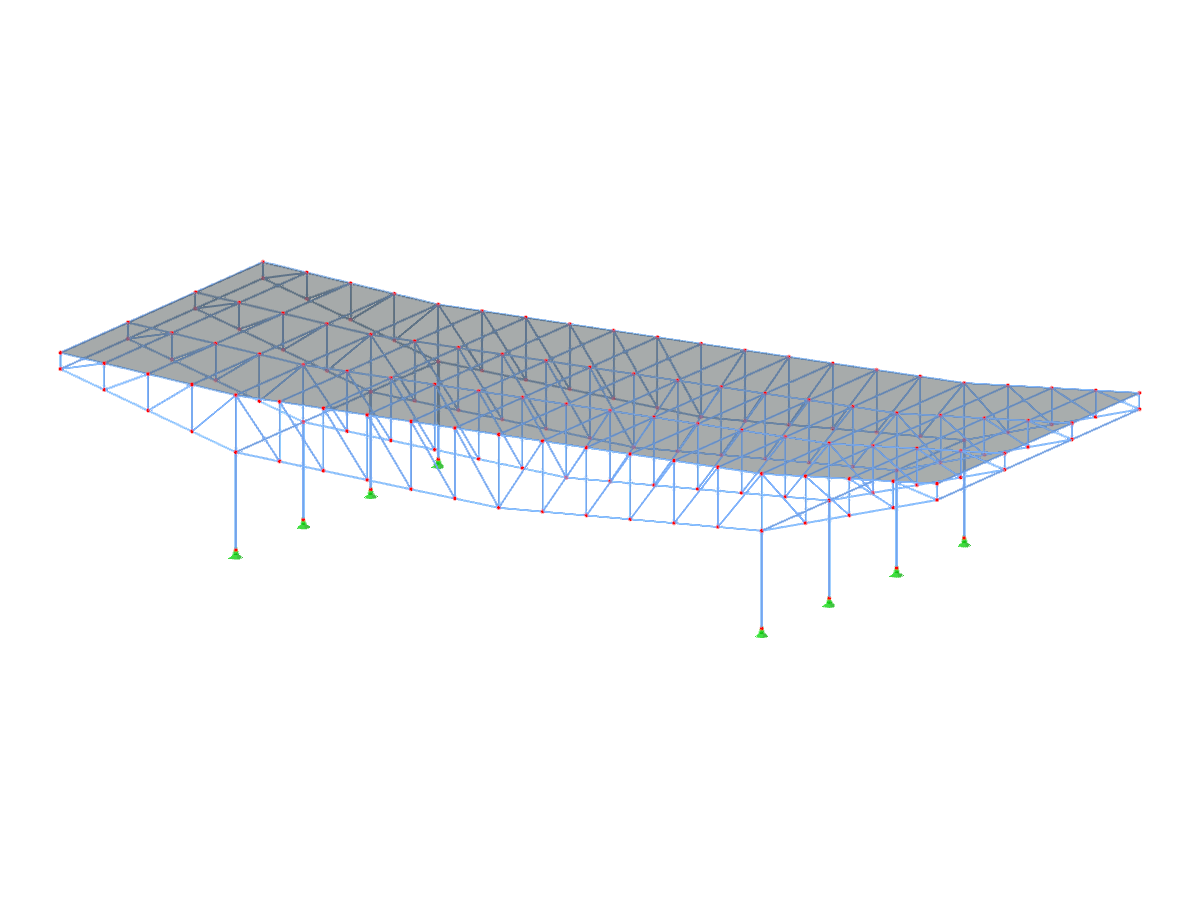

Model ID 3503 | FTS008 | Cantilevered Free-Span Structure | Trusses with Cantilevered Ends
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 176 |
| Number of Lines | 407 |
| Number of Members | 407 |
| Number of Surfaces | 9 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 21.731 tons |
| Dimensions (Metric) | 60,000 x 10,500 x 24,000 m |
| Dimensions (Imperial) | 196.85 x 34.45 x 78.74 feet |
