Cantilever Beam with I-Profile

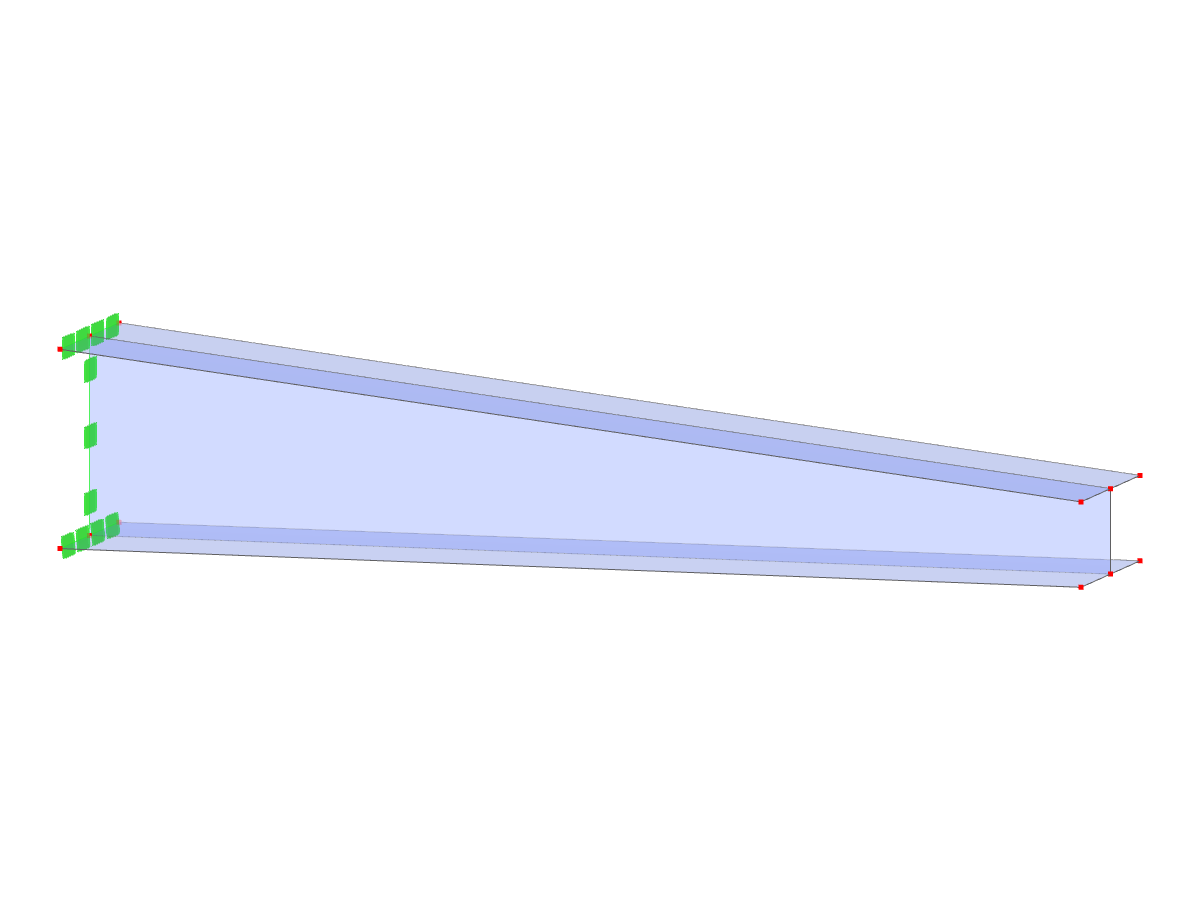

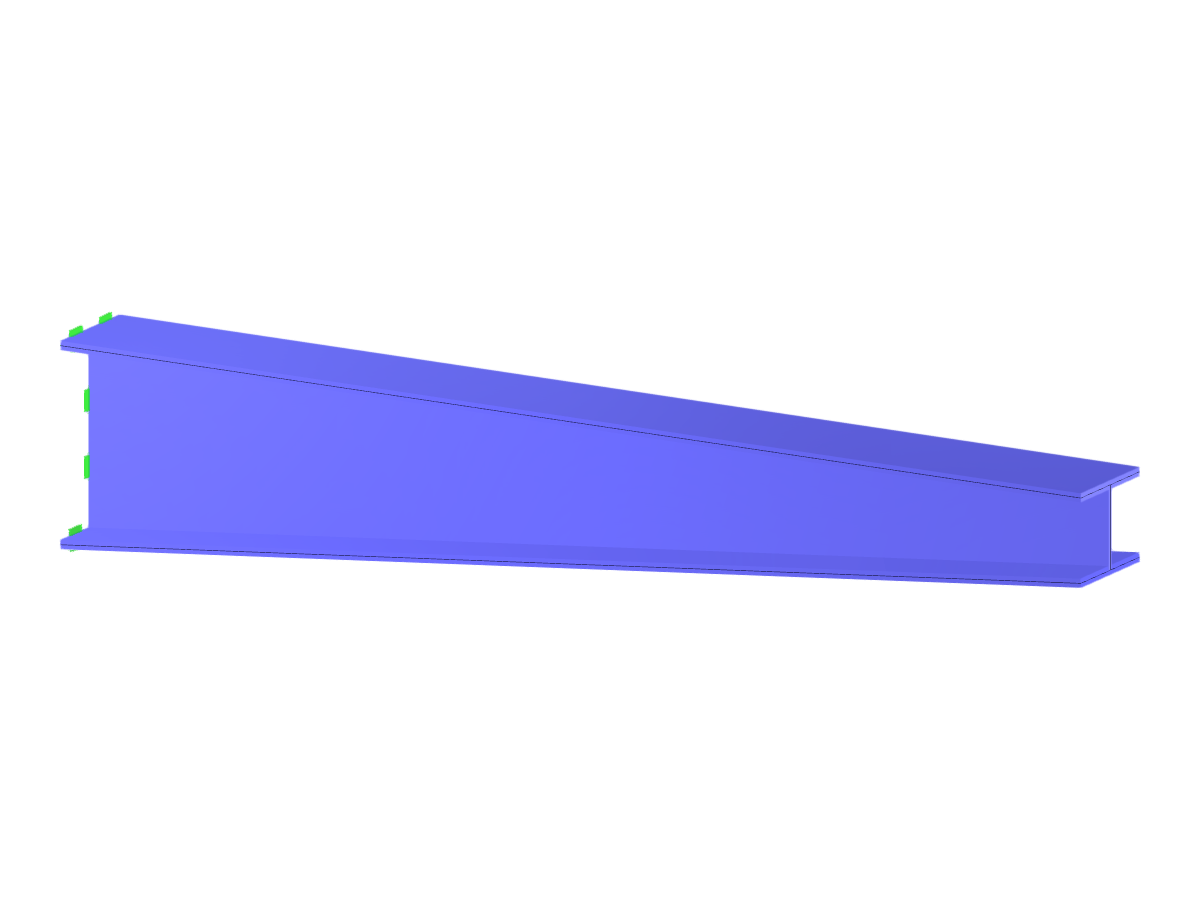

Cantilever beam created using surfaces with I-profile configuration in a structural analysis software.
The image displays a cantilever beam designed with an I-profile created using surface modeling techniques. The model demonstrates the structural properties and behavior of the cantilever under specific conditions. It likely highlights the stress distribution and deformation patterns typical for such a structural element. No additional context details or background are provided within the image itself.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 12 |
| Number of Lines | 16 |
| Number of Members | 0 |
| Number of Surfaces | 5 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.140 tons |
| Dimensions (Metric) | 2,000 x 0,350 x 0,200 m |
| Dimensions (Imperial) | 6.56 x 1.15 x 0.66 feet |
