CTS011 | Cantilever | Surfaces | T-Profile | Opening in Web

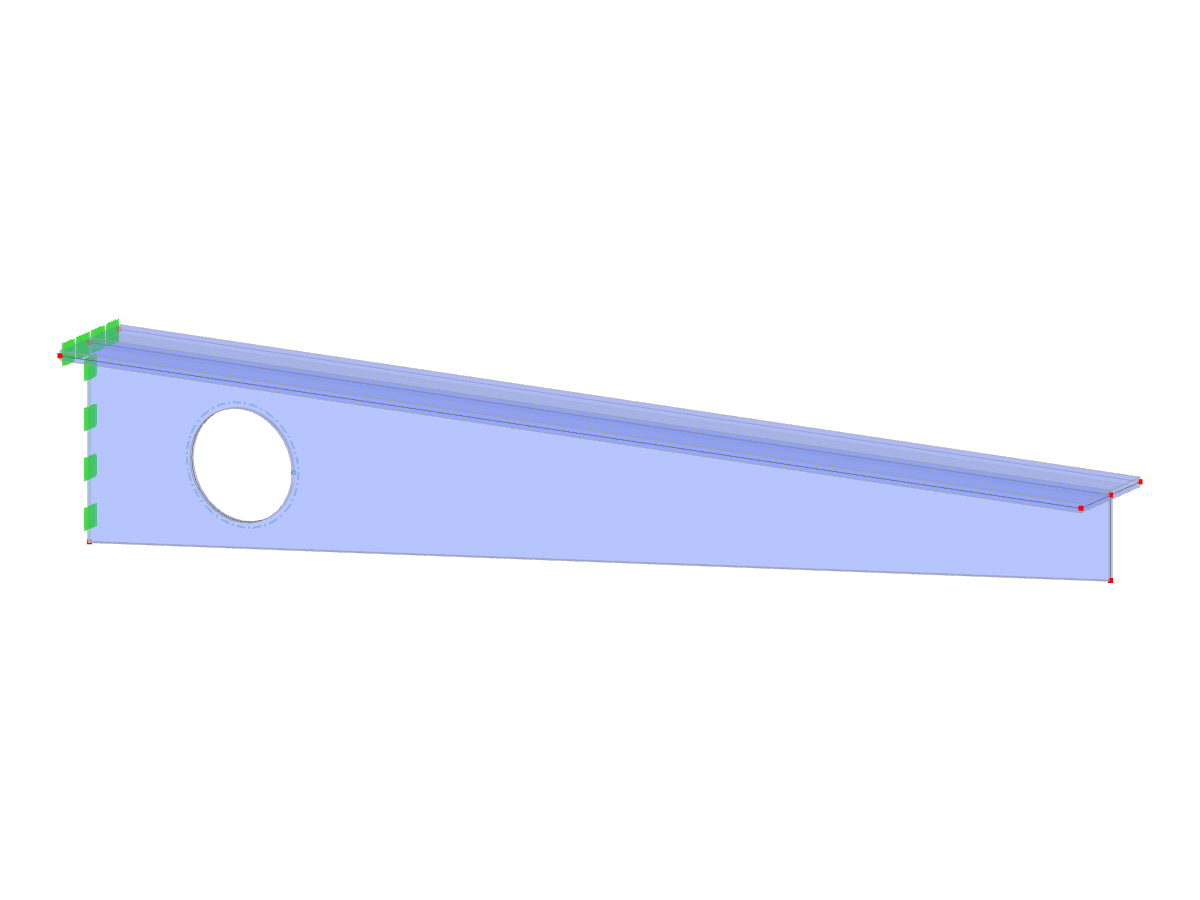

Model ID 3572 | CTS011 | Cantilever | Surfaces | T-Profile | Opening in Web
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 9 |
| Number of Lines | 11 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.087 tons |
| Dimensions (Metric) | 2,000 x 0,350 x 0,200 m |
| Dimensions (Imperial) | 6.56 x 1.15 x 0.66 feet |
