TSC004 | Truss System for Single-Curved Planes

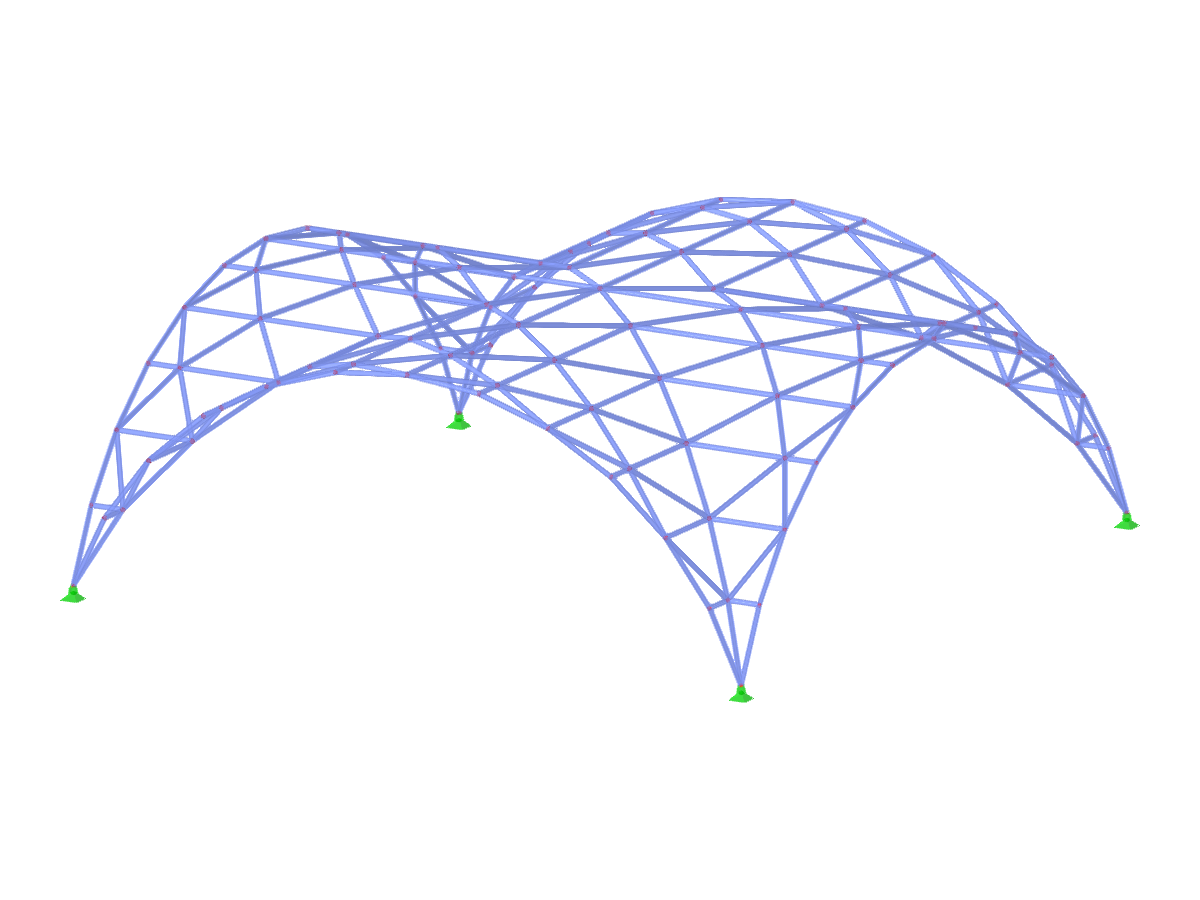

Model ID 3603 | TSC004 | Truss System for Single-Curved Planes
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 109 |
| Number of Lines | 276 |
| Number of Members | 276 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.904 tons |
| Dimensions (Metric) | 10,000 x 3,500 x 10,000 m |
| Dimensions (Imperial) | 32.81 x 11.48 x 32.81 feet |
