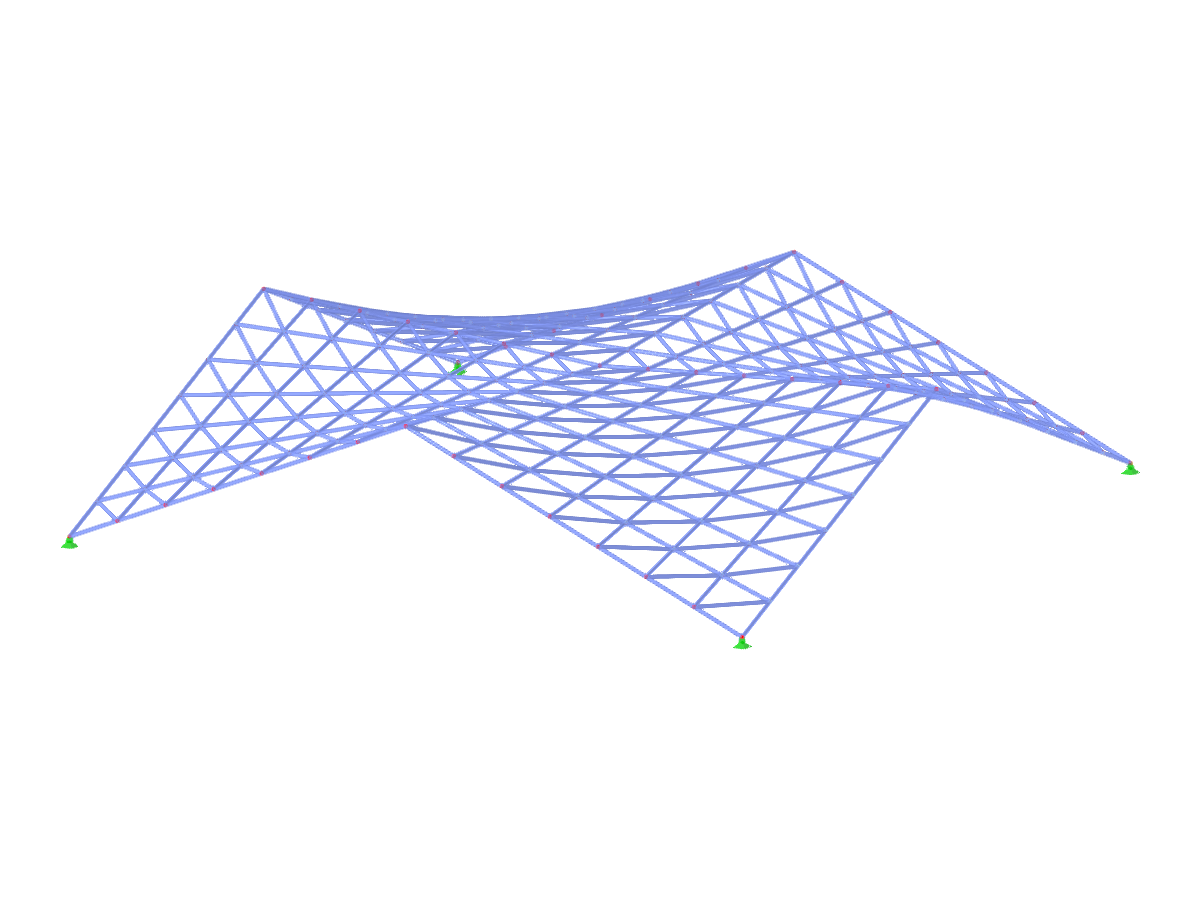

TSC005 | Truss System for Double-Curved Planes
Model ID 3608 | TSC005 | Truss System for Double-Curved Planes
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 225 |
| Number of Lines | 616 |
| Number of Members | 616 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3.955 tons |
| Dimensions (Metric) | 14,000 x 3,000 x 14,000 m |
| Dimensions (Imperial) | 45.93 x 9.84 x 45.93 feet |
