AS002 | Arch Structures | Parabolic Arches Supporting Horizontal Roof Structure

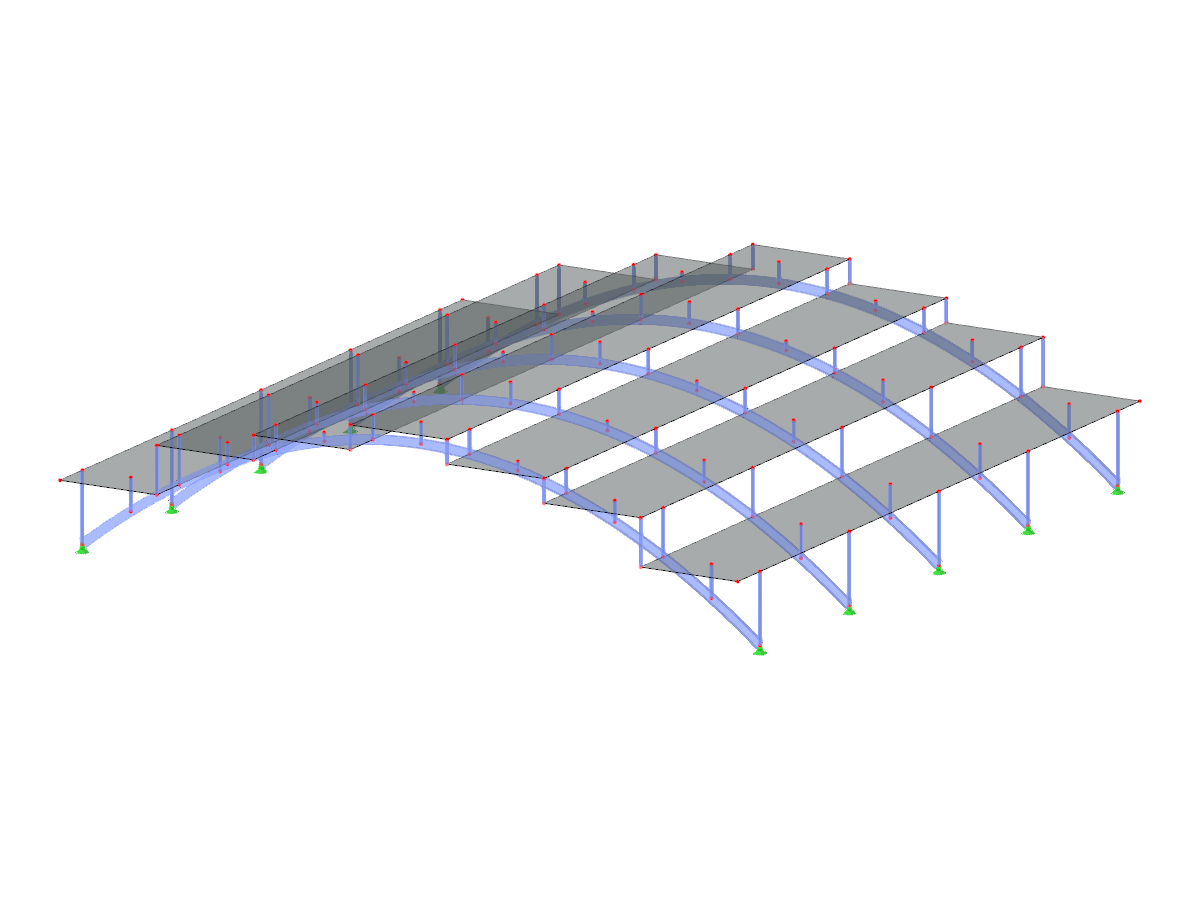

Model ID 3707 | AS002 | Arch Structures | Parabolic Arches Supporting Horizontal Roof Structure
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 178 |
| Number of Lines | 150 |
| Number of Members | 122 |
| Number of Surfaces | 7 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 28.578 tons |
| Dimensions (Metric) | 35,000 x 8,000 x 36,000 m |
| Dimensions (Imperial) | 114.83 x 26.25 x 118.11 feet |
