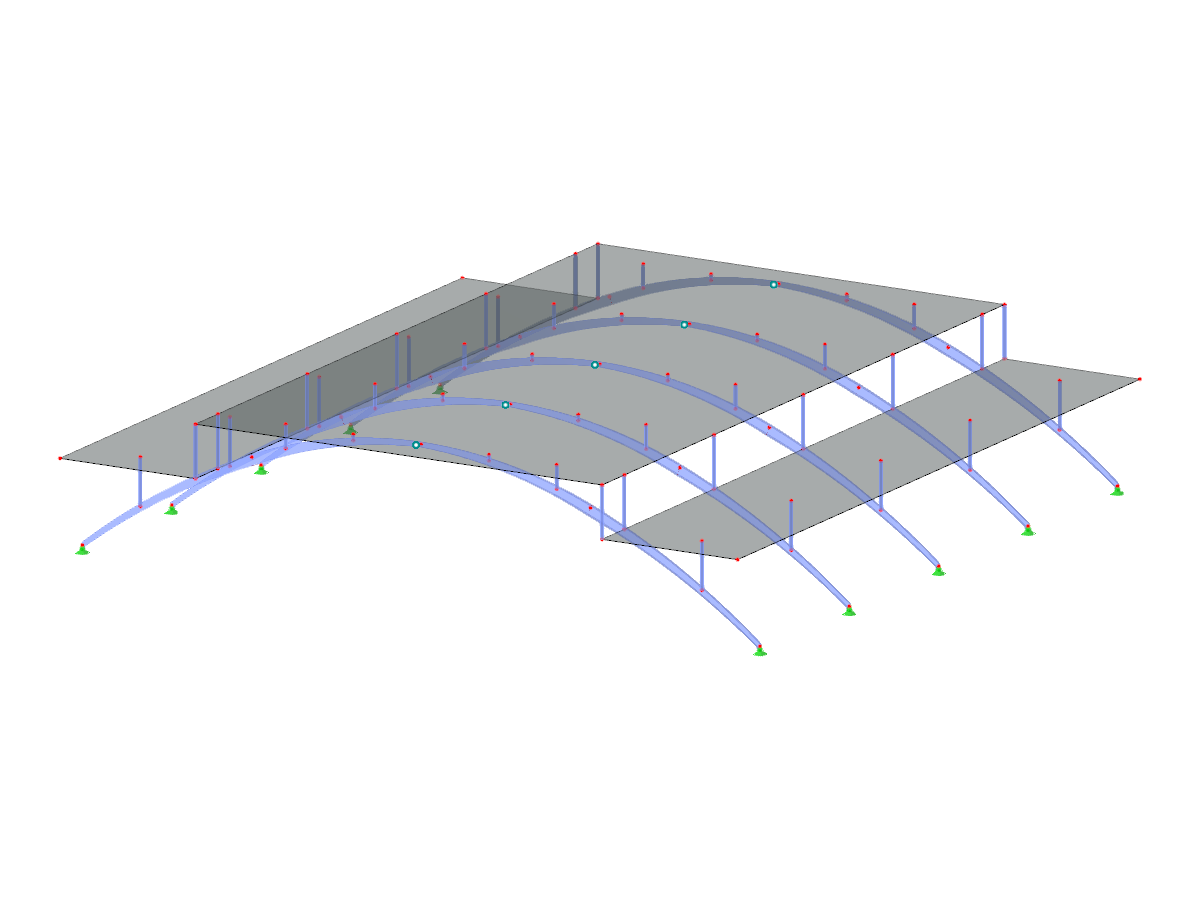

AS004 | Arch Structures | Parabolic Arches Supporting Horizontal Roof Structure
Model ID 3713 | AS004 | Arch Structures | Parabolic Arches Supporting Horizontal Roof Structure
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 117 |
| Number of Lines | 96 |
| Number of Members | 64 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 23.743 tons |
| Dimensions (Metric) | 35,000 x 7,000 x 36,000 m |
| Dimensions (Imperial) | 114.83 x 22.97 x 118.11 feet |
