HPV004 | Torispherical Pressure Vessel Head

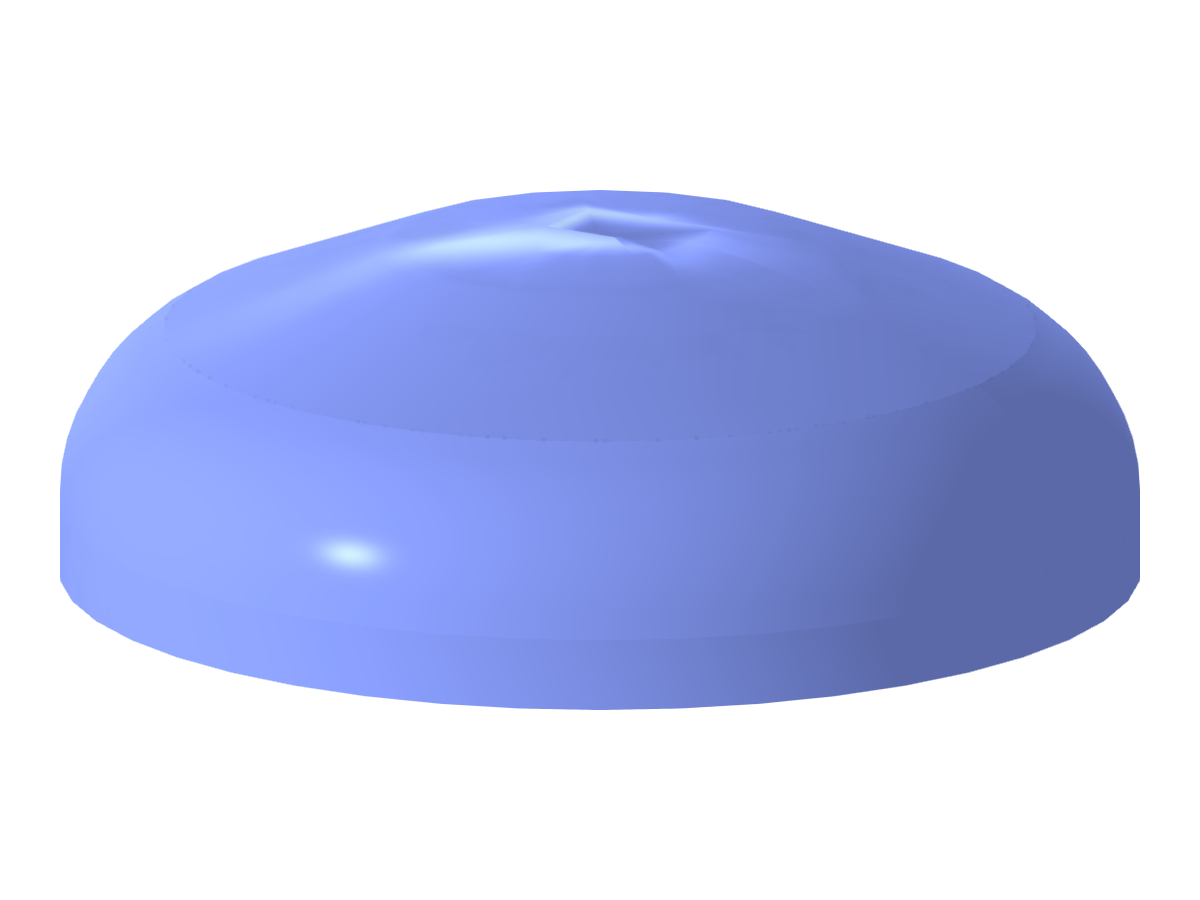

Model ID 3749 | HPV004 | Torispherical Pressure Vessel Head
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 6 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 8.780 tons |
| Dimensions (Metric) | 2,900 x 0,951 x 2,900 m |
| Dimensions (Imperial) | 9.51 x 3.12 x 9.51 feet |
