HPV005-a | Elliptical Pressure Vessel Head

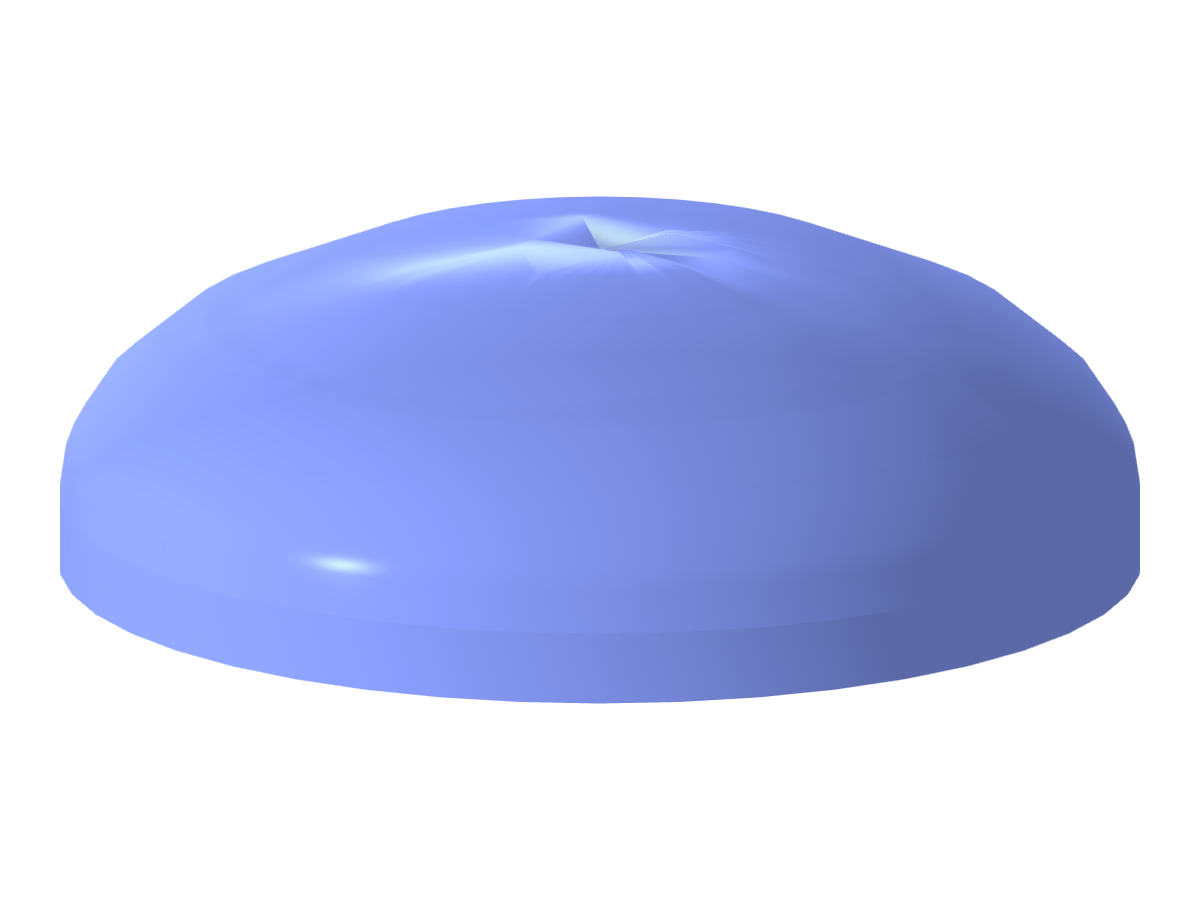

Model ID 3750 | HPV005-a | Elliptical Pressure Vessel Head
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 3 |
| Number of Lines | 4 |
| Number of Members | 0 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 8.488 tons |
| Dimensions (Metric) | 2,900 x 0,900 x 2,900 m |
| Dimensions (Imperial) | 9.51 x 2.95 x 9.51 feet |
