HPV008 | Diffuser Pressure Vessel Head

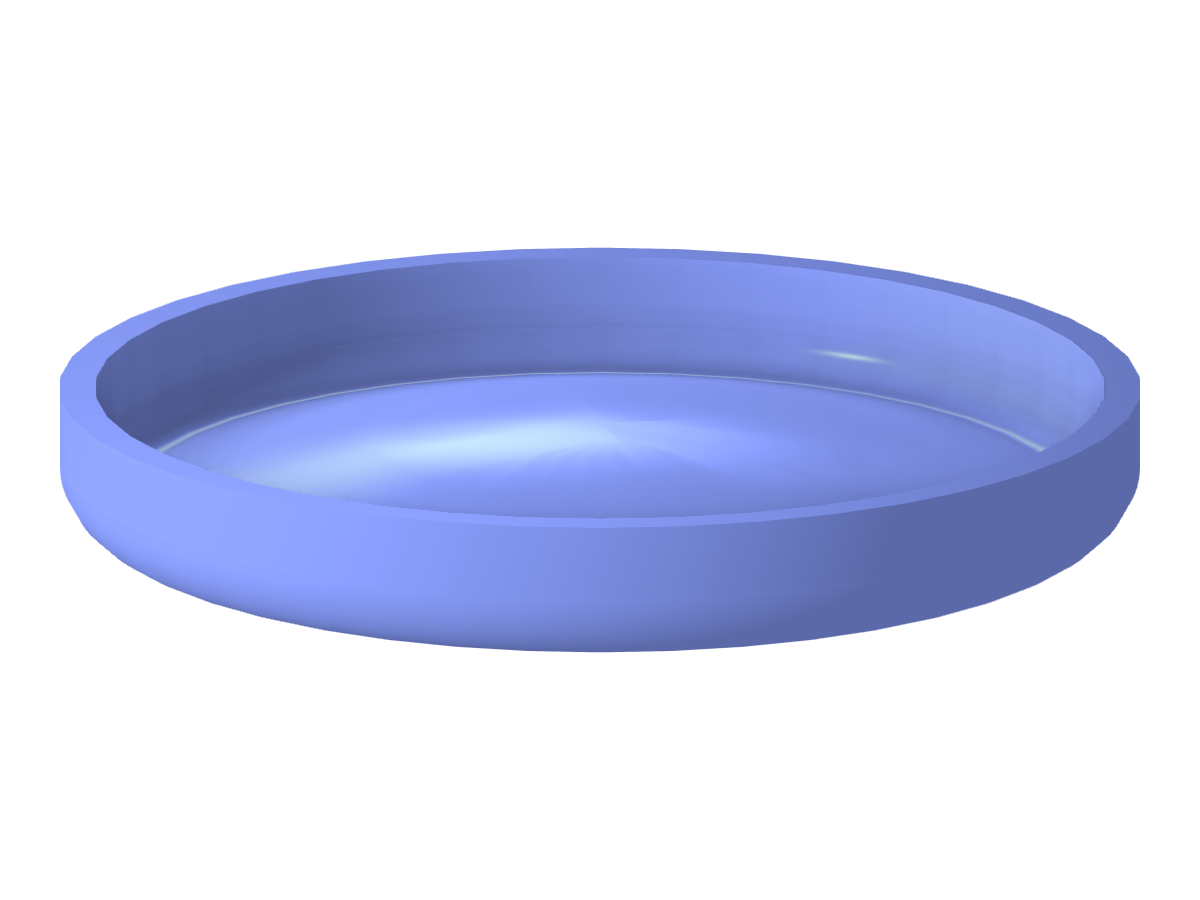

Model 003754 | HPV008 | Diffuser Pressure Vessel Head
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 5 |
| Number of Lines | 6 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 7.339 tons |
| Dimensions (Metric) | 2,900 x 0,355 x 2,900 m |
| Dimensions (Imperial) | 9.51 x 1.16 x 9.51 feet |
