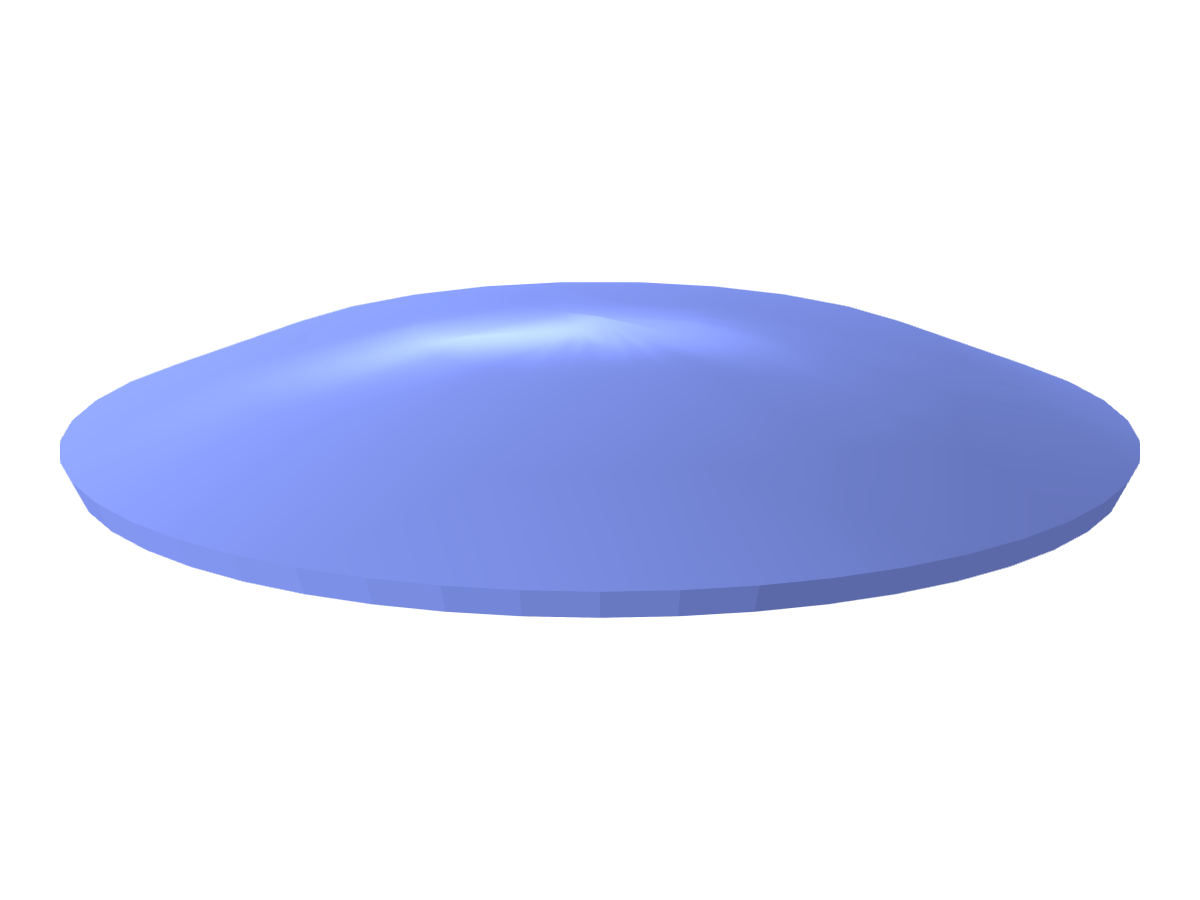

HPV010-b | Convex Disc Pressure Vessel Head
Model ID 3763 | HPV010-b | Convex Disc Pressure Vessel Head
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 2 |
| Number of Lines | 2 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 5.729 tons |
| Dimensions (Metric) | 2,952 x 0,381 x 2,952 m |
| Dimensions (Imperial) | 9.69 x 1.25 x 9.69 feet |
