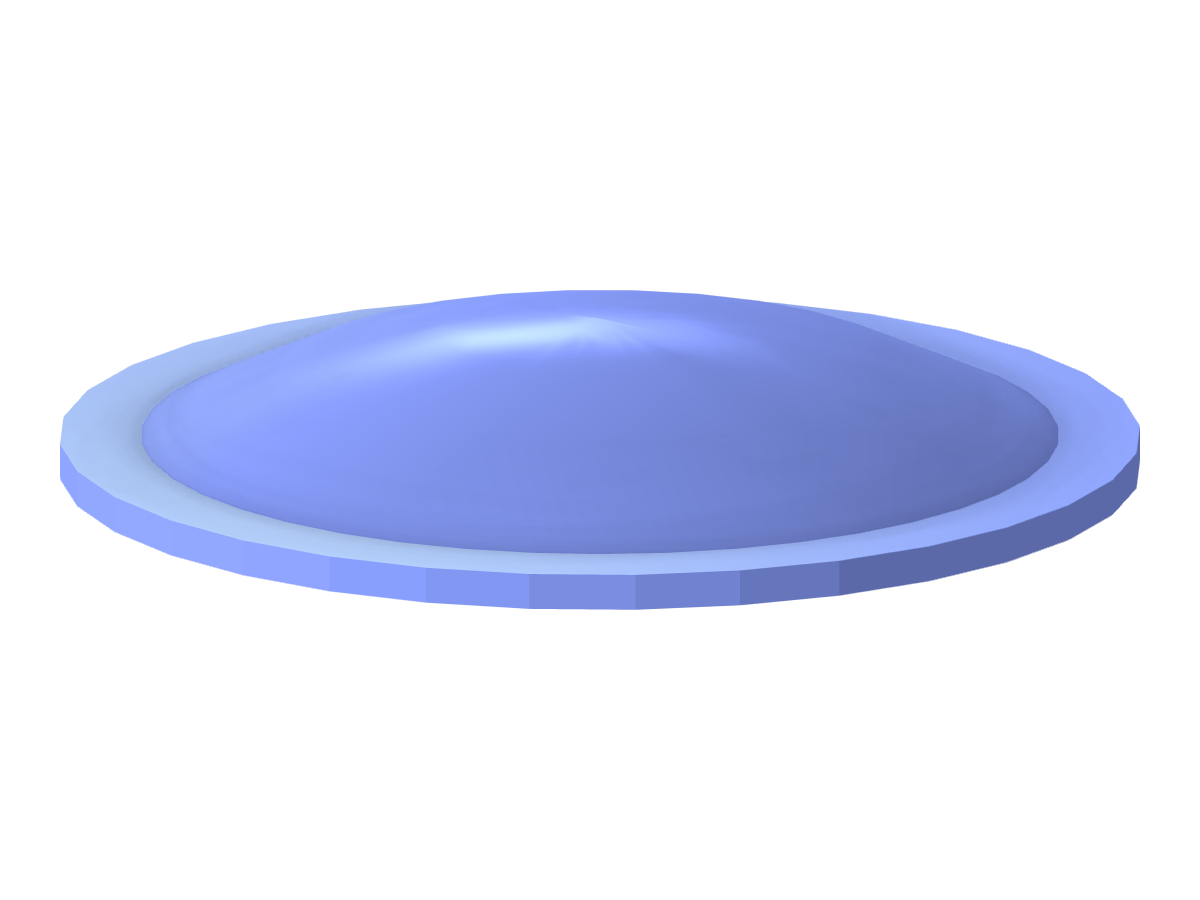

HPV011-a | Plate-Type Pressure Vessel Head
Model ID 3764 | HPV011-a | Plate-Type Pressure Vessel Head
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 4 |
| Number of Members | 0 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 5.825 tons |
| Dimensions (Metric) | 3,000 x 0,335 x 3,000 m |
| Dimensions (Imperial) | 9.84 x 1.1 x 9.84 feet |
