HPV0013-b | Toriconical Pressure Vessel Head

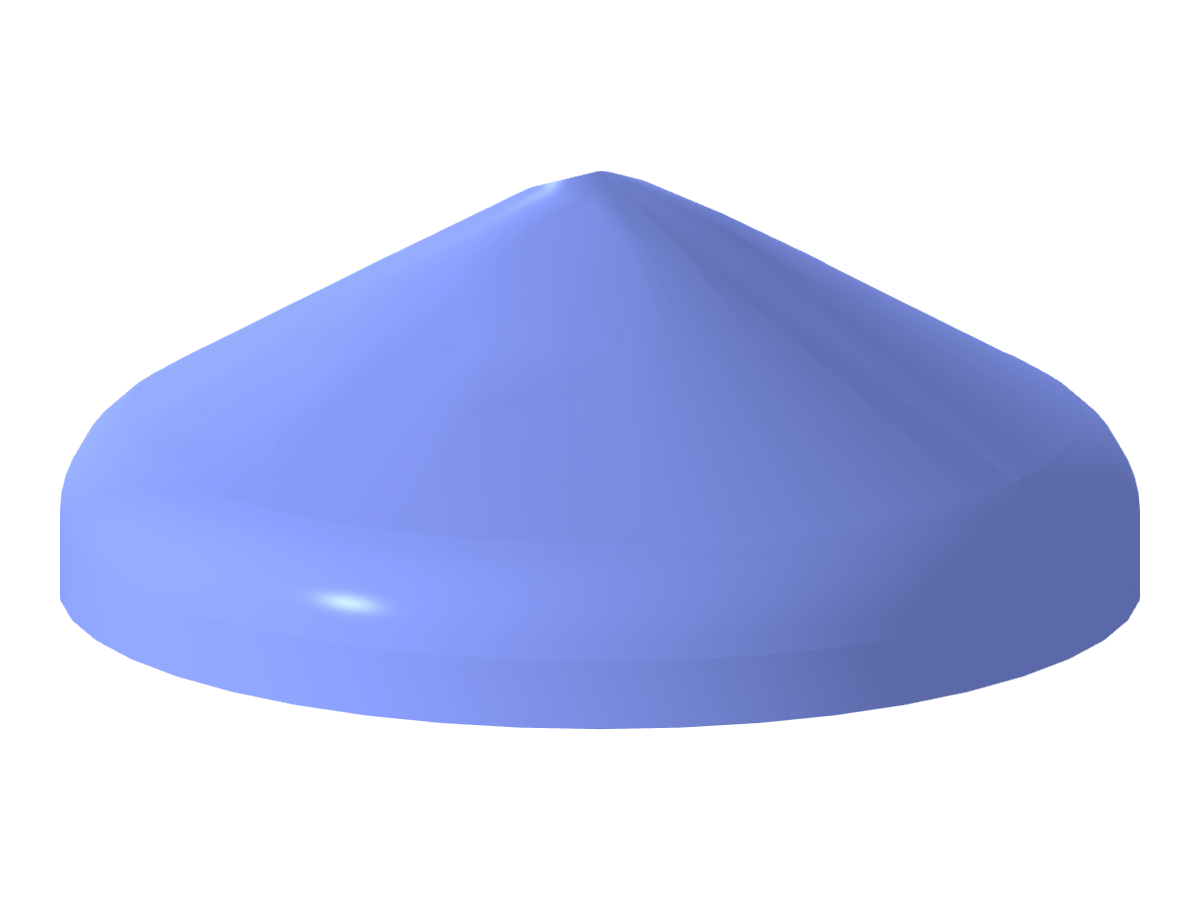

Model ID 3769 | HPV0013-b | Toriconical Pressure Vessel Head
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 6 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 8.913 tons |
| Dimensions (Metric) | 3,000 x 1,239 x 3,000 m |
| Dimensions (Imperial) | 9.84 x 4.06 x 9.84 feet |
