Windbreak Porous Fabric Structure in RFEM & RWIND
Wind Velocity Contour

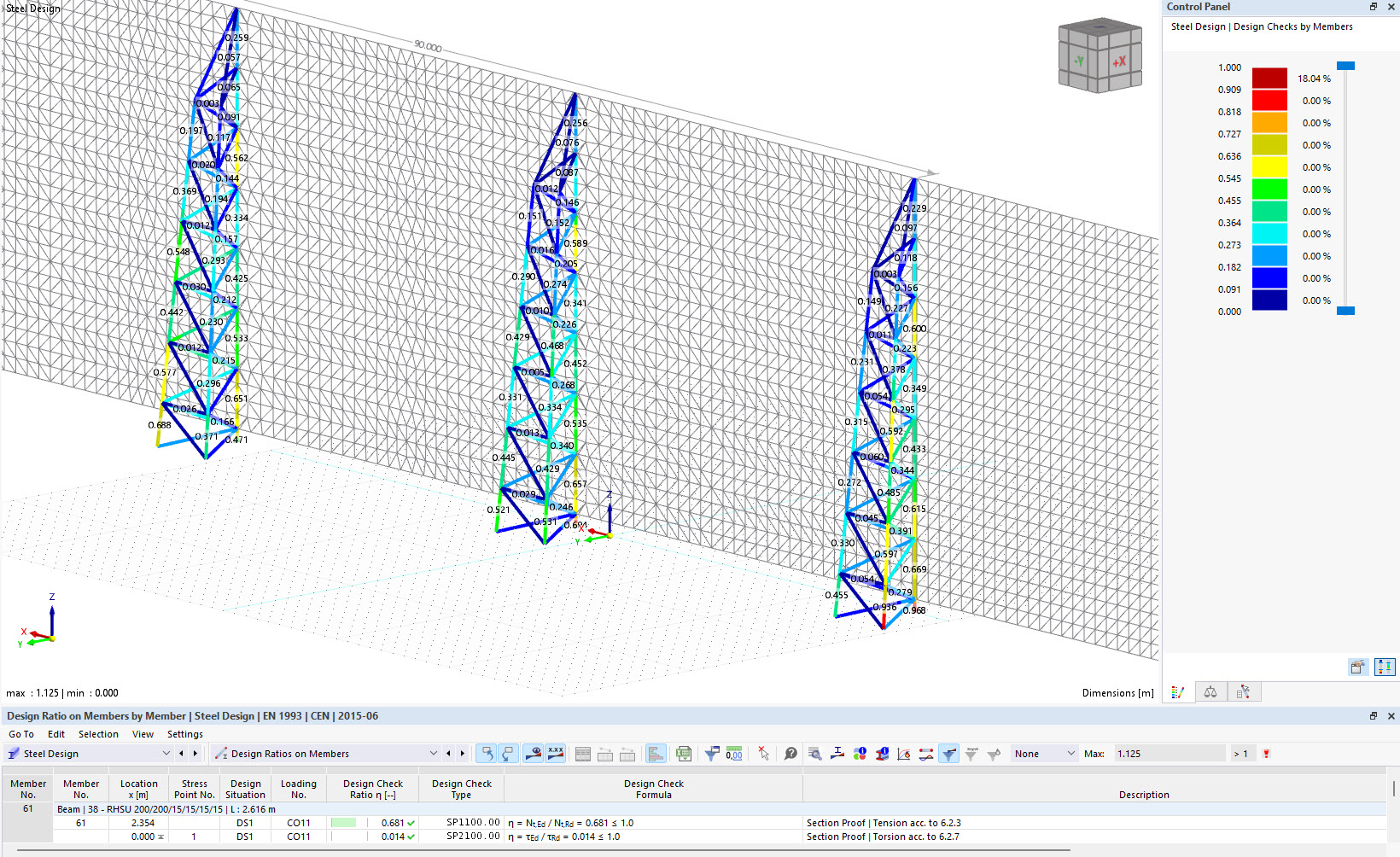

Design Ratio for Structural Elements

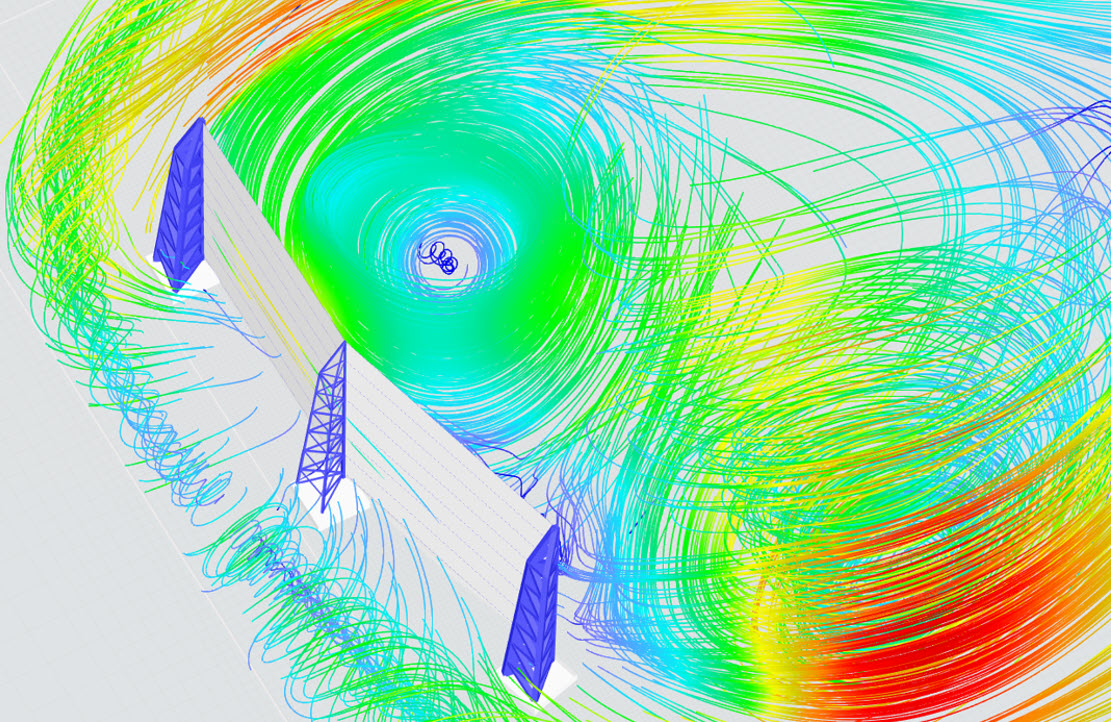

Wind Streamlines

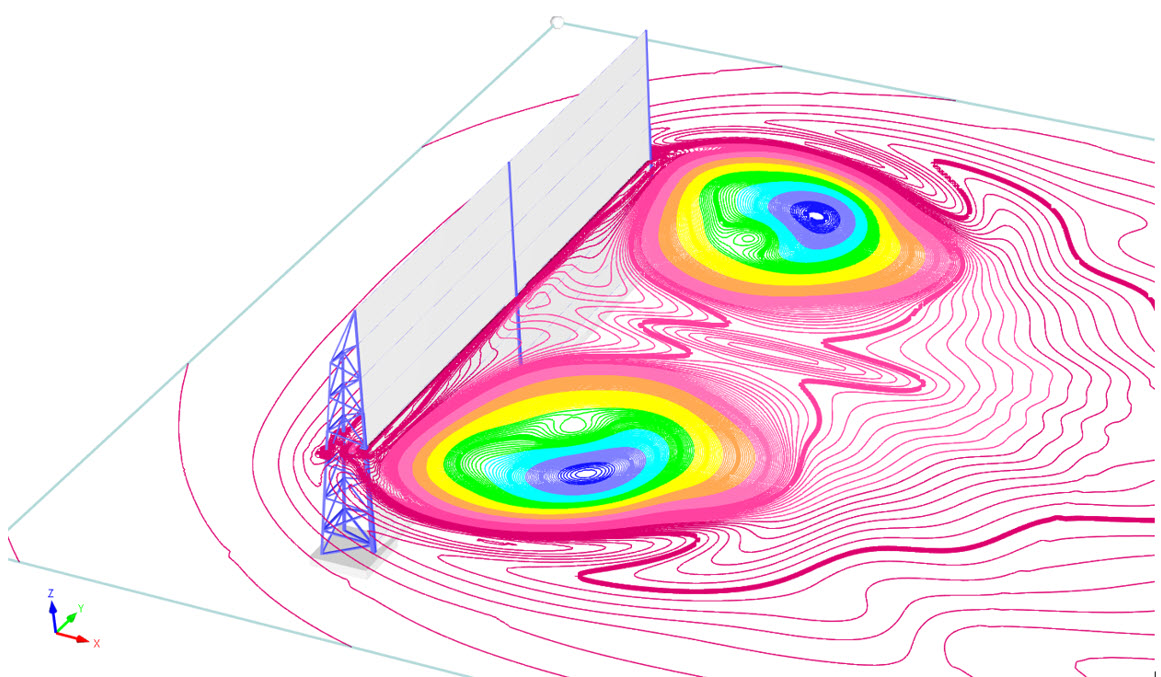

Wind Turbulence Contour

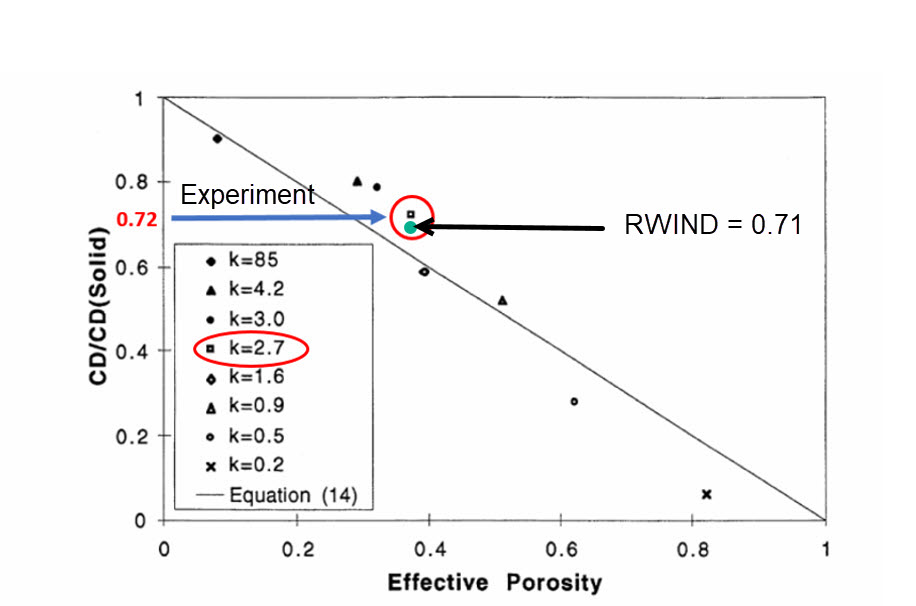

Load Reduction Factor Compared with [3]

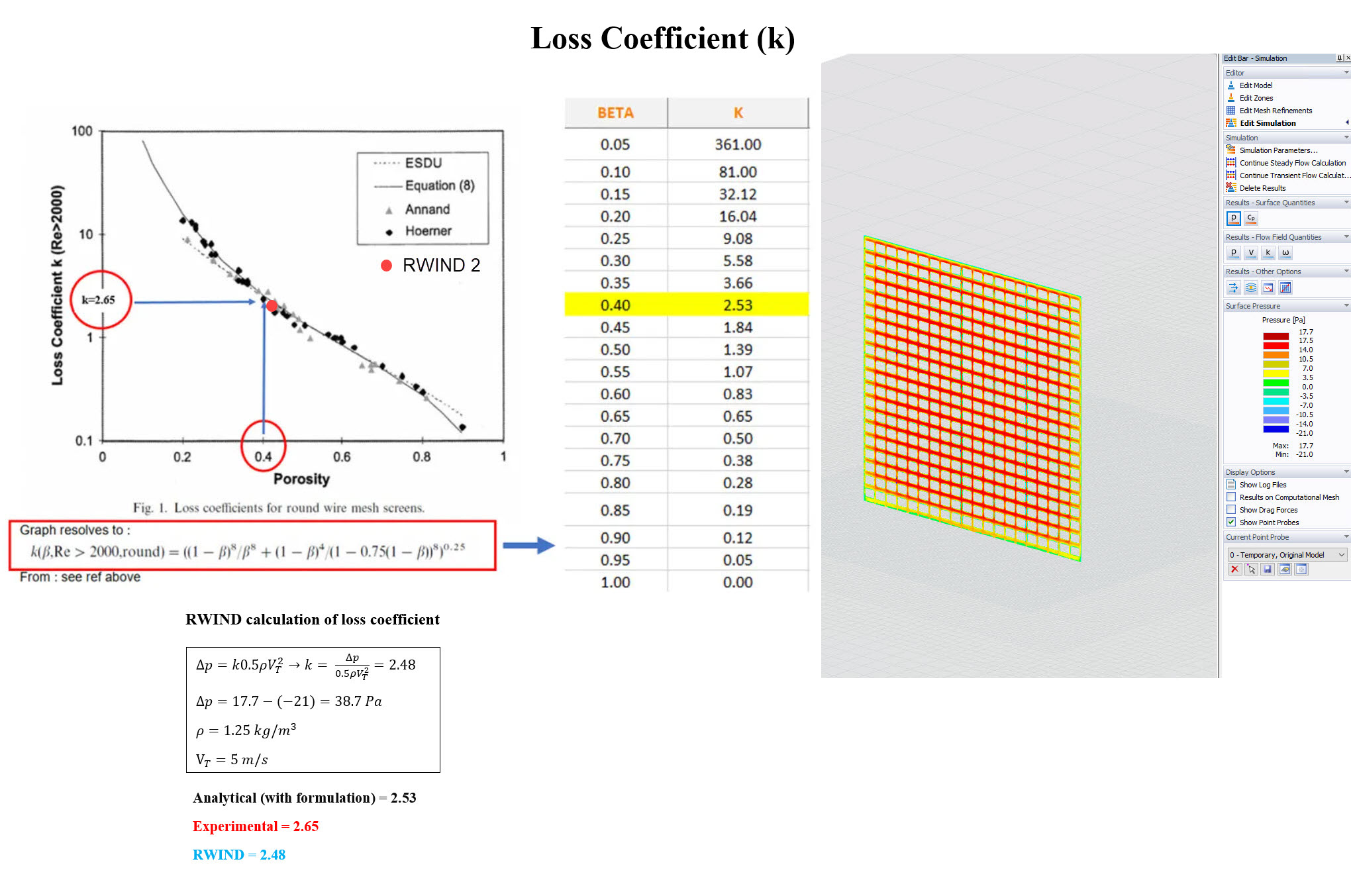

Loss Coefficient Diagram Regarding Analytical, Experimental and CFD Simulation with RWIND Compared with [3]

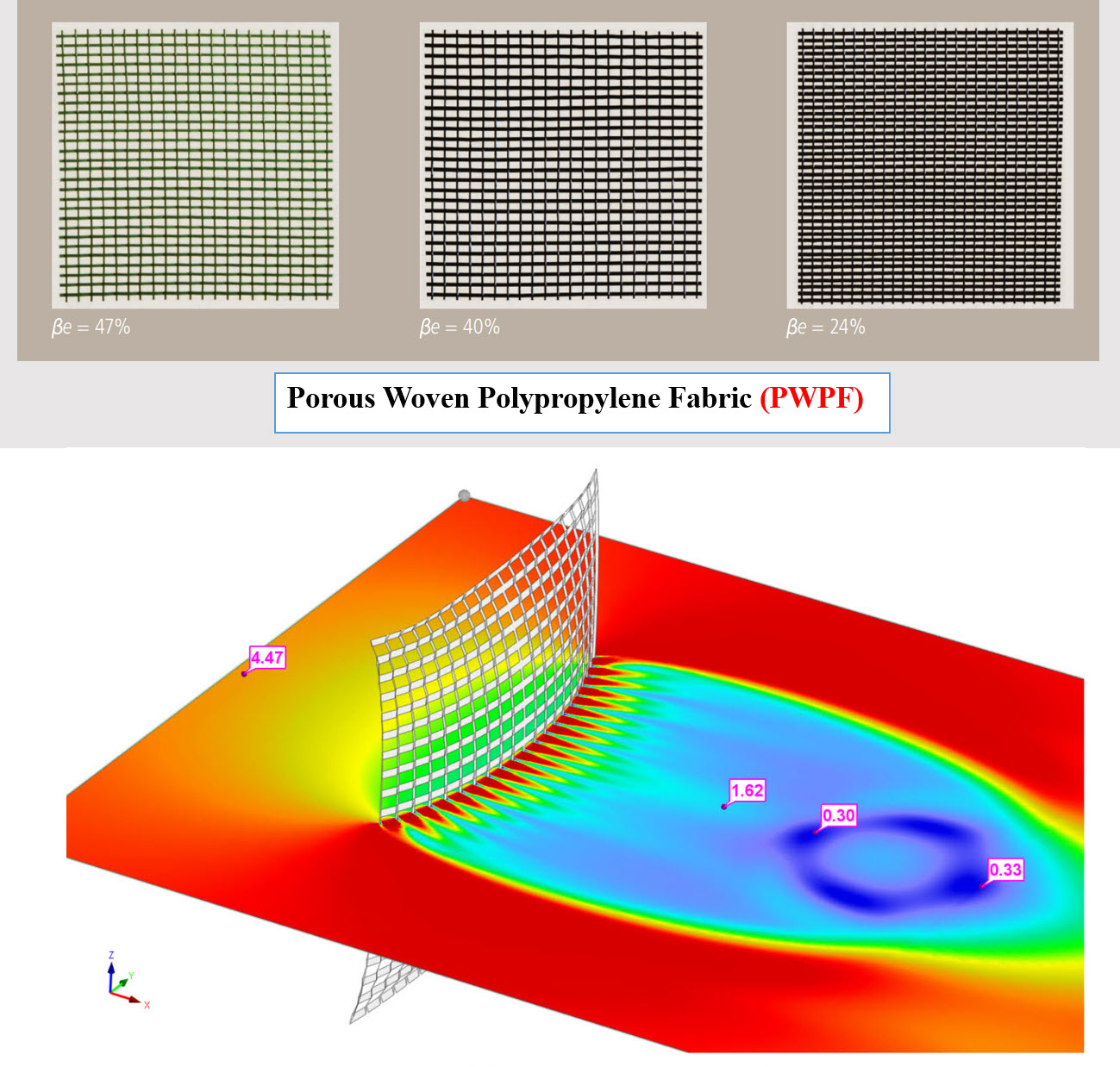

PWPF with Different Porosity and Wind Velocity Countour for 40%

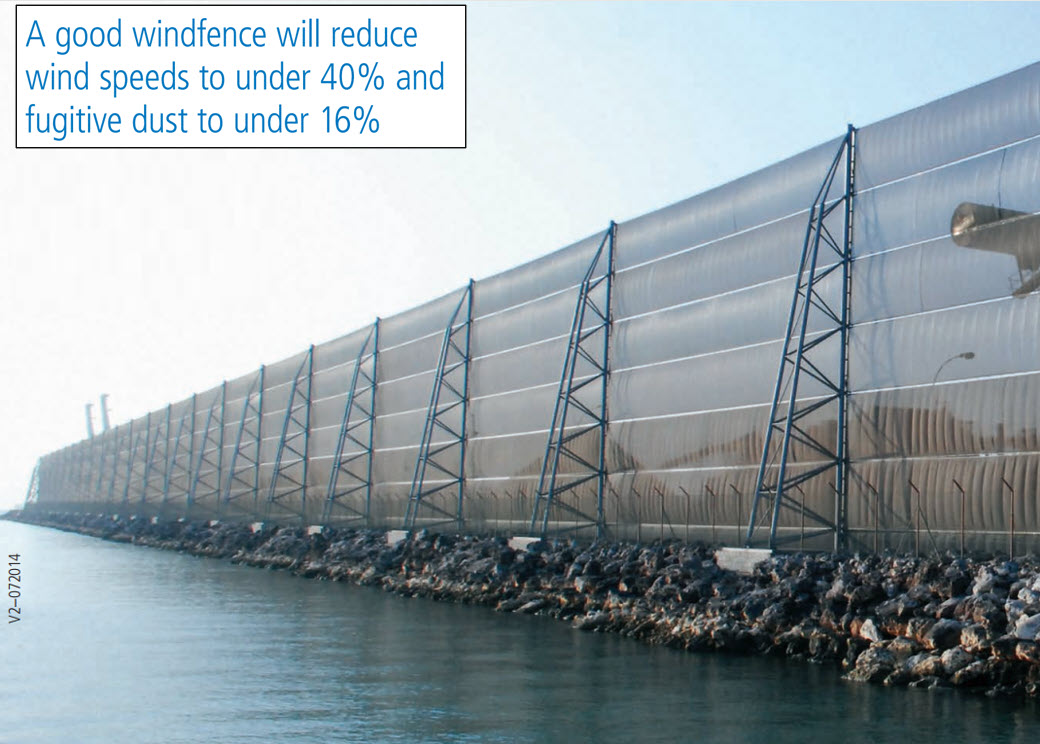

Windbreak Structures (Ref. 3) © www.weathersolve.com
Windbreak Structure in RFEM

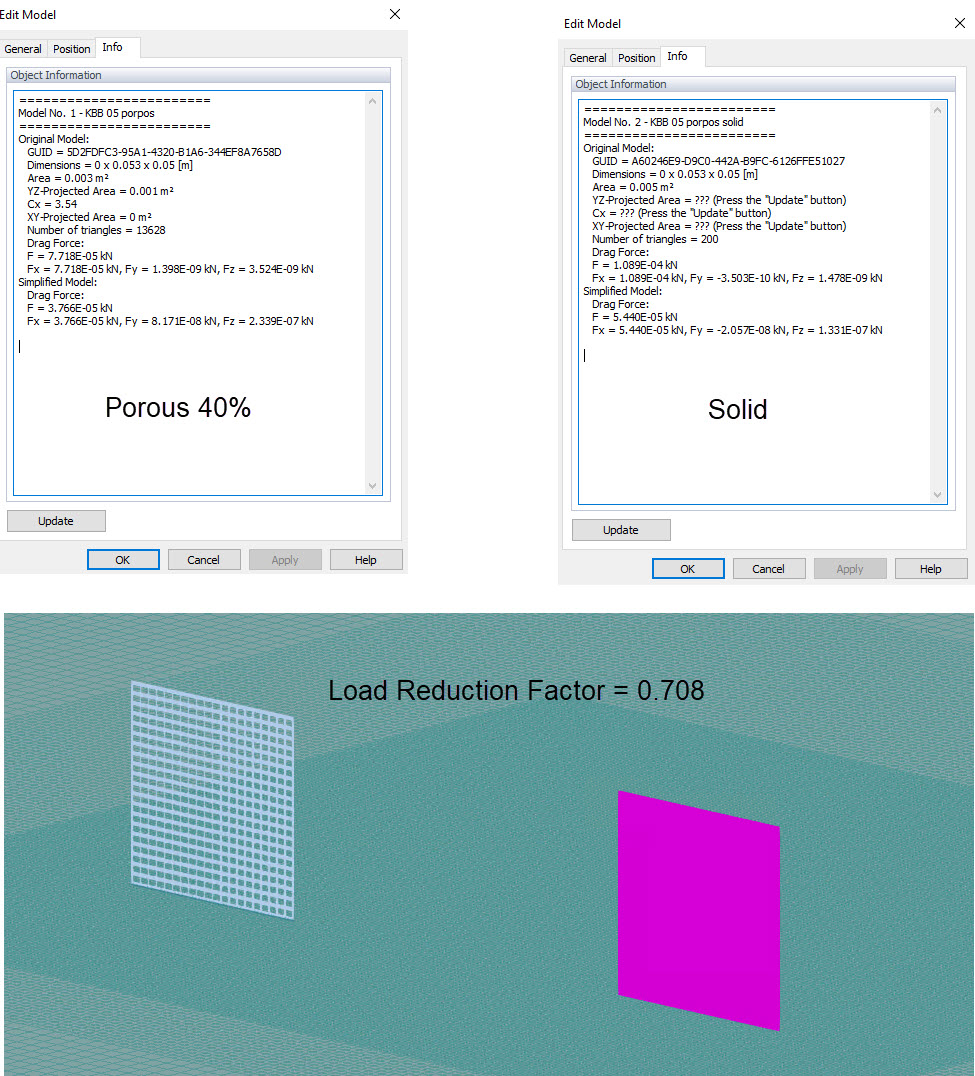

RWIND Load Reduction Factor Calculation
Permeability Parameters in RWIND
Windbreak Porous Fabric Structure in RFEM & RWIND
Wind Velocity Contour
Design Ratio for Structural Elements
Wind Streamlines
Wind Turbulence Contour
Load Reduction Factor Compared with [3]
Loss Coefficient Diagram Regarding Analytical, Experimental and CFD Simulation with RWIND Compared with [3]
PWPF with Different Porosity and Wind Velocity Countour for 40%
Windbreak Structures (Ref. 3) © www.weathersolve.com
Windbreak Structure in RFEM
RWIND Load Reduction Factor Calculation
Permeability Parameters in RWIND
