Steel Beam Splice Connection

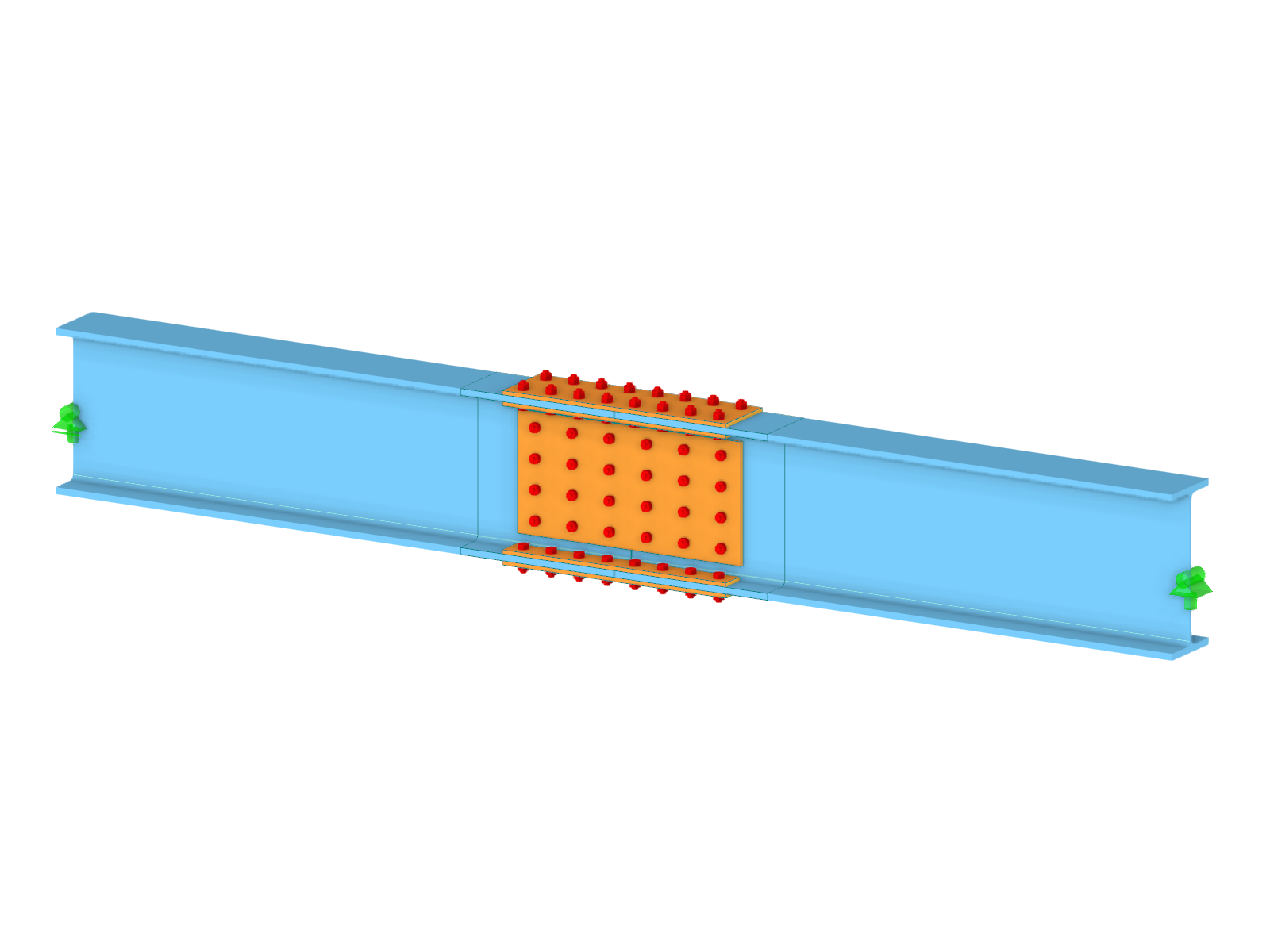

Splice Connection
Used in
3D Model
Specifications
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 1.699 tons |
| Dimensions (Metric) | 6.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 19.69 x 0 x 0 feet |
