Steel Connection | Beam with Stiffener Connected to Column
Beam with Stiffener Connected to Column

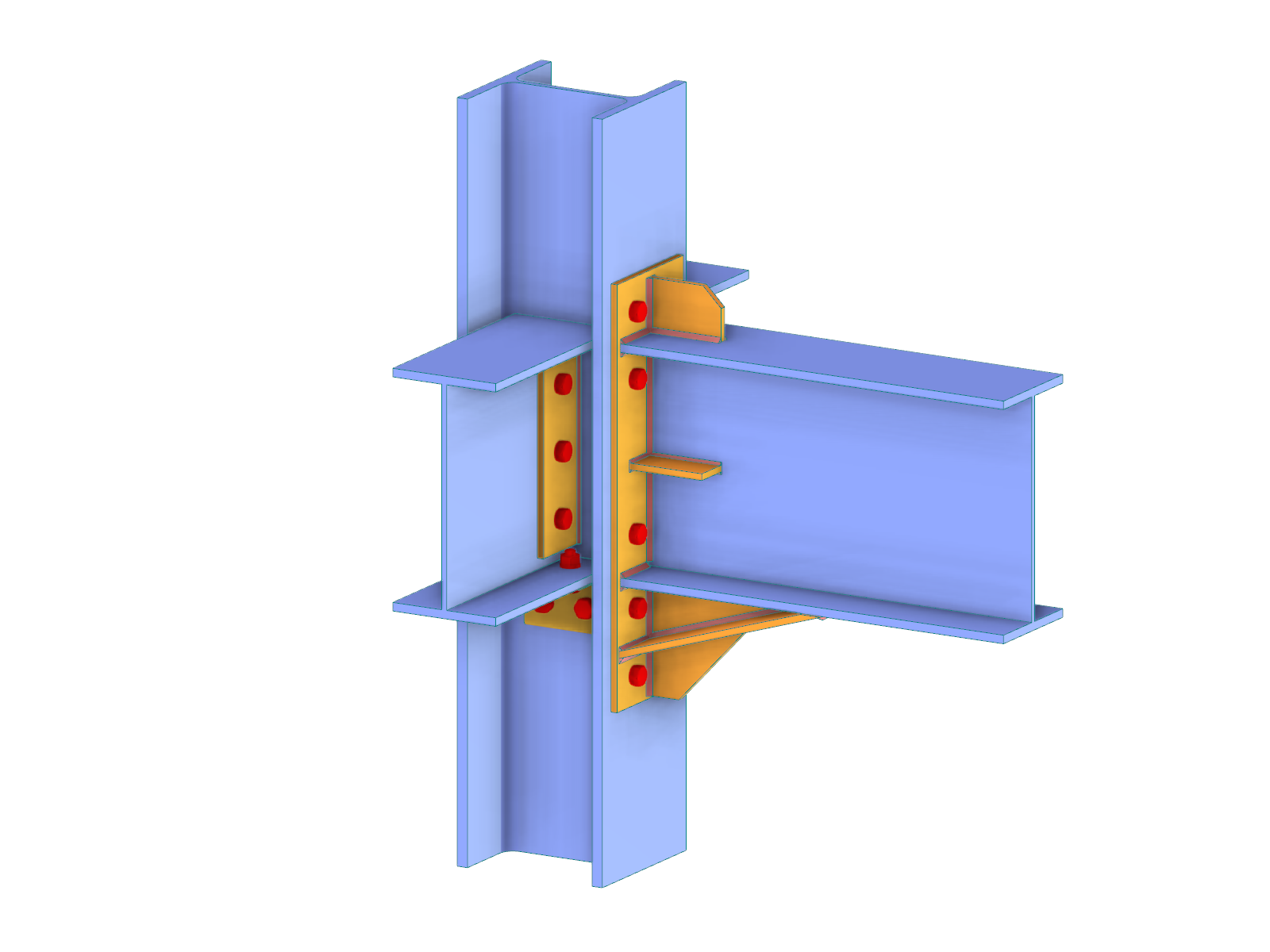

3D Model
Specifications
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 12 |
| Number of Result Combinations | 0 |
| Total Weight | 0.373 tons |
| Dimensions (Metric) | 1.000 x 2.500 x 2.000 m |
| Dimensions (Imperial) | 3.28 x 8.2 x 6.56 feet |
