Concrete Staircase with Upper Landing

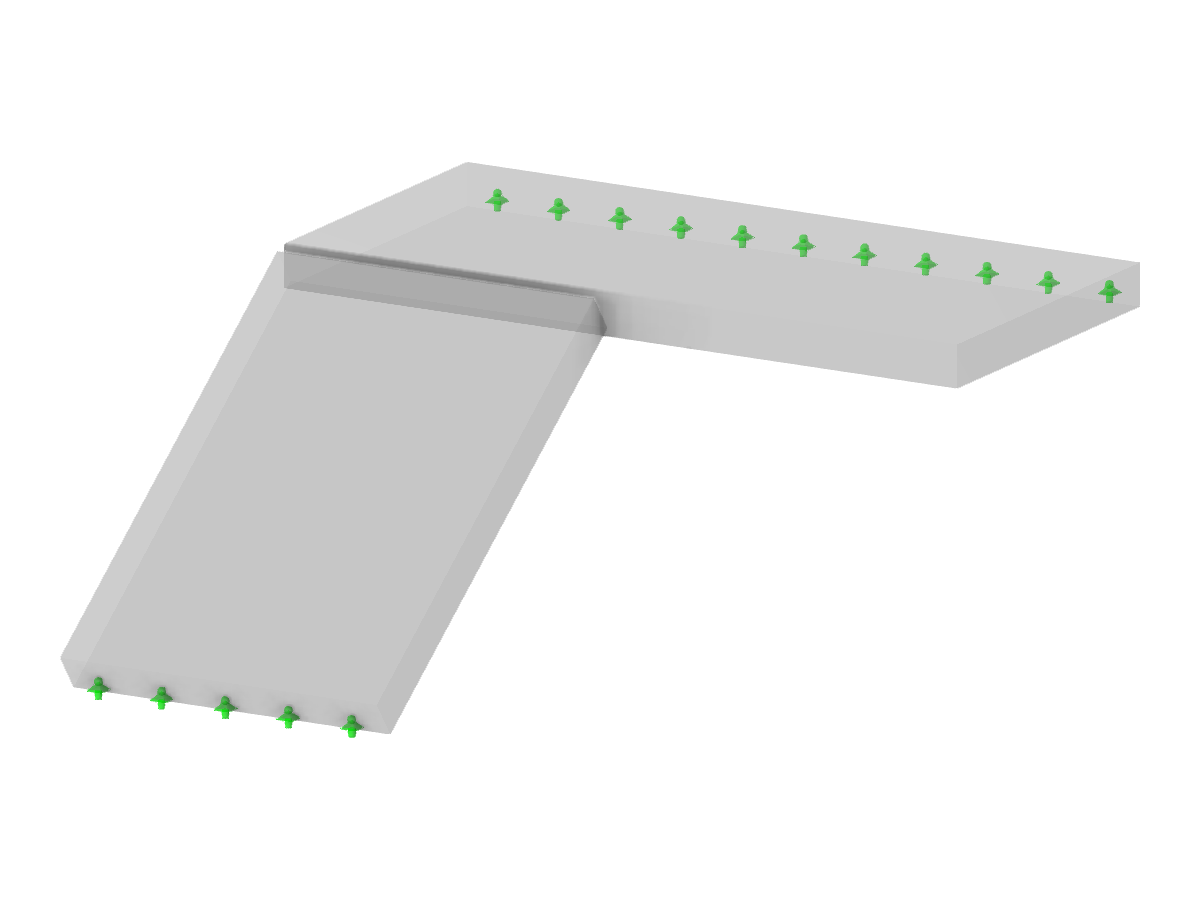

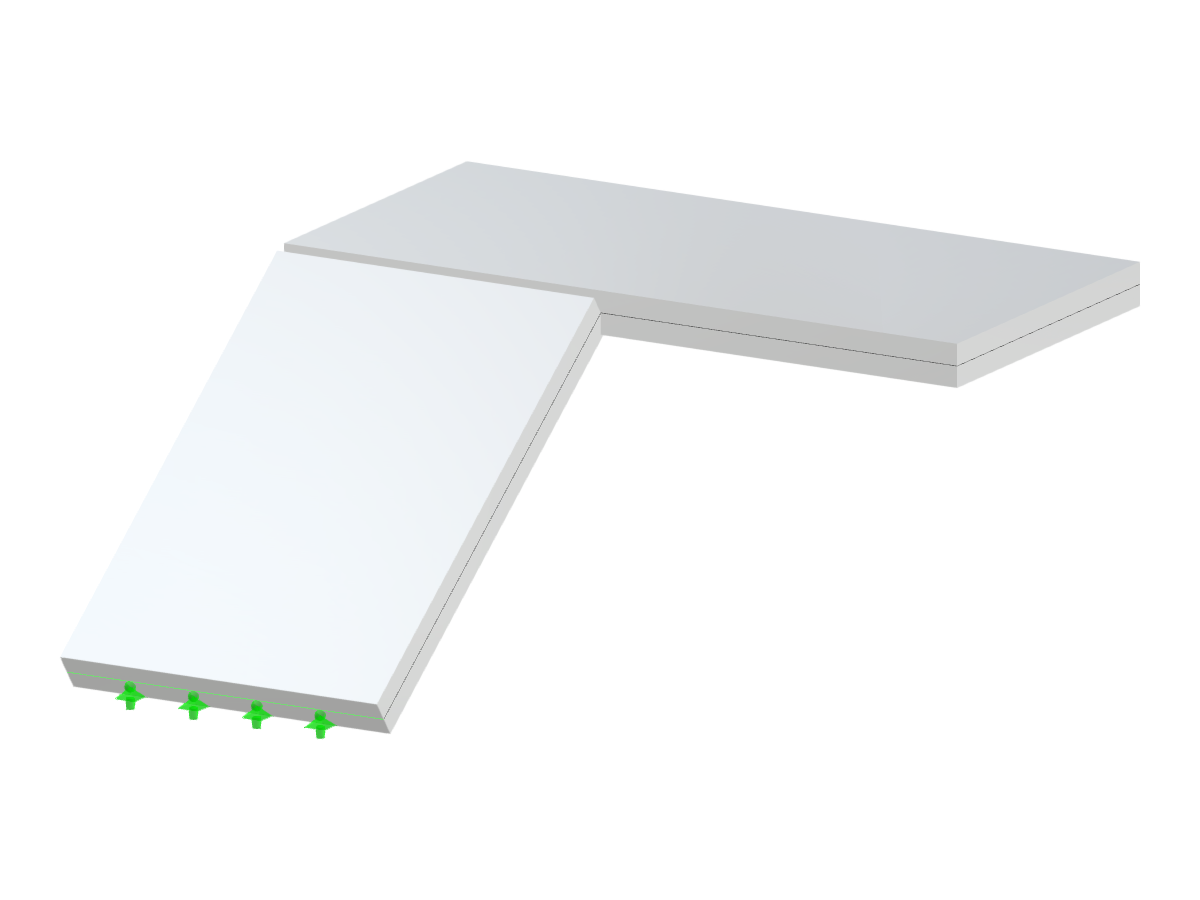

Concrete single-flight staircase ending with a landing on the top right side
The image depicts a concrete single-flight staircase with a landing positioned at the top right side. The staircase features a simple design typically seen in residential or commercial buildings. The use of concrete suggests durability and strength, and the structure is likely engineered to meet specific load requirements. The design is functional, providing efficient vertical circulation within a building.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 7 |
| Number of Lines | 8 |
| Number of Members | 0 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 4.608 tons |
| Dimensions (Metric) | 3.400 x 1.400 x 3.500 m |
| Dimensions (Imperial) | 11.15 x 4.59 x 11.48 feet |
