Concrete Staircase with Landing

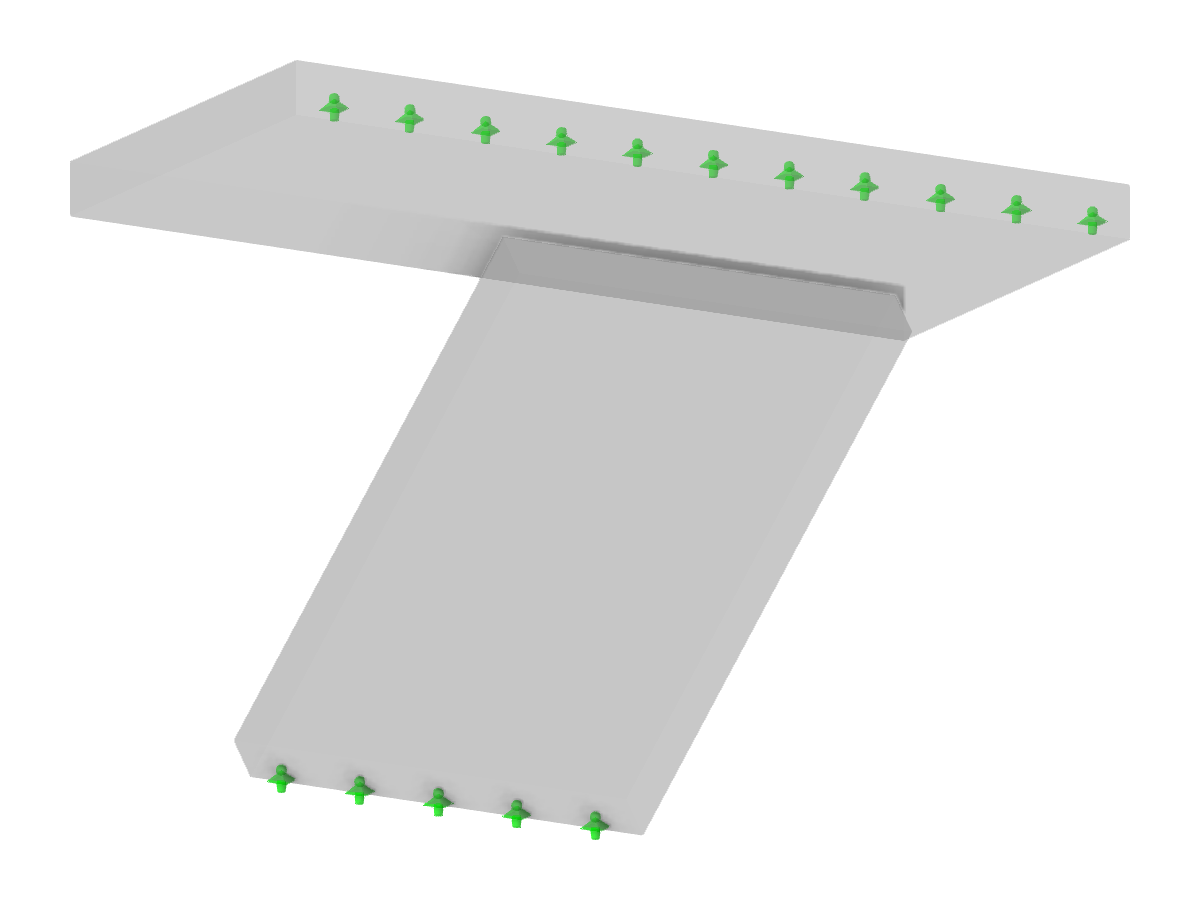

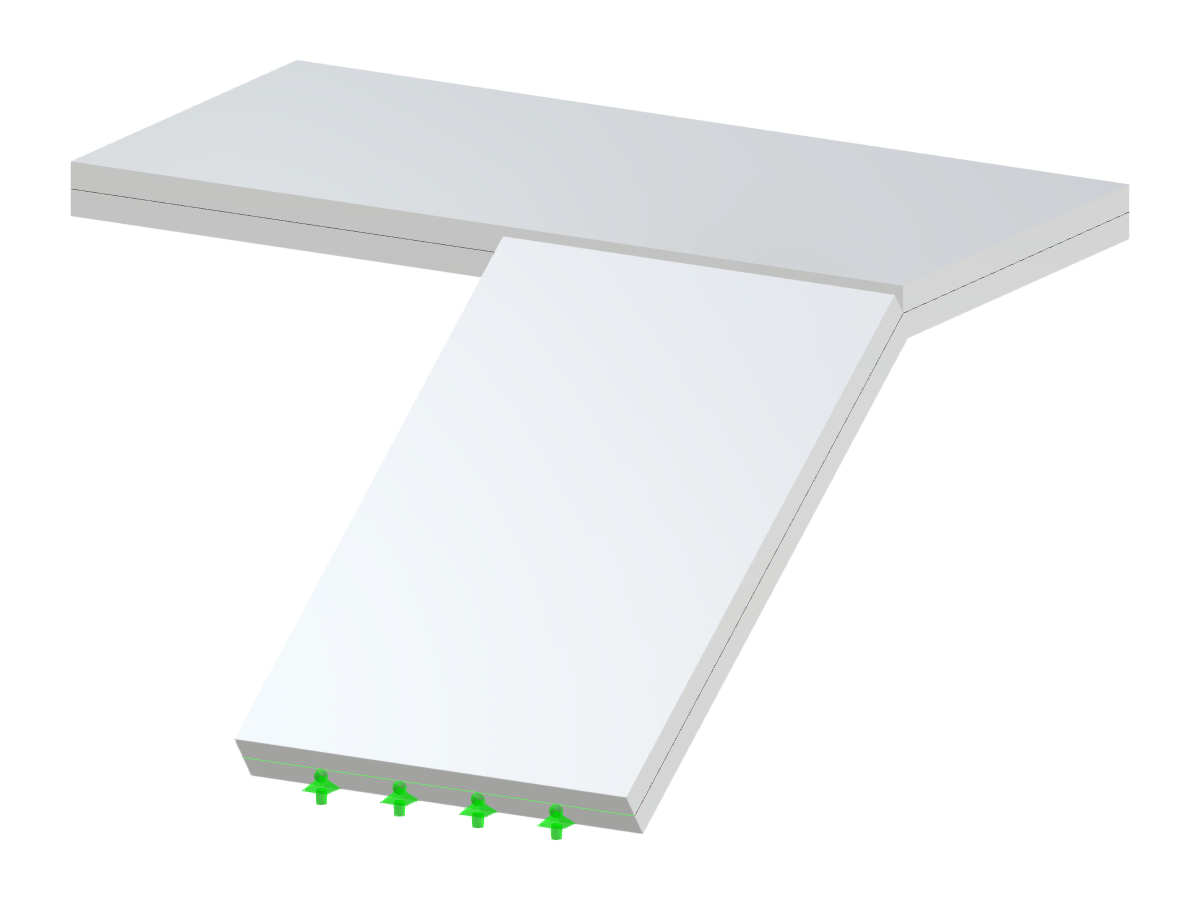

Concrete staircase with a single flight and a landing in the top left corner of the structure.
The image shows a concrete single-flight staircase with a landing positioned on the top left side. The staircase design is straightforward, highlighting the simplicity and functionality typical of such constructions.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 7 |
| Number of Lines | 8 |
| Number of Members | 0 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 4.608 tons |
| Dimensions (Metric) | 3.400 x 1.400 x 3.500 m |
| Dimensions (Imperial) | 11.15 x 4.59 x 11.48 feet |
