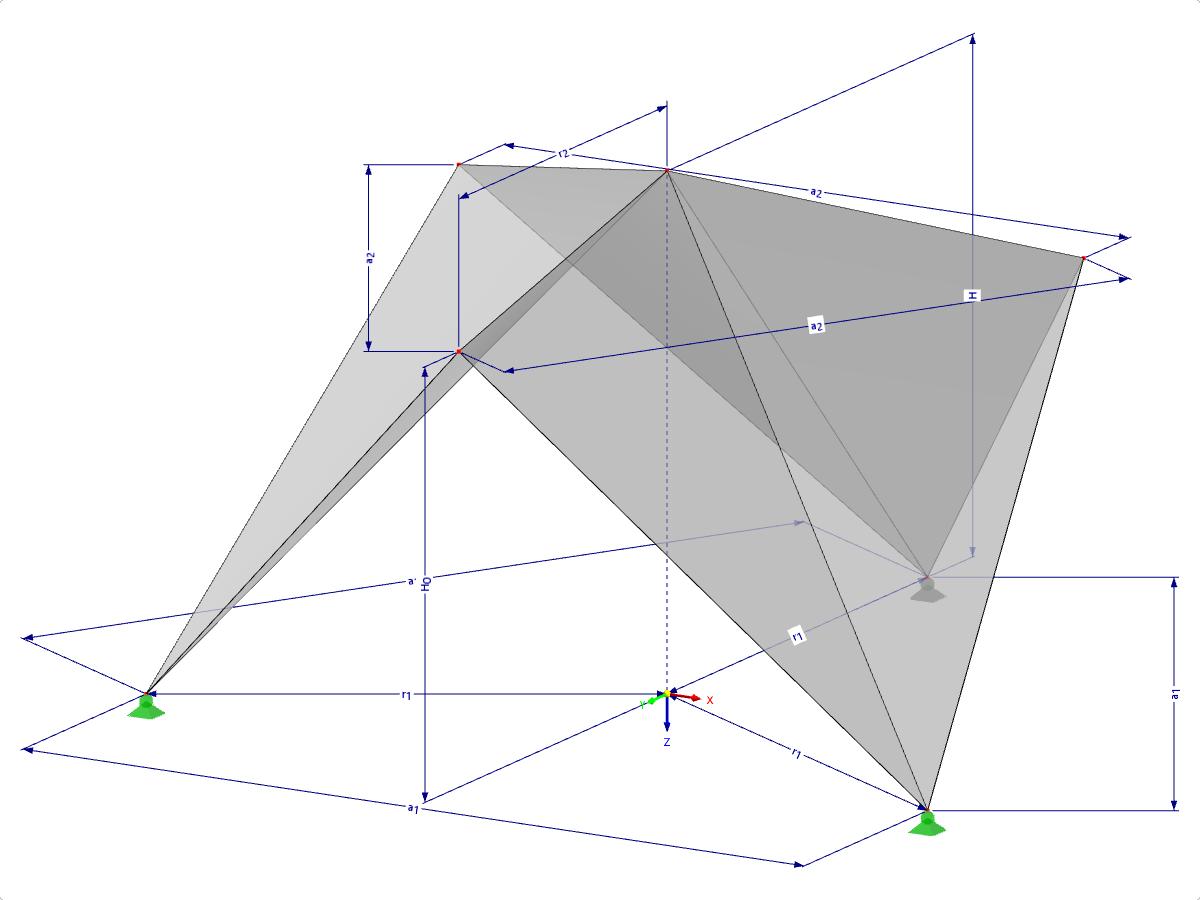

FPC005-b | Prismatic Folded Structure Systems. Singly Folded Surfaces over Triangular Floor Plan, Ridges Toward Center with Parameters
Model 000516 | FPC005-b | Prismatic Folded Structure Systems. Singly Folded Surfaces over Triangular Floor Plan, Ridges Toward Center with Parameters
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 7 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 6 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 205.641 tons |
| Dimensions (Metric) | 20,000 x 12,000 x 20,785 m |
| Dimensions (Imperial) | 65.62 x 39.37 x 68.19 feet |
