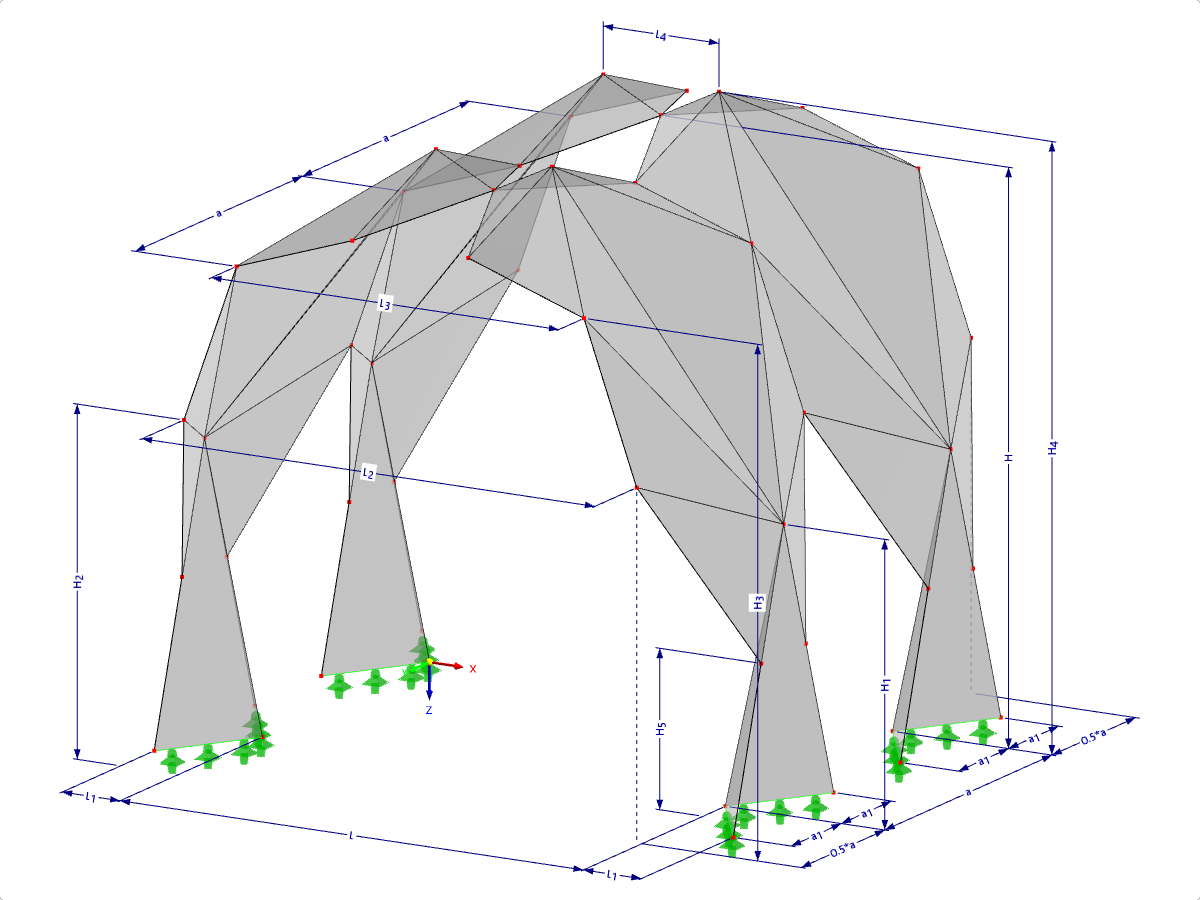

FPL124-a | Prismatic Folded Structure Systems. Linear Structure System Composed of Folded Surfaces. Arch with Top Hinge with Parameters
Model 001393 | FPL124-a | Prismatic Folded Structure Systems. Linear Structure System Composed of Folded Surfaces. Arch with Top Hinge with Parameters
3D Model
More About 3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 48 |
| Number of Lines | 96 |
| Number of Members | 0 |
| Number of Surfaces | 48 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 554.453 tons |
| Dimensions (Metric) | 20,000 x 19,000 x 20,000 m |
| Dimensions (Imperial) | 65.62 x 62.34 x 65.62 feet |
