Hall | Multi-Bay Hall | Frame Bent with Tie with Parameters

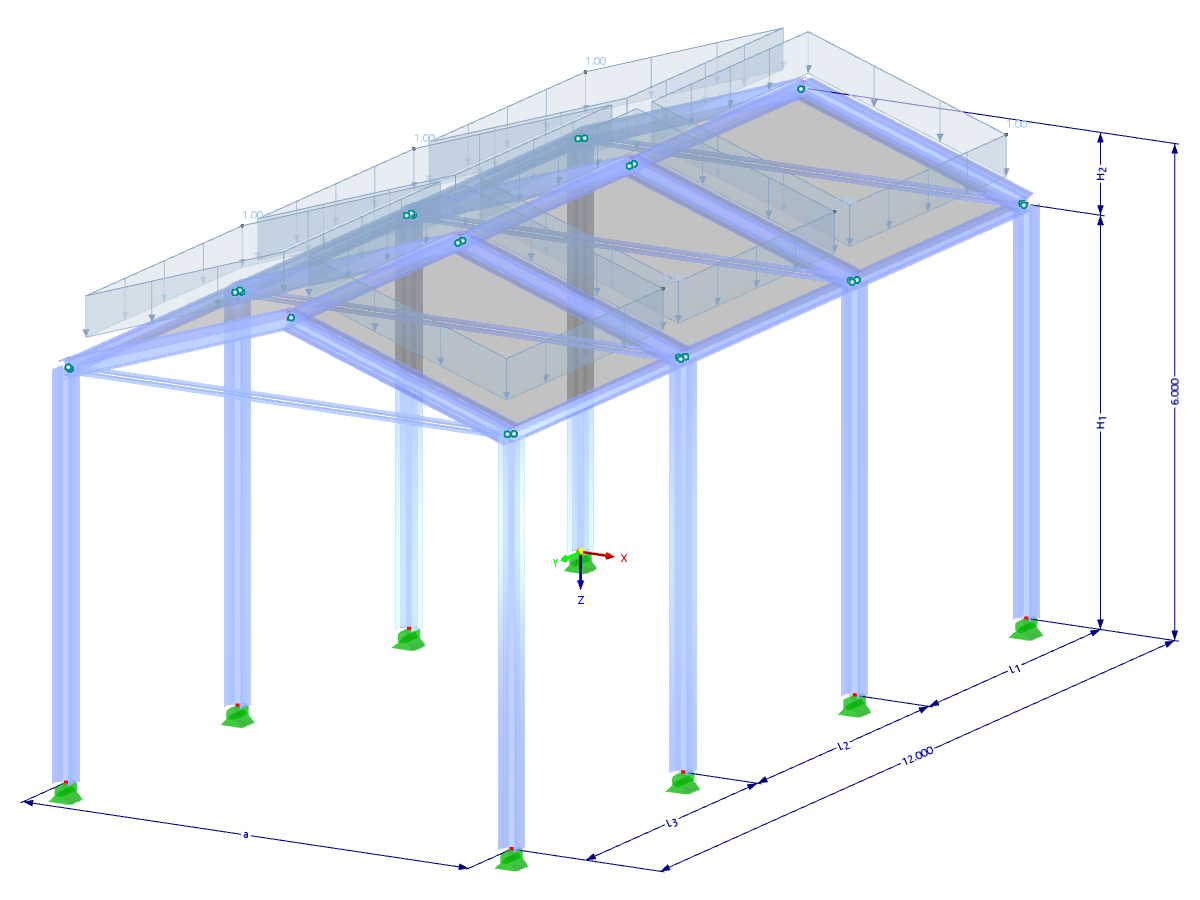

Model 001484 | Hall | Multi-Bay Hall | Frame Bent with Tie with Parameters
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 20 |
| Number of Lines | 29 |
| Number of Members | 29 |
| Number of Surfaces | 6 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 3 |
| Number of Result Combinations | 1 |
| Total Weight | 7.719 tons |
| Dimensions (Metric) | 6,000 x 6,000 x 12,000 m |
| Dimensions (Imperial) | 19.69 x 19.69 x 39.37 feet |
