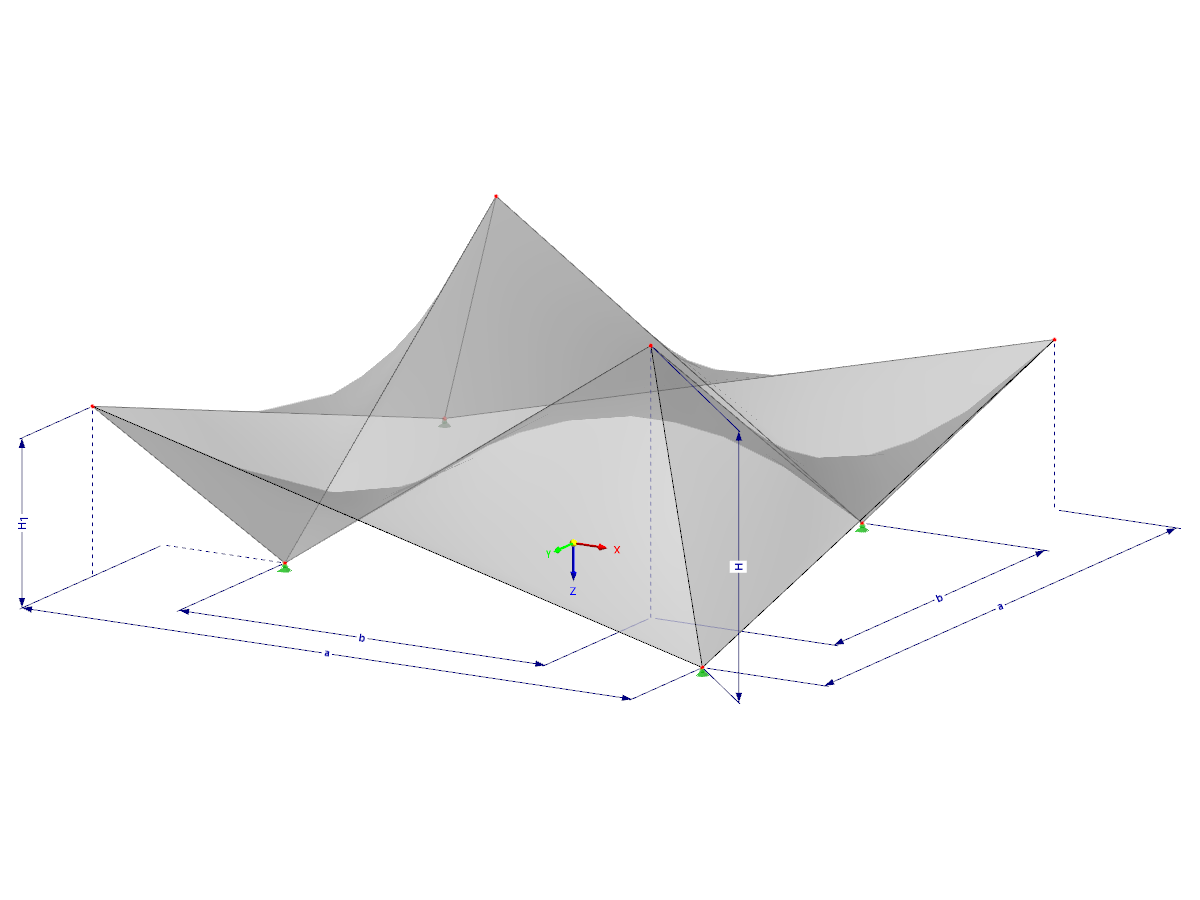

SHH041-a | Anticlastic Shells | Systems of Defining Space With Straight Edged "Hypar" Surfaces | Five "Hypar" Surfaces over Square Plan with Parameters
Model 002113 | SHH041-a | Anticlastic Shells | Systems of Defining Space With Straight Edged "Hypar" Surfaces | Five "Hypar" Surfaces over Square Plan with Parameters
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 5 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 132.824 tons |
| Dimensions (Metric) | 20.000 x 8.000 x 20.000 m |
| Dimensions (Imperial) | 65.62 x 26.25 x 65.62 feet |
