TSR061 | Lattice Tower | Rectangular Plan | K-Diagonals Top & Intermediate Horizontals with Parameters

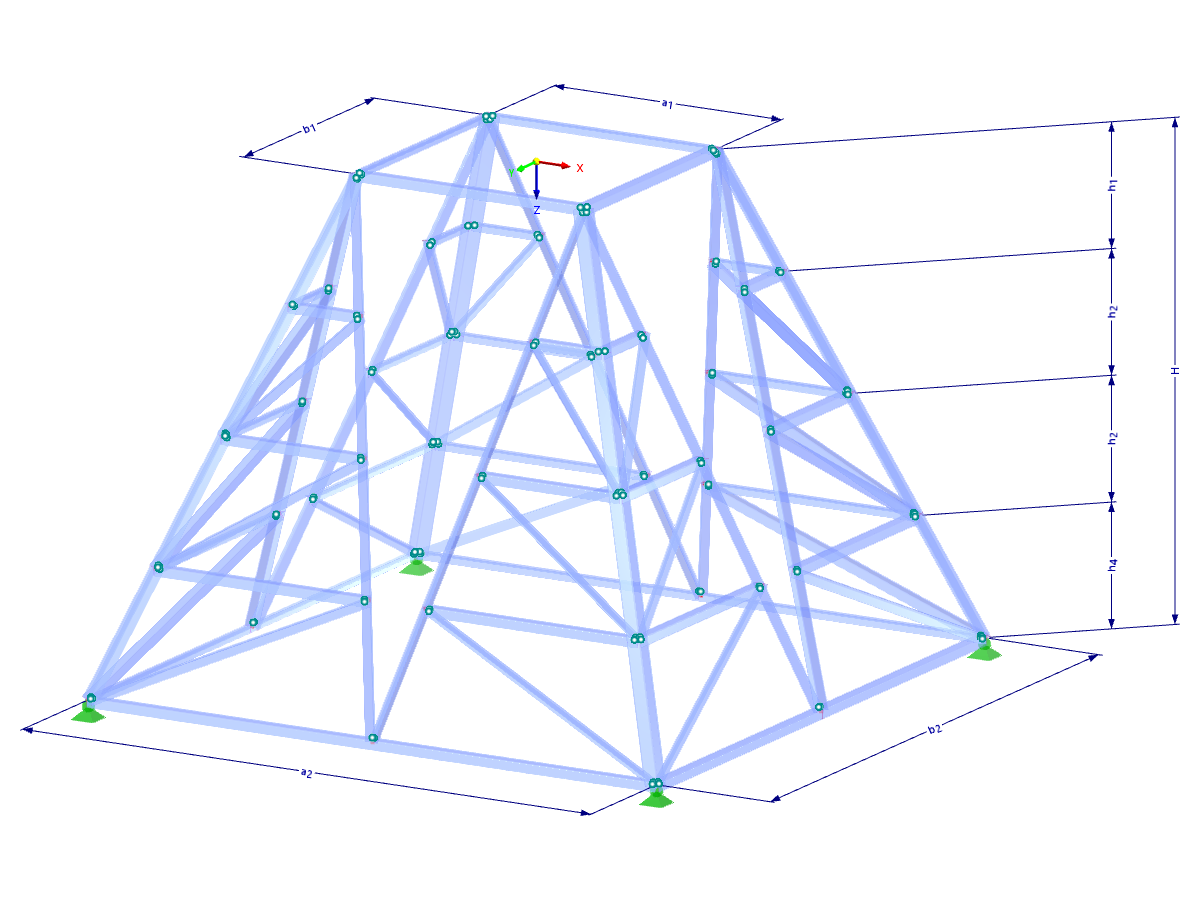

Model 002192 | TSR061 | Lattice Tower | Rectangular Plan | K-Diagonals Top & Intermediate Horizontals with Parameters
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 48 |
| Number of Lines | 108 |
| Number of Members | 108 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.743 tons |
| Dimensions (Metric) | 5,000 x 4,000 x 5,000 m |
| Dimensions (Imperial) | 16.4 x 13.12 x 16.4 feet |
