TSR063-b | Lattice Tower | Rectangular Plan | K-Diagonals Top & Bottom (Interconnected) & Horizontals with Parameters

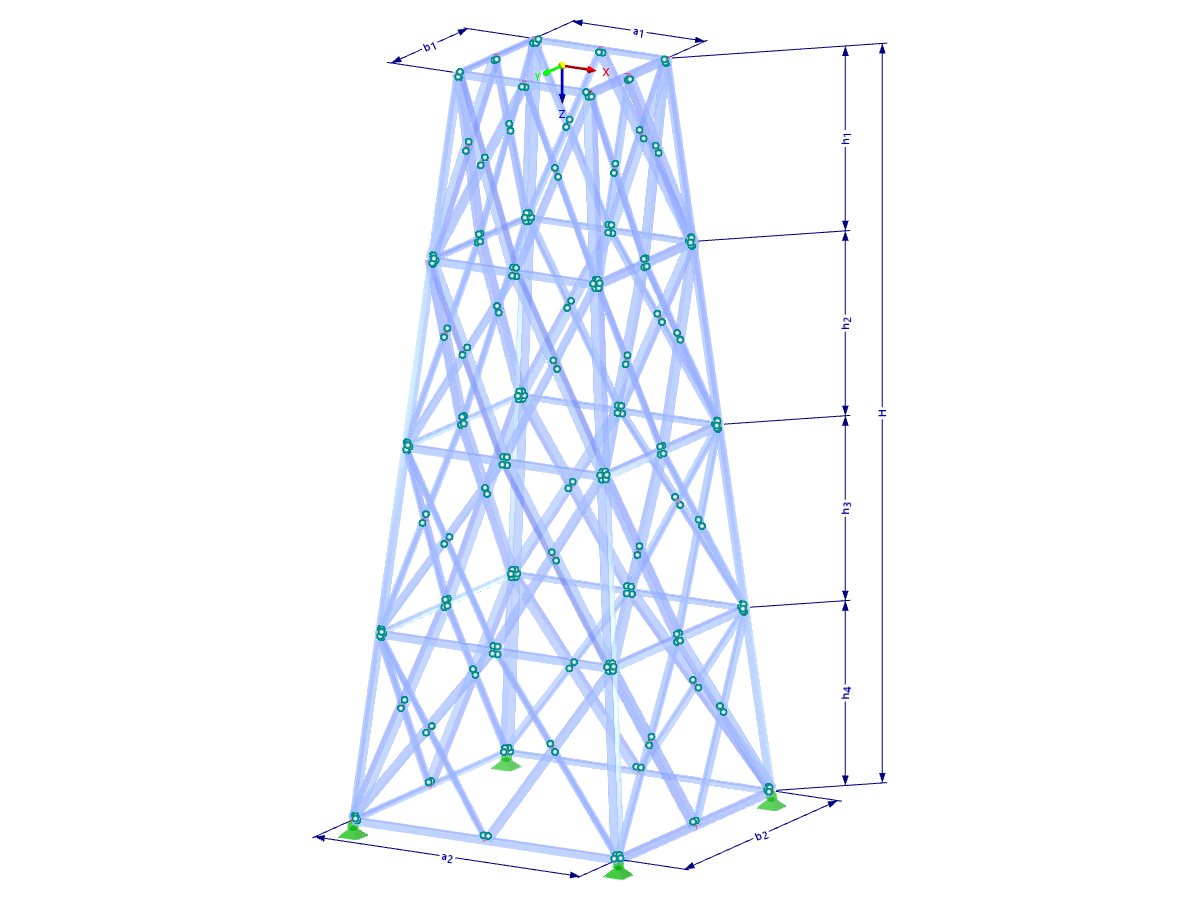

Model 002197 | TSR063-b | Lattice Tower | Rectangular Plan | K-Diagonals Top & Bottom (Interconnected) & Horizontals with Parameters
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 72 |
| Number of Lines | 184 |
| Number of Members | 184 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 4.278 tons |
| Dimensions (Metric) | 4,000 x 10,000 x 4,000 m |
| Dimensions (Imperial) | 13.12 x 32.81 x 13.12 feet |
