2024-03-10
038349

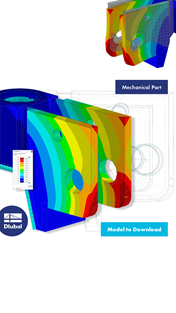

New Structural Analysis Model to Download | Mechanical Part
Mechanical Part | Structural Analysis Model
3D Model
Specifications
| Number of Nodes | 145 |
| Number of Lines | 212 |
| Number of Members | 5 |
| Number of Surfaces | 90 |
| Number of Solids | 8 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.002 tons |
| Dimensions (Metric) | 0.115 x 0.115 x 0.150 m |
| Dimensions (Imperial) | 0.38 x 0.38 x 0.49 feet |
