Trapezoidal Combined Footing

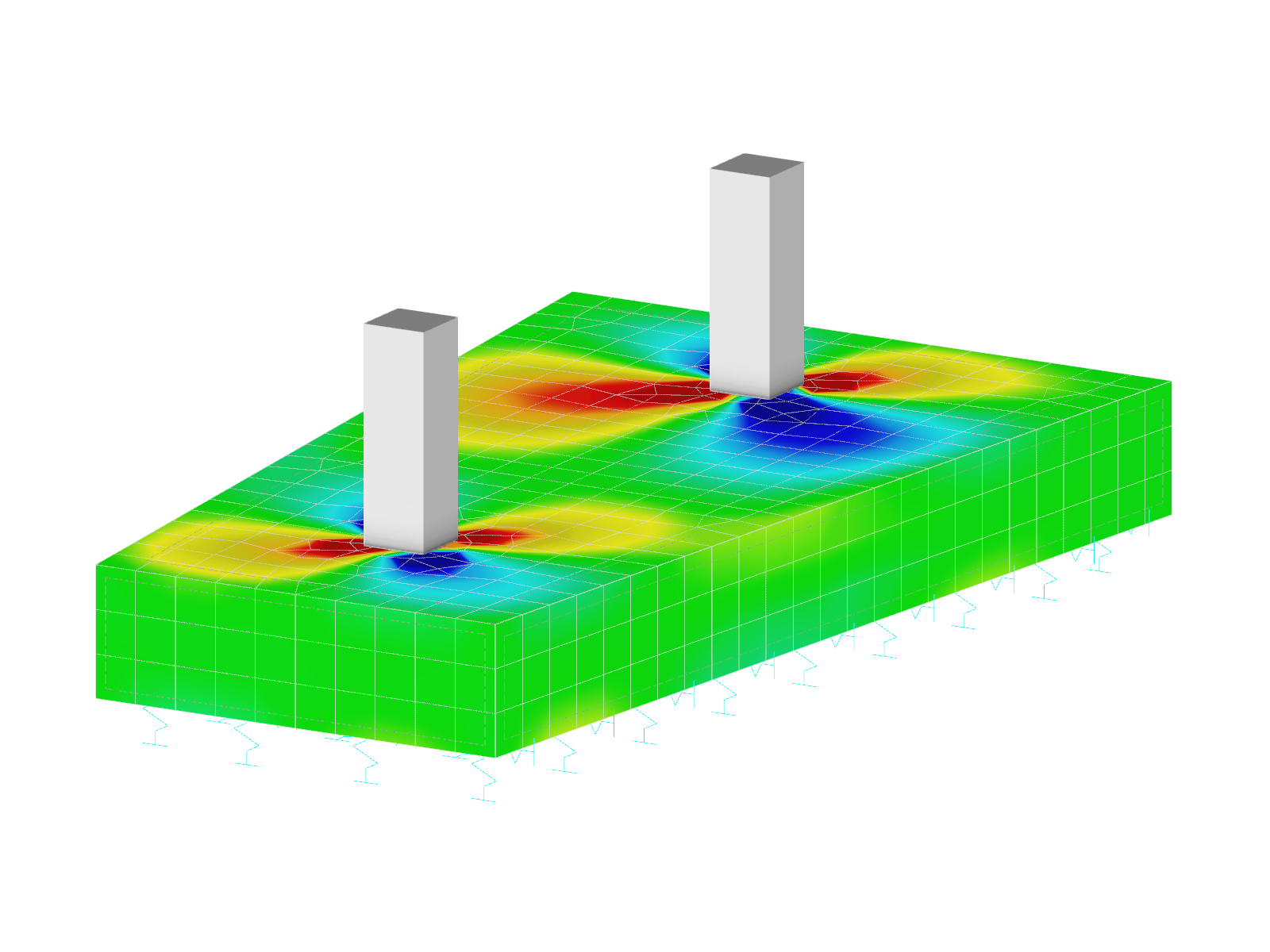

Combined Footing
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 12 |
| Number of Lines | 14 |
| Number of Members | 2 |
| Number of Surfaces | 6 |
| Number of Solids | 1 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 17.300 tons |
| Dimensions (Metric) | 3.000 x 1.600 x 5.000 m |
| Dimensions (Imperial) | 9.84 x 5.25 x 16.4 feet |
