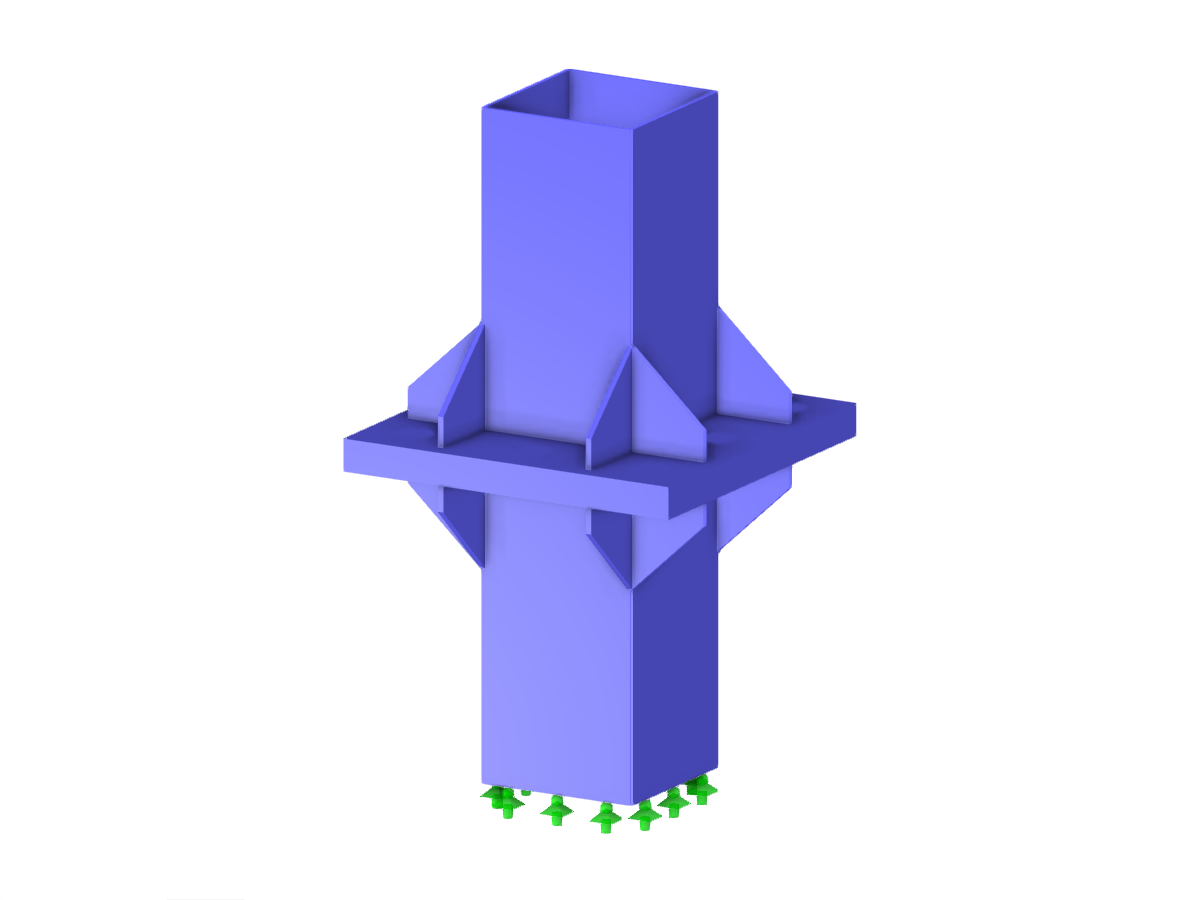

Model 004012 | Rectangular Cross-Section Bar Connection
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 96 |
| Number of Lines | 132 |
| Number of Members | 8 |
| Number of Surfaces | 62 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.075 tons |
| Dimensions (Metric) | 1.100 x 2.050 x 1.100 m |
| Dimensions (Imperial) | 3.61 x 6.73 x 3.61 feet |
