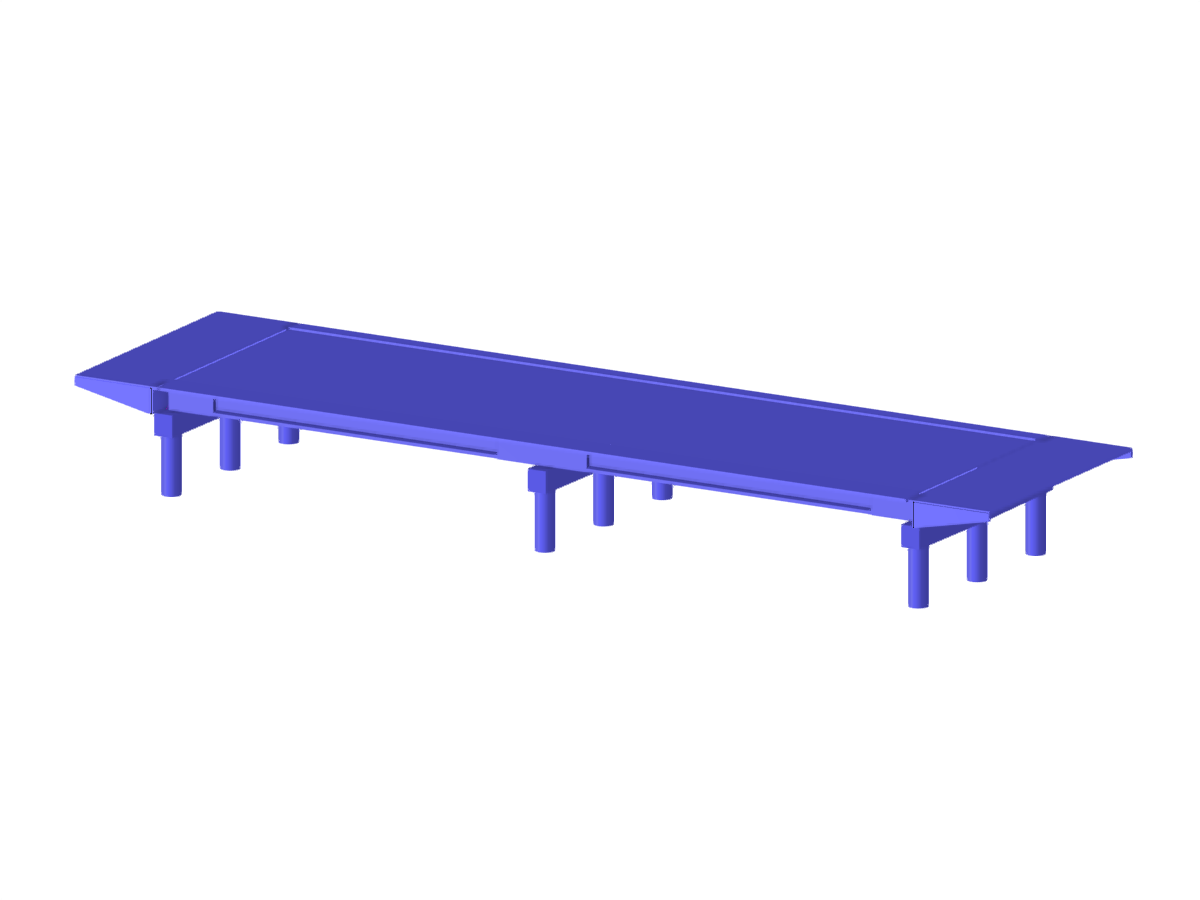

Model 004014 | Post-Tensioned Concrete Bridge
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 204 |
| Number of Lines | 213 |
| Number of Members | 86 |
| Number of Surfaces | 46 |
| Number of Solids | 0 |
| Number of Load Cases | 18 |
| Number of Load Combinations | 21 |
| Number of Result Combinations | 3 |
| Total Weight | 1468.566 tons |
| Dimensions (Metric) | 61.200 x 6.650 x 16.500 m |
| Dimensions (Imperial) | 200.79 x 21.82 x 54.13 feet |
