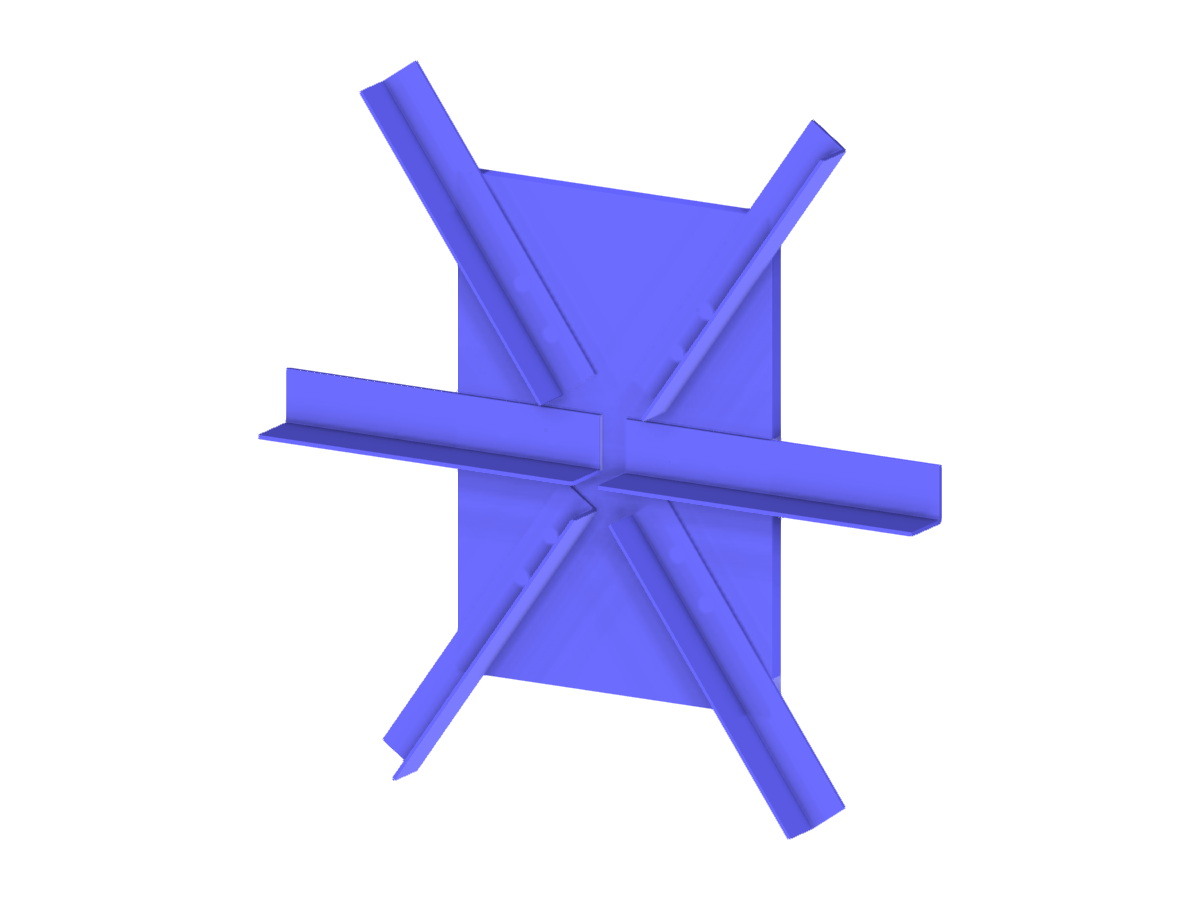

Model 004035 | Angle Profile Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 149 |
| Number of Lines | 196 |
| Number of Members | 12 |
| Number of Surfaces | 101 |
| Number of Solids | 6 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 2 |
| Total Weight | 0.072 tons |
| Dimensions (Metric) | 1.040 x 1.012 x 0.095 m |
| Dimensions (Imperial) | 3.41 x 3.32 x 0.31 feet |
