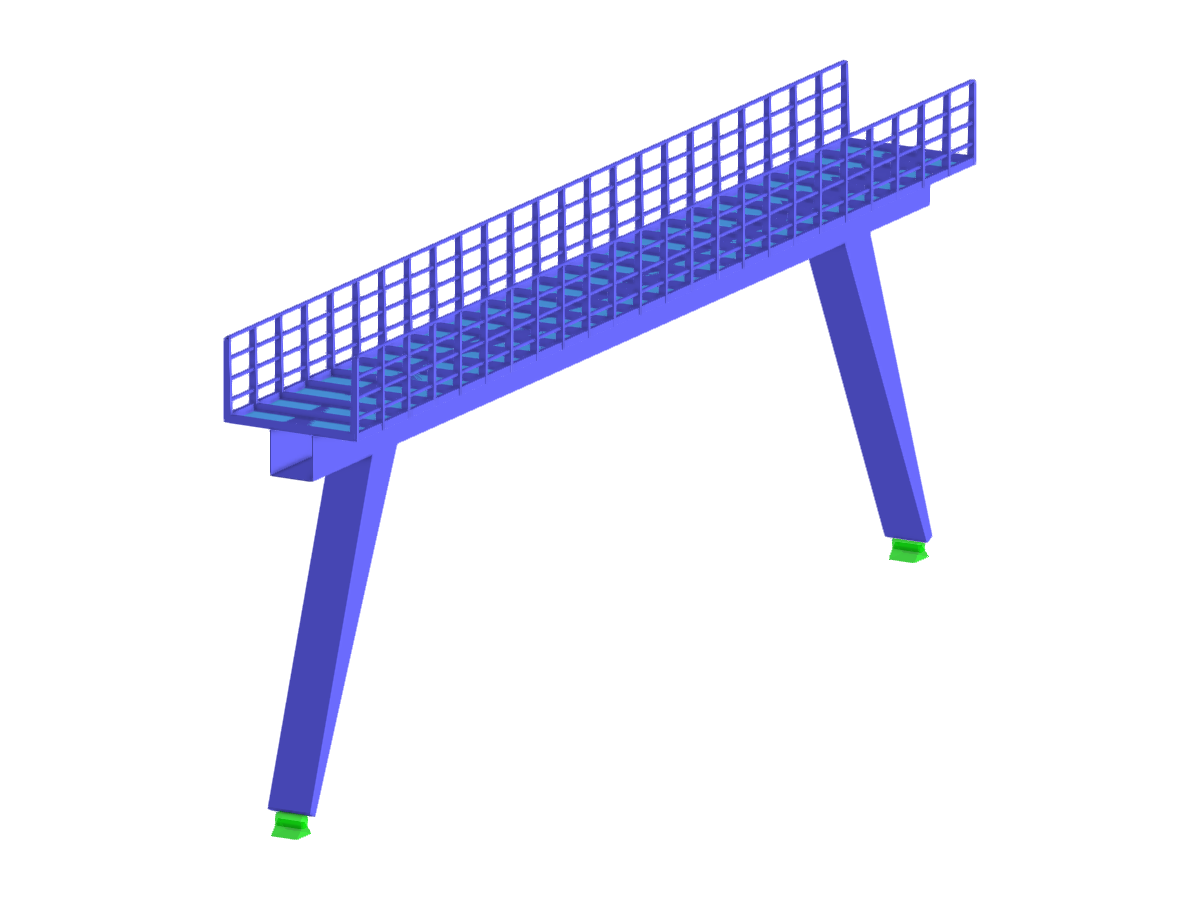

Model 004040 | Steel Pedestrian Bridge
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 302 |
| Number of Lines | 343 |
| Number of Members | 343 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 11.758 tons |
| Dimensions (Metric) | 20.000 x 7.800 x 2.400 m |
| Dimensions (Imperial) | 65.62 x 25.59 x 7.87 feet |
