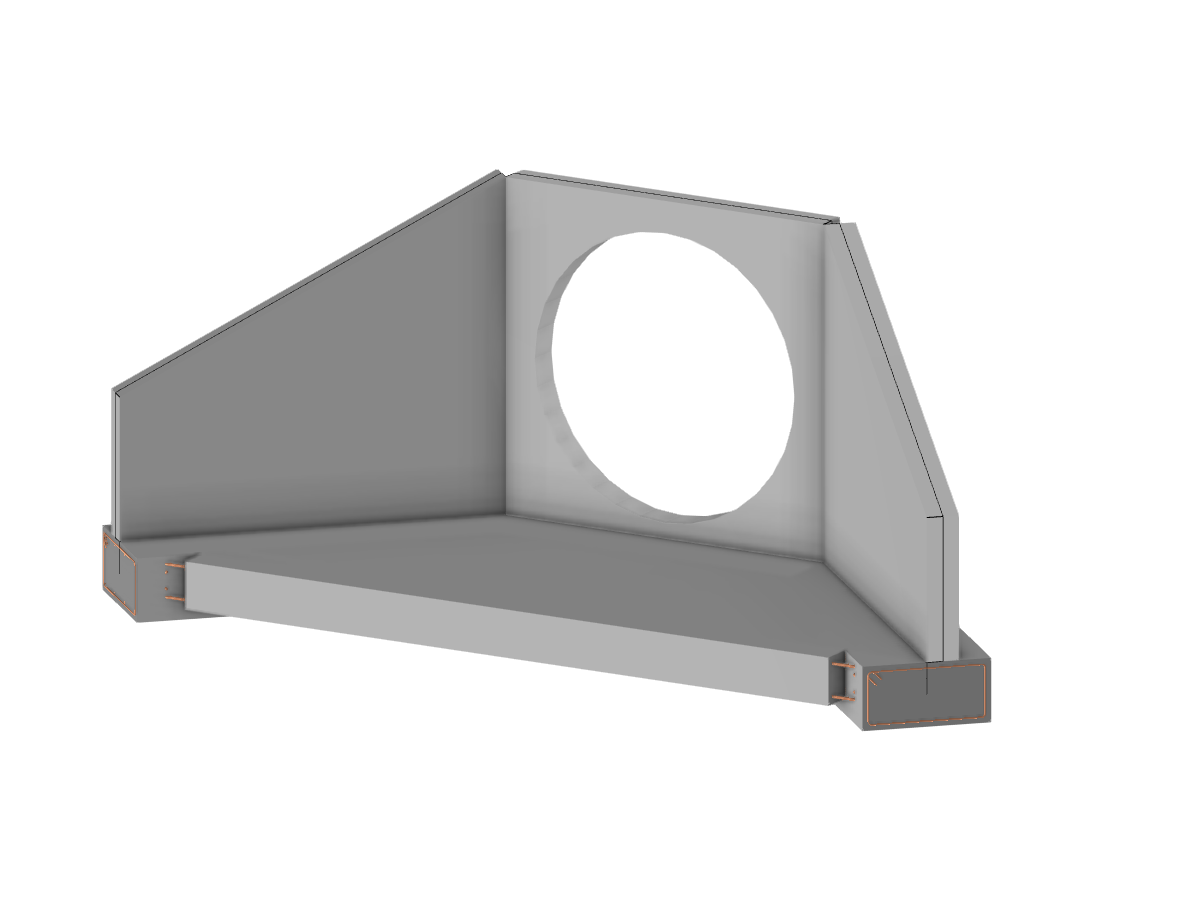

Model 004046 | Pipe Culvert Head
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 9 |
| Number of Lines | 12 |
| Number of Members | 4 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 13.732 tons |
| Dimensions (Metric) | 5.594 x 2.100 x 1.697 m |
| Dimensions (Imperial) | 18.35 x 6.89 x 5.57 feet |
