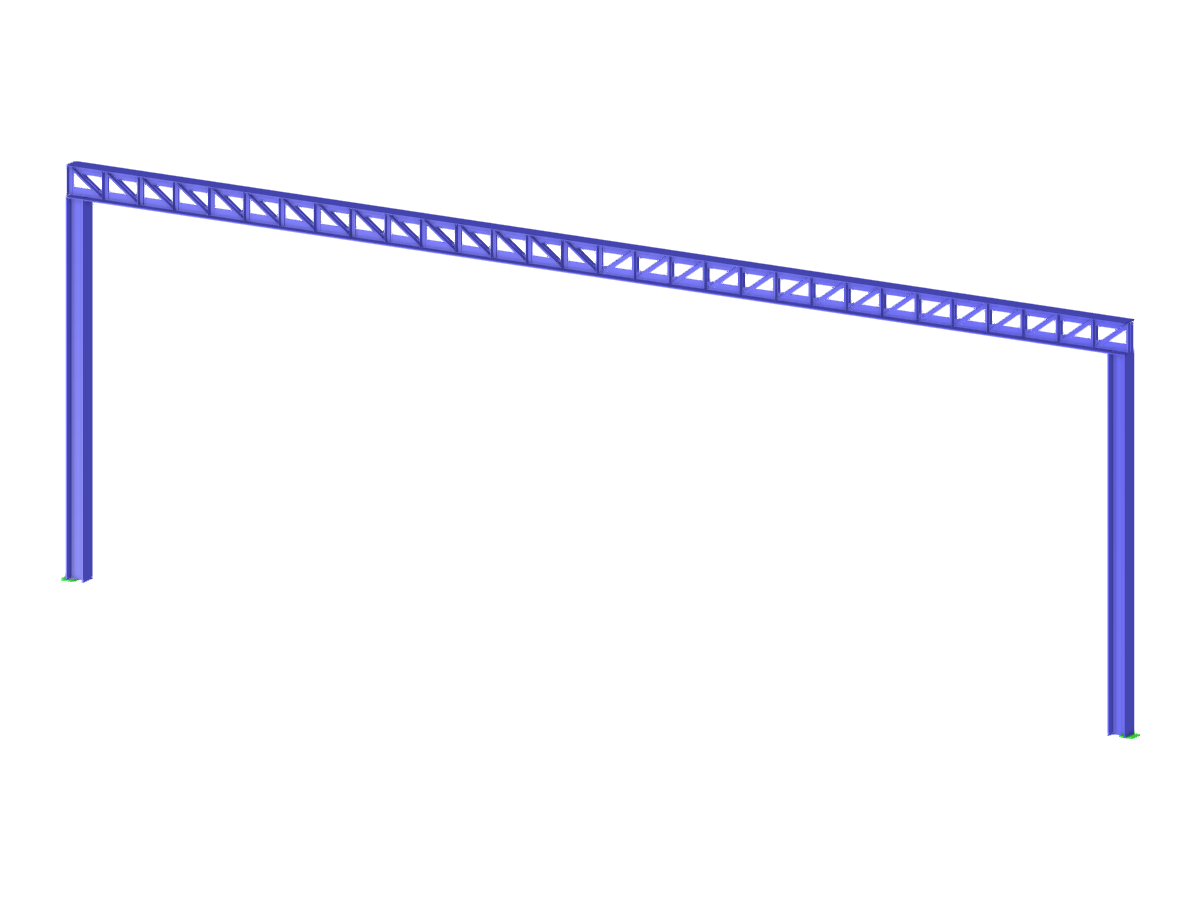

Model 004063 | Portal Frame with Lattice Girder
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 64 |
| Number of Lines | 67 |
| Number of Members | 67 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 5.134 tons |
| Dimensions (Metric) | 20.000 x 7.000 x 0.000 m |
| Dimensions (Imperial) | 65.62 x 22.97 x 0 feet |
