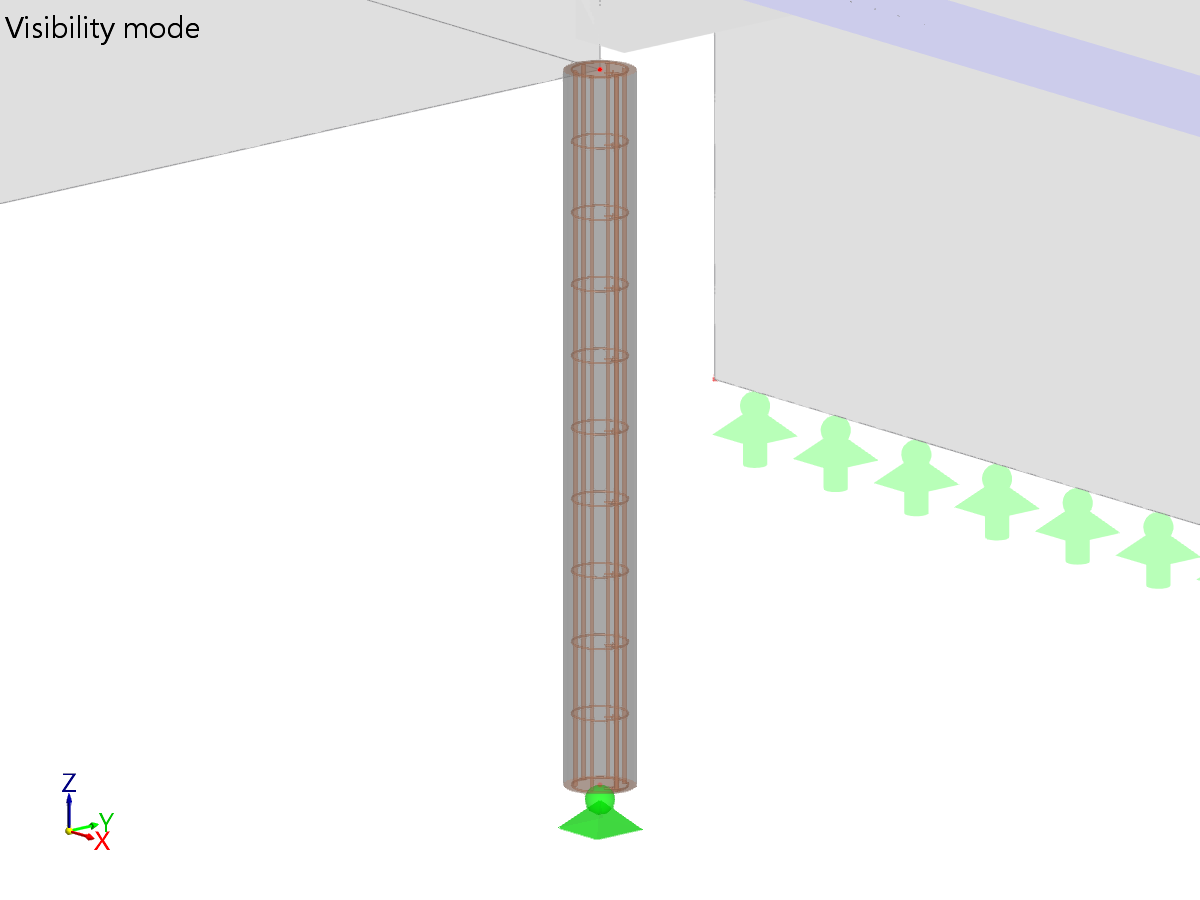

Moment Interaction Diagram - Example Model
3D Model
Specifications
| Number of Nodes | 22 |
| Number of Lines | 26 |
| Number of Members | 9 |
| Number of Surfaces | 6 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 16 |
| Number of Result Combinations | 0 |
| Total Weight | 44.650 tons |
| Dimensions (Metric) | 9.144 x 3.658 x 9.144 m |
| Dimensions (Imperial) | 30 x 12 x 30 feet |
