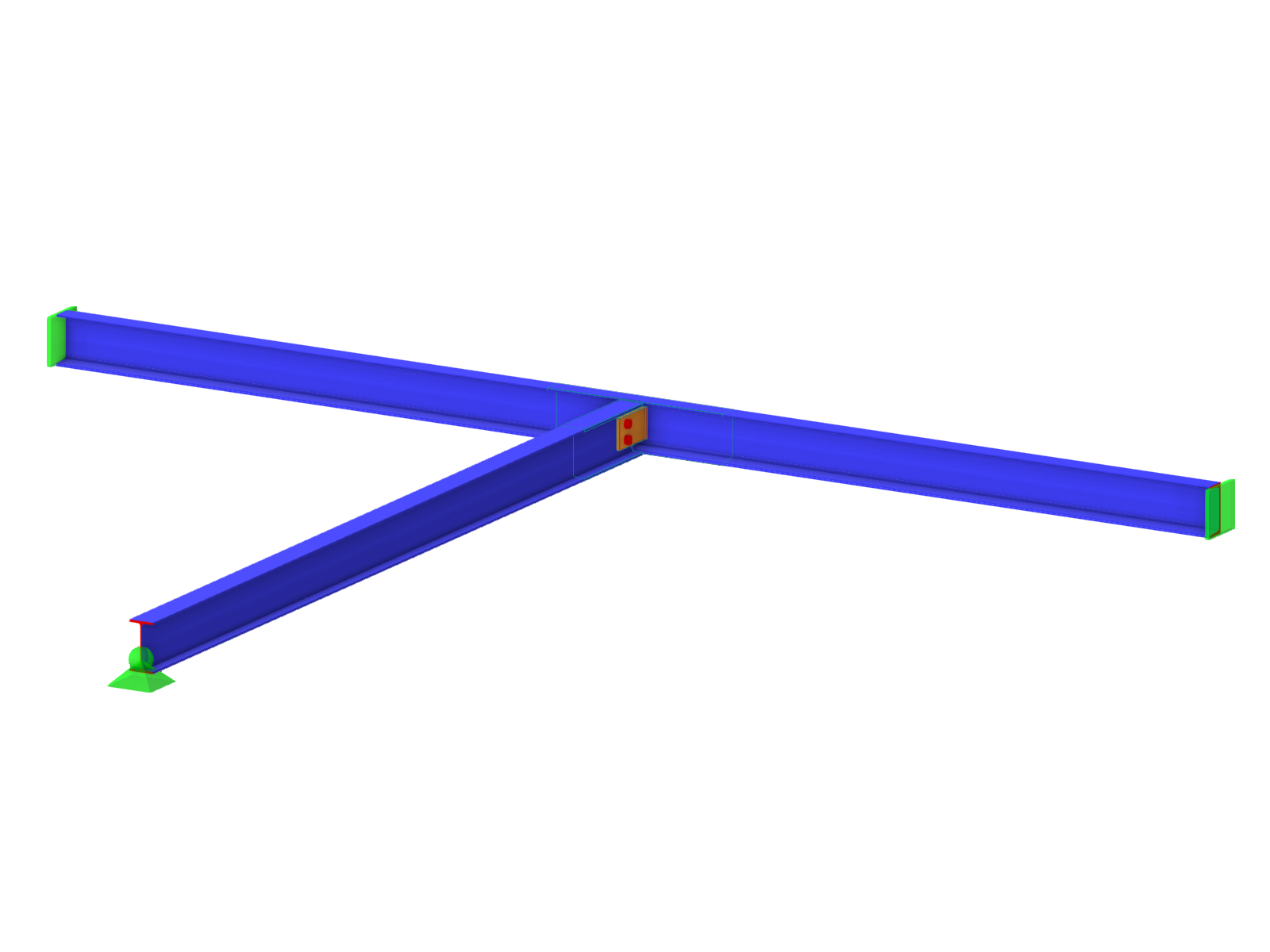

Fin Plate Connection with 1 Bolt Row
Steel Joint
Used in
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.123 tons |
| Dimensions (Metric) | 4,000 x 0,000 x 3,000 m |
| Dimensions (Imperial) | 13.12 x 0 x 9.84 feet |
