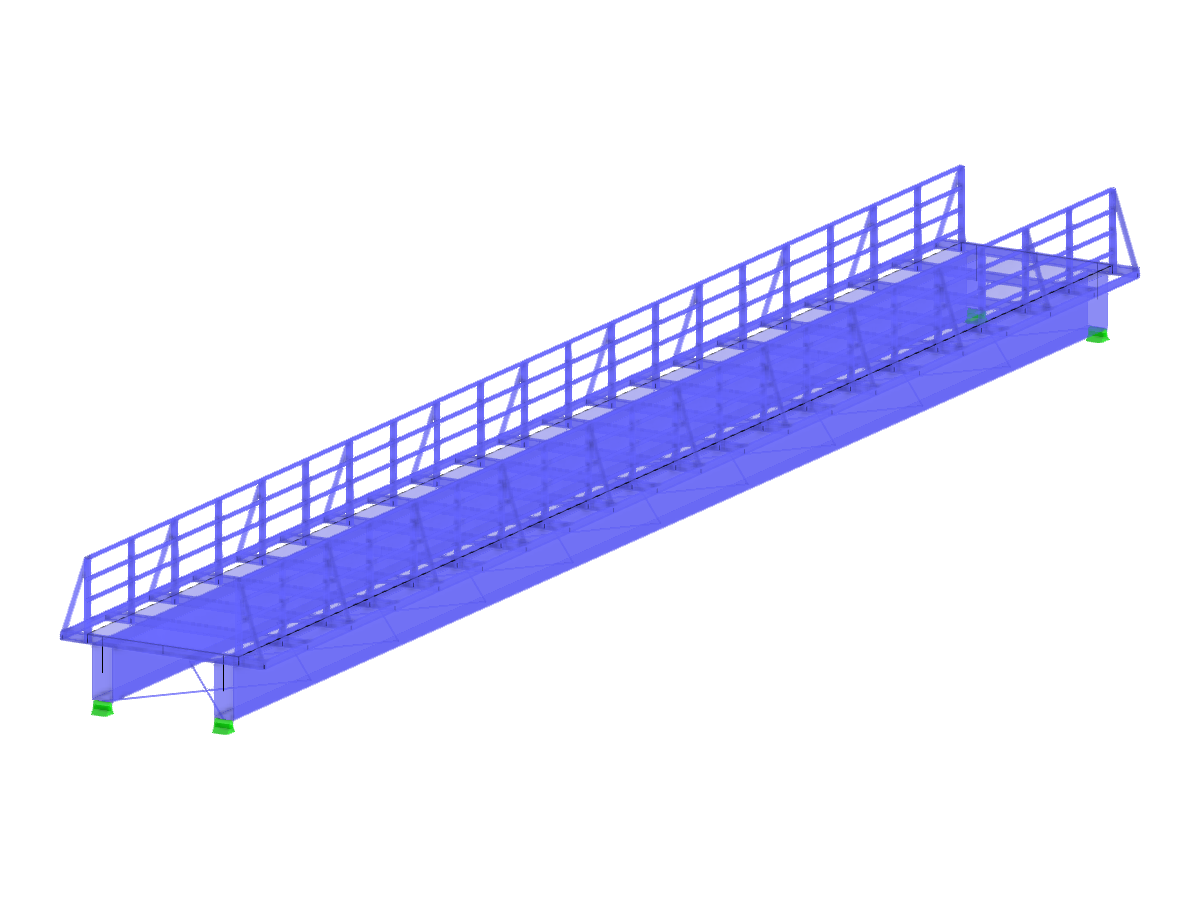

Model 004142 | Pedestrian Truss Bridge
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 337 |
| Number of Lines | 298 |
| Number of Members | 295 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 38.309 tons |
| Dimensions (Metric) | 30.000 x 2.500 x 4.000 m |
| Dimensions (Imperial) | 98.43 x 8.2 x 13.12 feet |
