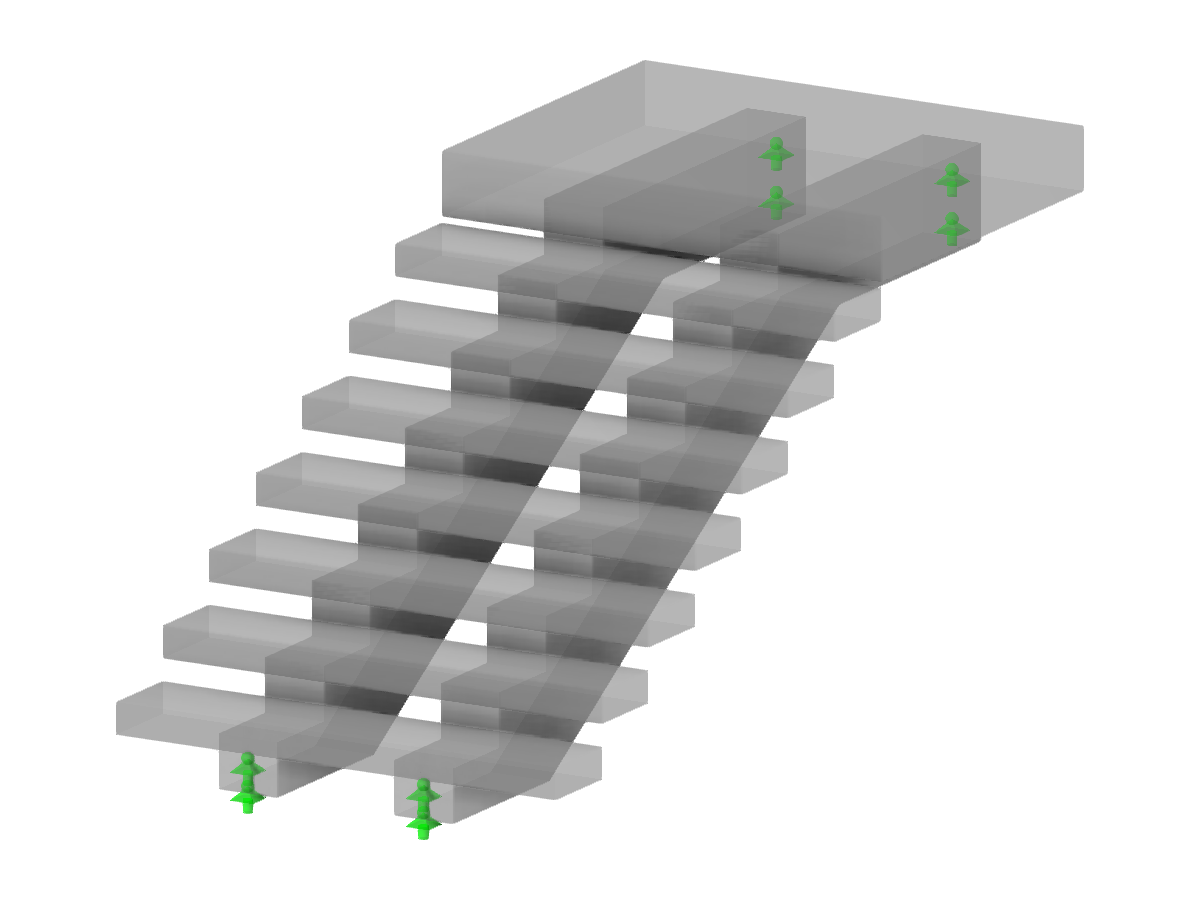

Concrete Staircase with Twin Spine Beam

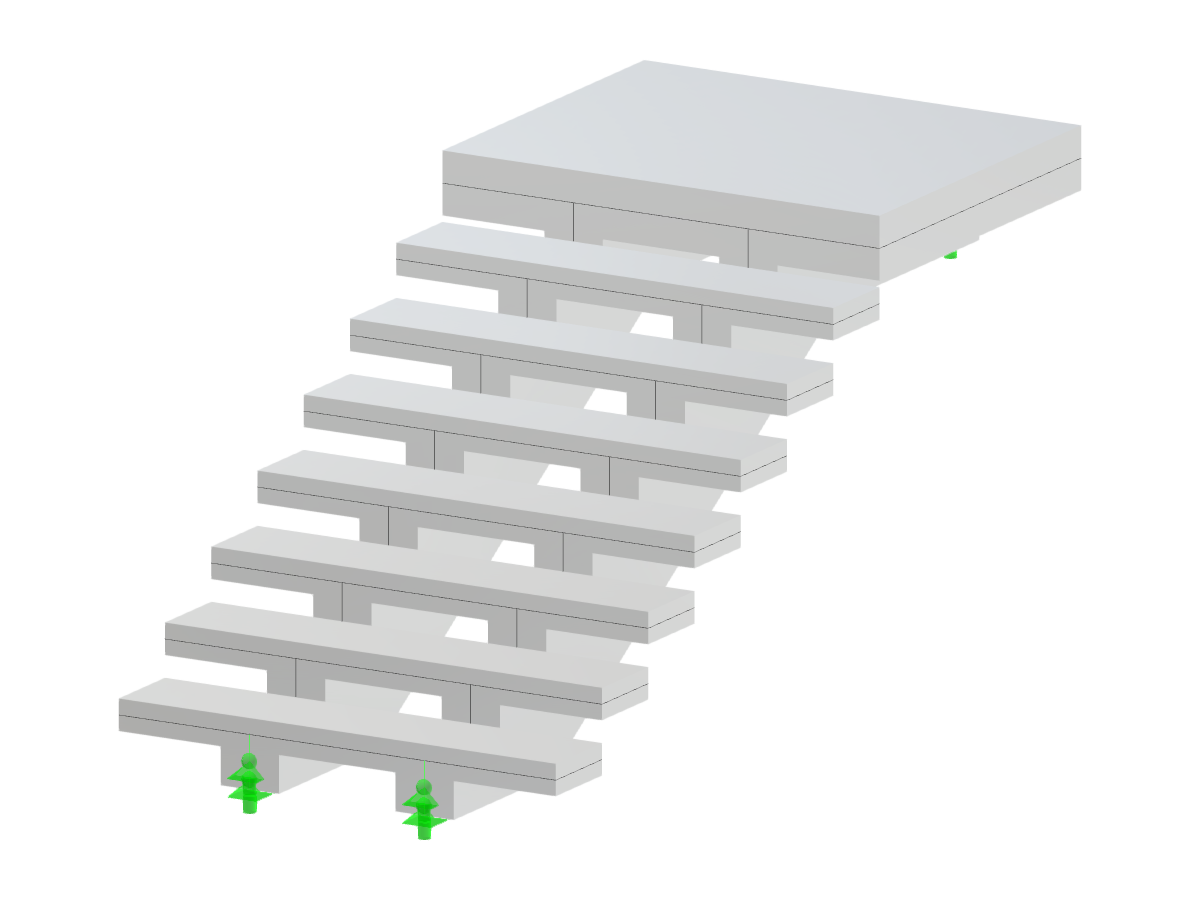

Concrete single-flight staircase with twin spine beam providing support and stability.
This image showcases a concrete single-flight staircase supported by a twin spine beam. The beam runs underneath the staircase treads, effectively anchoring to the surrounding structure. This design ensures both stability and structural support for the staircase, enhancing its durability and functionality. The configuration is typical in modern staircase engineering for its efficient load distribution.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 72 |
| Number of Lines | 72 |
| Number of Members | 0 |
| Number of Surfaces | 10 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.764 tons |
| Dimensions (Metric) | 1.500 x 1.360 x 3.125 m |
| Dimensions (Imperial) | 4.92 x 4.46 x 10.25 feet |
