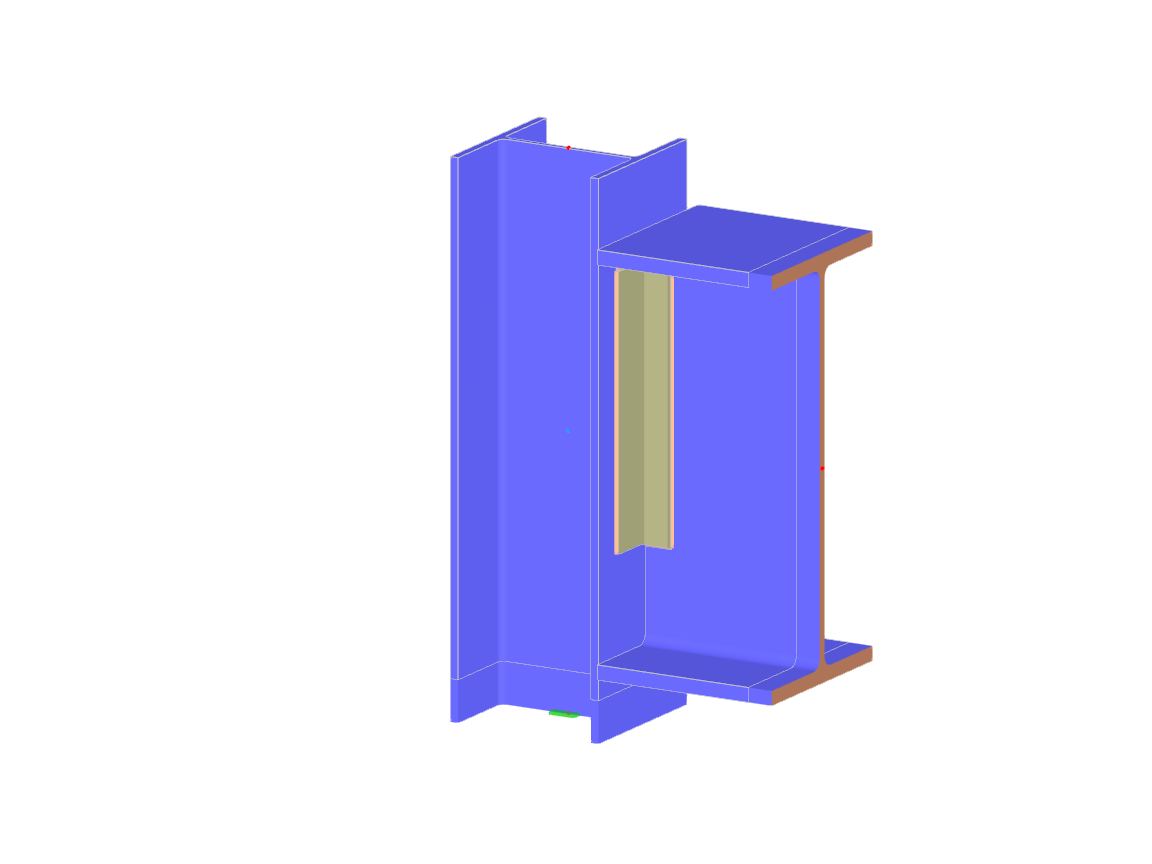

Model 004182 | AISC Double-Angle Connection
3D Model
Specifications
| Number of Nodes | 8 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 0.625 tons |
| Dimensions (Metric) | 2.134 x 1.219 x 0.000 m |
| Dimensions (Imperial) | 7 x 4 x 0 feet |
