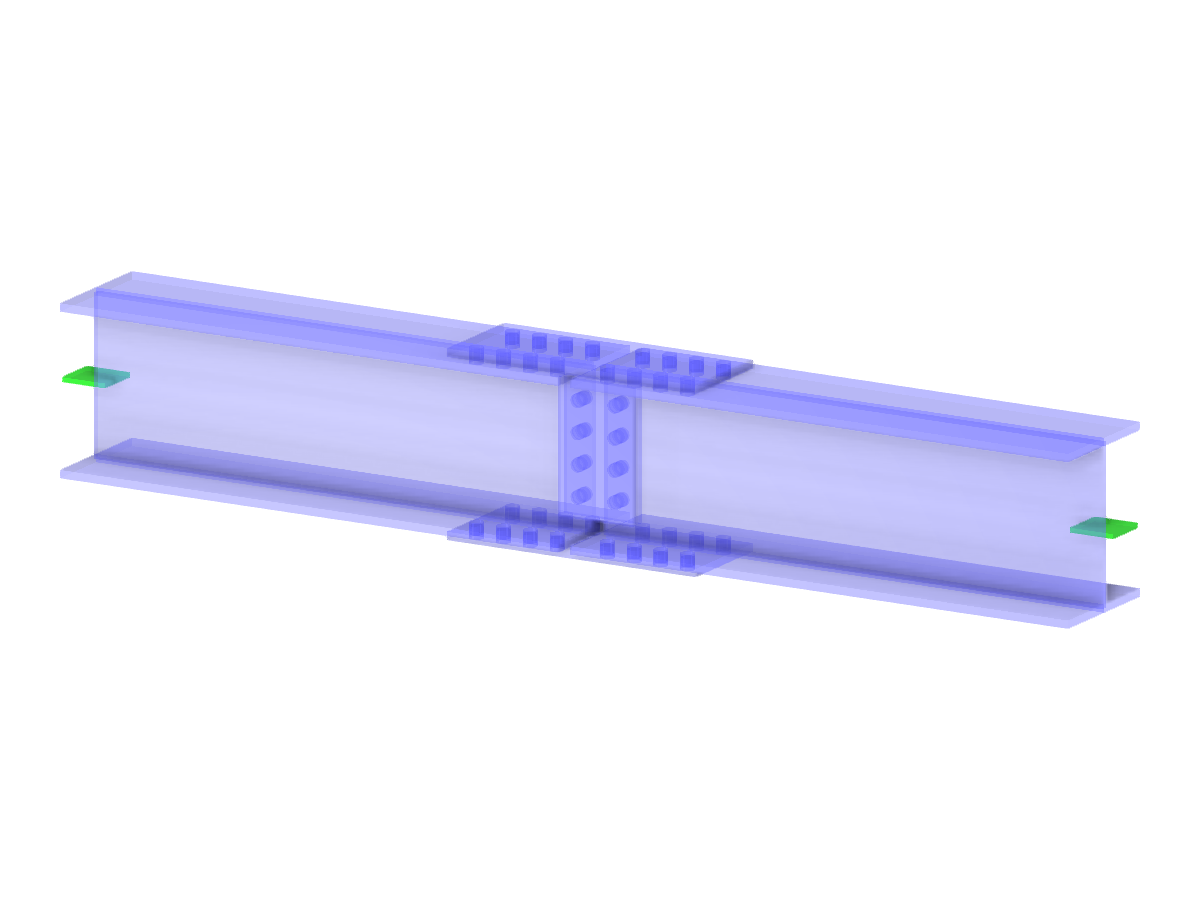

Model 004194 | I-Section Connection with Reinforcement
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 218 |
| Number of Lines | 188 |
| Number of Members | 48 |
| Number of Surfaces | 96 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 5 |
| Number of Result Combinations | 0 |
| Total Weight | 1.665 tons |
| Dimensions (Metric) | 4.050 x 0.660 x 0.500 m |
| Dimensions (Imperial) | 13.29 x 2.17 x 1.64 feet |
